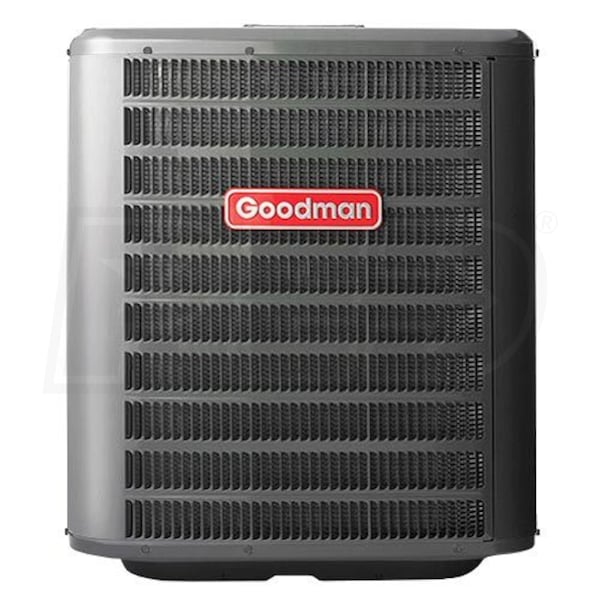

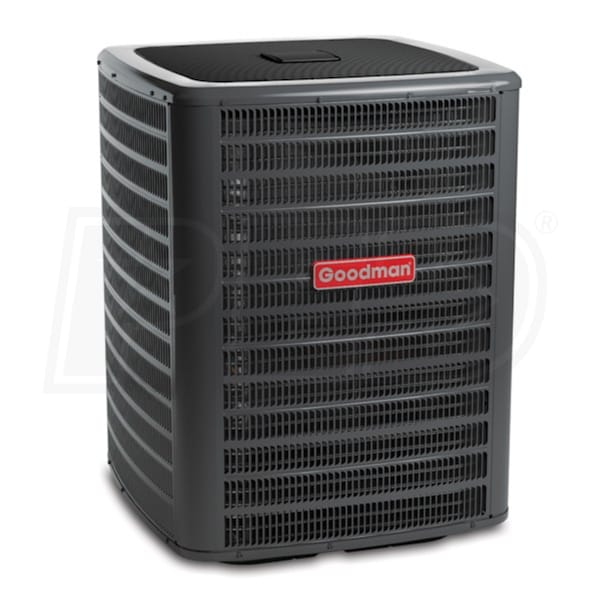

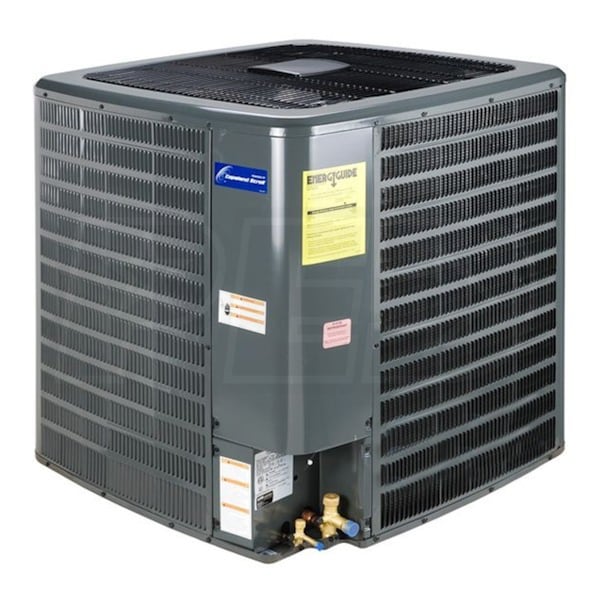

Goodman GSZC16 - 3 Ton - Heat Pump - 16 Nominal SEER - Two-Stage - R-410A Refrigerant
Model:
GSZC160361
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Model: CLS387838-25
Length (ft)
$265.00
In-Stock
Optional Accessories
4
Model: UC3636-3
$72.00
In-Stock
$94.00
In-Stock
Model: OT18-60A
$88.00
$59.00
In-Stock
Features
- Quiet Comfort
- R-410A chlorine-free refrigerant
- The wire fan discharge grille and condenser fan motor of the GSZC160361 were designed to reduce noise levels without compromising performance. A discharge muffler and a foam sound blanket reduce vibrational and compressor noise, respectively.
- Two-Stage Copeland® UltraTech scroll compressor
- Filter Drier
- High-density foam compressor sound blanket
- A biflow filter drier is installed in the liquid line of the heat pump. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.
- ComfortNet Communicating System compatible
- Secure Cabinet
- Expanded ComfortAlert diagnostics built in
- Set-up capable with two low-voltage wires to outdoor unit
- The cabinet of the GSZC160361 is built to last. Galvanized steel construction, a durable powder paint finish, rust-resistant screws, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
- SmartShift
- Diagnostic indicator lights and storage of six fault codes
- Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
- Color-coded terminal strip for non-communicating set-up
- SmartShift technology to ensure quiet, reliable defrost
- UltraTech Compressor
- Factory-installed bi-flow liquid line filter drier
- A two-stage Copeland UltraTech scroll compressor provides the GSZC160361 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
- Factory-installed suction line accumulator
- Compressor Protection
- Goodman installed two layers of compressor protection in the GSZC160361. A suction accumulator collects excess refrigerant, while a crankcase heater ensures that the compressor stays well-oiled by maintaining a temperature that limits oil migration.
- Factory-installed compressor crankcase heater
- ComfortAlert
- Factory-installed high-capacity muffler
- The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the heat pump.
- Factory-installed coil and ambient temperature sensors
- ComfortBridge Compatible
- High- and low-pressure switches
- This heat pump is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control shortens the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.
- Charged for up to 15' of tubing length
- Extended Warranty
- Two-speed quiet condenser fan motor
- Sweat connection service valves with easy access to gauge ports
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
- AHRI Certified; ETL Listed
- Wire fan discharge grille
- Steel louver coil guard
- Baked-on powder paint finish
- Rust-resistant coated screws
- Compact footprint
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
- Our SKU number(s): Goodman DSZC160361
- The manufacturer model number(s): Goodman DSZC160361
Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GSZC16 heat pump is an incredibly efficient heating and cooling solution. With a nominal SEER rating of 16 and a minimum HSPF of 8.5, you can count on low energy usage regardless of the application. The savings don't stop at energy costs; the GSZC160361's design reduces installation and service times. It features a two-stage compressor to ensure steady comfort and includes advanced components that protect the coil and compressor for peace of mind and reliable operations. Become a heat pump household today, and enjoy efficient comfort from a single piece of equipment through all four seasons.
Product Note
The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GSZC160361
Overview
Product Category
Heat Pump
UPC
663051570559
General Information
Type
Heat Pump Condenser
Product Line
GSZC16
Product Category
Heat Pump
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
38 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
240 Pounds
Shipping Weight
266 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
