Model: 172-112-700
Size
$7.99
In-Stock
$94.00
In-Stock
Features
- EEM Motor
- The ACNF250816 has an EEM motor that is cost and energy efficient and can reduce operating costs. They also are not prone to overheating.
- SmartFrame
- The Smartframe substructure improves your air handler's lateral strength and creates a sturdy mounting framework for the internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise.
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Galvanized-Steel Construction
- Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
- Easy Installation
- The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF air handler works with the multi-speed EEM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ACNF250816
Overview
Product Category
Air Handler
UPC
663051545243
General Information
Type
Air Handler
Product Line
ACNF
Product Category
Air Handler
Refrigerant Type
R-22/R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling Mounted
Installation Location
Indoor
Electric Heat
Yes
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Electric Heat Capacity
7.3 kW
Maximum Air Flow
955 CFM
Minimum Air Flow
885 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
38 Amps
Recommended Breaker Size
45 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
11 1/4 Inches
Product Width
43 1/4 Inches
Product Depth
6 1/2 Inches
Product Weight
69 Pounds
Shipping Weight
84 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Reviews
(1)
Goodman ACNF250816 Reviews & Ratings
Not very quiet
By Martin K.
Miami, Florida
Purchased 07/11/2016 |
Review Posted 08/06/2016
I was hoping that this unit would be quieter than the twenty-plus-year-old unit it replaced. It is a different and higher-pitched sound, but just as loud. I think this is caused by the rather thin galvanized blower fan covers which act like a drum in the moving air.
Also, I have not noticed any two-speed fan activity, which I thought would provide less noise in the low mode. This unit is only running two or three times an hour for as little as five minutes so it's not the end of the world, maybe it's only ever run on low, how can you tell.
I may try some sound dampening method. Finally, there does not seem to be a lot of these in-ceiling AHU's out there, but I would have spent more money on a quieter unit. This is summertime in Miami FL.
Also, I have not noticed any two-speed fan activity, which I thought would provide less noise in the low mode. This unit is only running two or three times an hour for as little as five minutes so it's not the end of the world, maybe it's only ever run on low, how can you tell.
I may try some sound dampening method. Finally, there does not seem to be a lot of these in-ceiling AHU's out there, but I would have spent more money on a quieter unit. This is summertime in Miami FL.
Martin K. Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
5/5
5/5
5/5
How-To Articles
How Central Air Conditioning Systems Work
Can you imagine life without air conditioning? Oppressive heat waves that can m...
How to Pick the Perfect Evaporator Coil & Air Handler
Evaporator coils and the refrigerant that flows through them are the veins and ...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

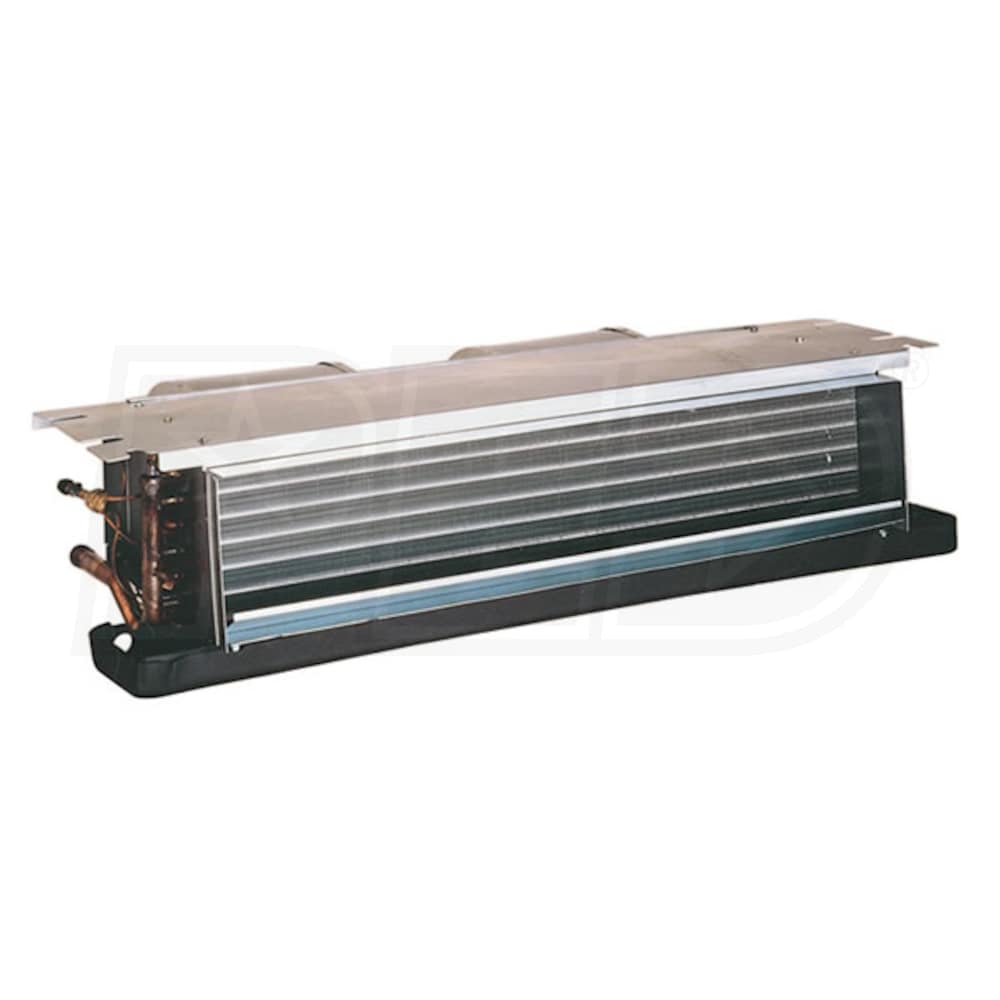

Goodman 2 Ton Air Conditioner Ceiling Mount Air Handler w/ 8 kW
