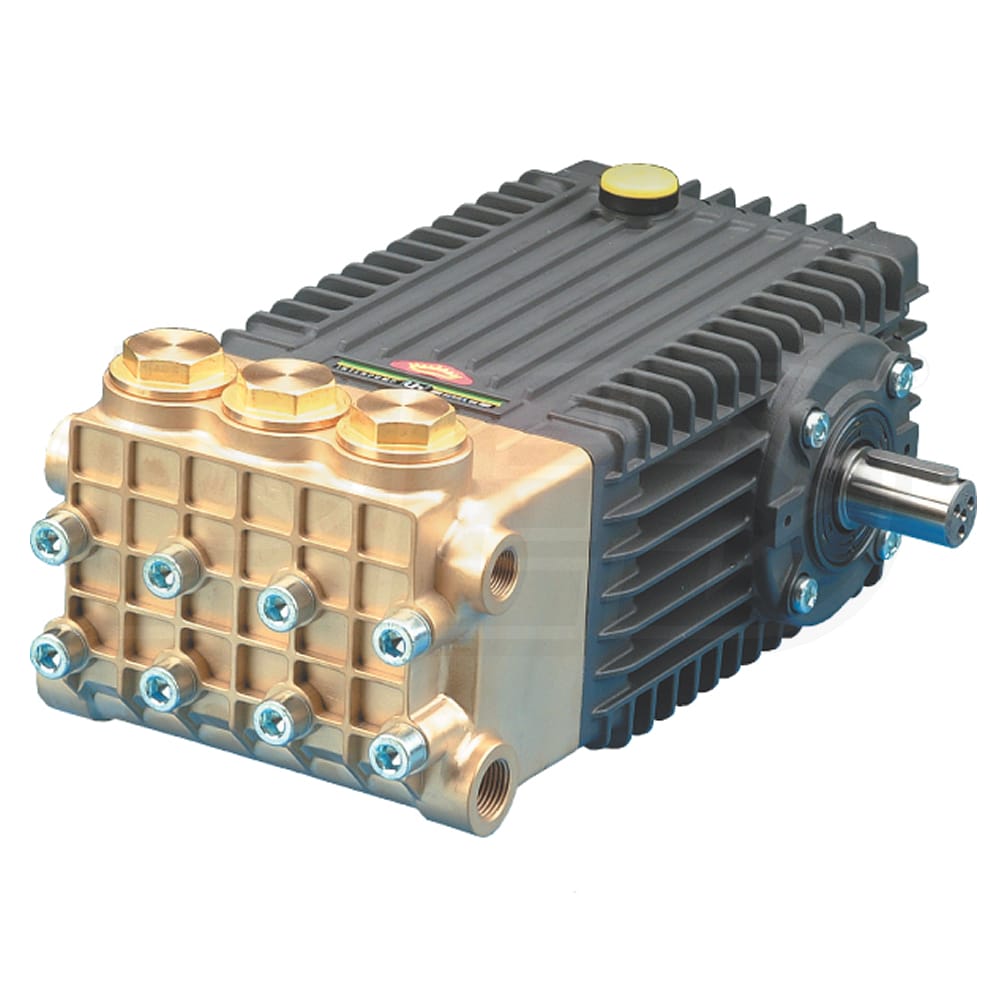

General Pump 66 Series 5100 PSI 5.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Model:

TSP1821

Write A Review
$1,200.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump 66 Series 5100 PSI 5.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
General Pump 66 Series 5100 PSI 5.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model: TSP1821
$1,200.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

  • High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
  • Solid ceramic plungers run cooler
  • Continuously lubricated packings last longer
  • Durable Components
  • Forged brass manifold lasts longer than cheaper models
  • Over-sized connecting rods for maximum life
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Unitized stainless steel inlet and discharge valves
  • 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
  • Inlet port thread 1/2" BSP-F
  • Discharge port thread 3/8" BSP-F
  • Plunger bore .709 in / 18 mm, plunger stroke .826 in / 21 mm
  • Crankcase oil capacity 37.2 ounces
  • Nickle plated for durability
  • Shaft Size Measurements Must Be Precise
  • Dimensions are in the Spec sheet download under the Specs tab
  • There is a 25% restock fee on returned pumps
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

TSP1821
specs product image PID-104349
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
51.8 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
13.8 Inches
Product Width
9.8 Inches
Product Height
7.7 Inches
Power Type
Gas
UPC
682491114727
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
5.5
Rated PSI
5100 PSI
Chemical Injections
Sold Separately
