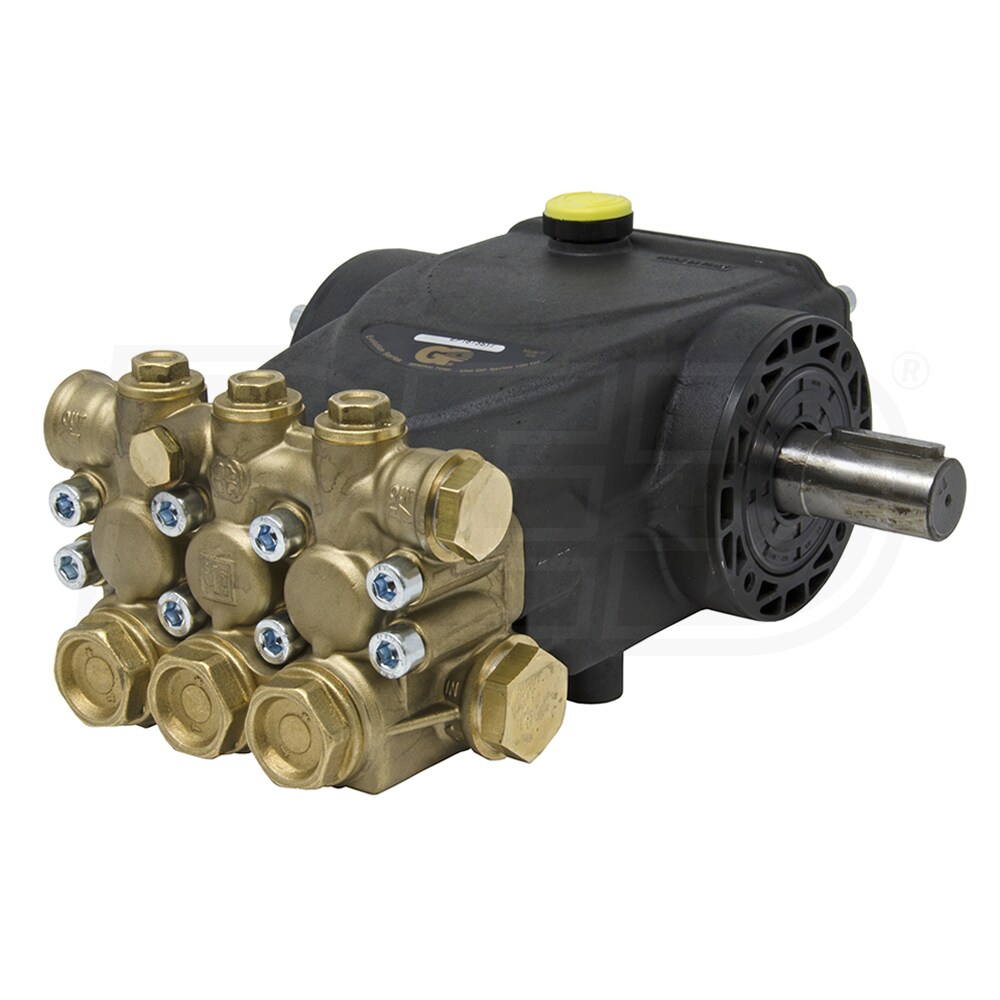

General Pump Evolution 2900 PSI 4.2 GPM 24mm Replacement Solid Shaft Triplex Plunger Pump (1750 RPM)

General Pump Evolution 2900 PSI 4.2 GPM 24mm Replacement Solid Shaft Triplex Plunger Pump (1750 RPM)
Model: EP1813S17
$269.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)
No Sales Tax* (Except IL)$269.00Buy Now
No Sales Tax* (Except IL)$269.00Visit Site
No Sales Tax* (Except IL)$269.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Female)
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Features
Features
  • Quality Replacement For Worn Out Pumps
  • New forged brass manifold increases working pressure to 4000 PSI
  • New Pump Design
  • Connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • Large 15 oz. oil capacity means better cooling & lubrication

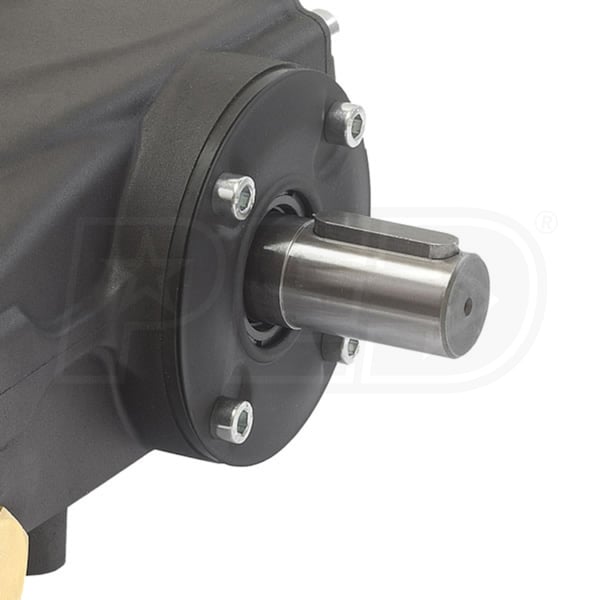

  • 24mm Solid Shaft
  • Maximum 2900 PSI, 4.2 gallons per minute, up to 165F; rated for gas engines up to 8.3 HP & 1750 RPM
  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • Shaft diameter .945 inches (24 mm)
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

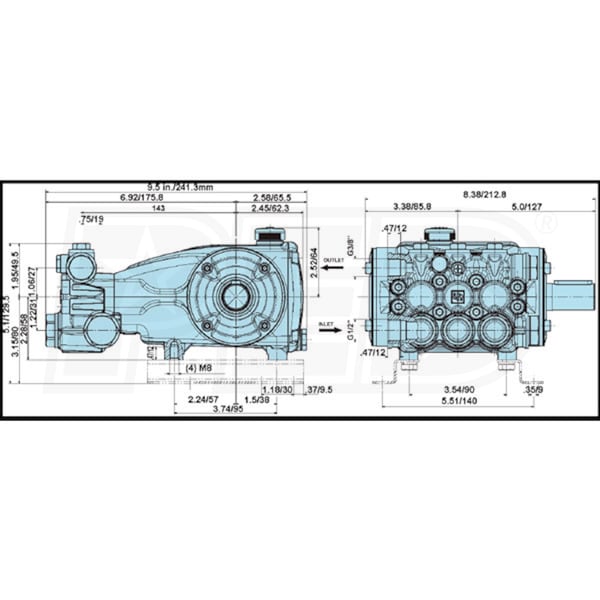

  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Shaft Size
Belt Drive
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Gallon per Minute
4.2
Rated PSI
2900 PSI
Overview
Weight
15 Pounds
Product Length
9.5 Inches
Product Width
8.38 Inches
Product Height
5.1 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
682491065975
Grade
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Female)
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Features
Features
  • Quality Replacement For Worn Out Pumps
  • New forged brass manifold increases working pressure to 4000 PSI
  • New Pump Design
  • Connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • Large 15 oz. oil capacity means better cooling & lubrication
  • 24mm Solid Shaft
  • Maximum 2900 PSI, 4.2 gallons per minute, up to 165F; rated for gas engines up to 8.3 HP & 1750 RPM
  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • Shaft diameter .945 inches (24 mm)
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Shaft Size
Belt Drive
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Gallon per Minute
4.2
Rated PSI
2900 PSI
Overview
Weight
15 Pounds
Product Length
9.5 Inches
Product Width
8.38 Inches
Product Height
5.1 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
682491065975
Product Specs
+
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Shaft Size
Belt Drive
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Gallon per Minute
4.2
Rated PSI
2900 PSI
Overview
Weight
15 Pounds
Product Length
9.5 Inches
Product Width
8.38 Inches
Product Height
5.1 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
682491065975
