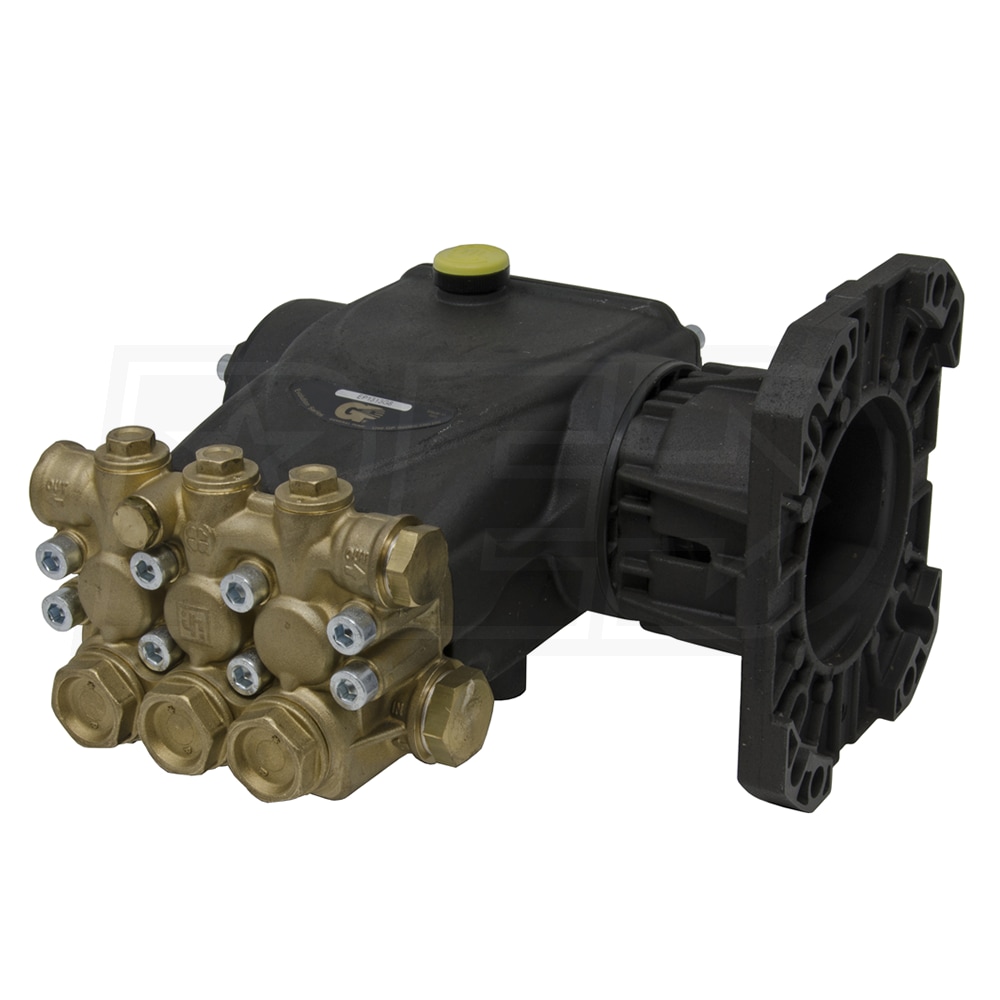

General Pump Evolution Series 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump

Model:

EP1313G8

Write A Review
$348.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
More On The Way
Estimated Availability December 16, 2024
Shipping to60601

General Pump Evolution Series 4000 PSI 4 GPM (1
General Pump Evolution Series 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump
Model: EP1313G8
$348.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • Quality Replacement For Worn Out Pumps
  • New forged brass manifold increases working pressure to 4000 PSI
  • New Pump Design
  • Connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • Large 15 oz. oil capacity means better cooling & lubrication
  • SAE J609B Gas Engine Mounting Flange
  • Maximum 4000 PSI, 4 gallons per minute, up to 165°F
  • 3400 RPM; shaft diameter .945 inches (24 mm)
  • Pump ships as shown; you will need to reuse your connectors or purchase them separately
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

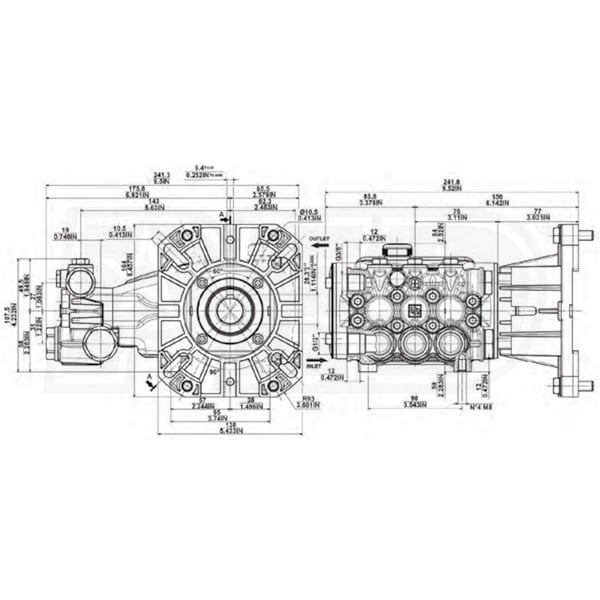

  • See the Owner's Manual (under the Specs tab) for dimensions
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP1313G8
specs product image PID-68390
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
15 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.5 Inches
Product Width
9.5 Inches
Product Height
6.45 Inches
UPC
682491066224
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Chemical Injections
Sold Separately
