Generac RXSW150A3
Generac RXSW150A3
Hover to zoom
1 Of 5

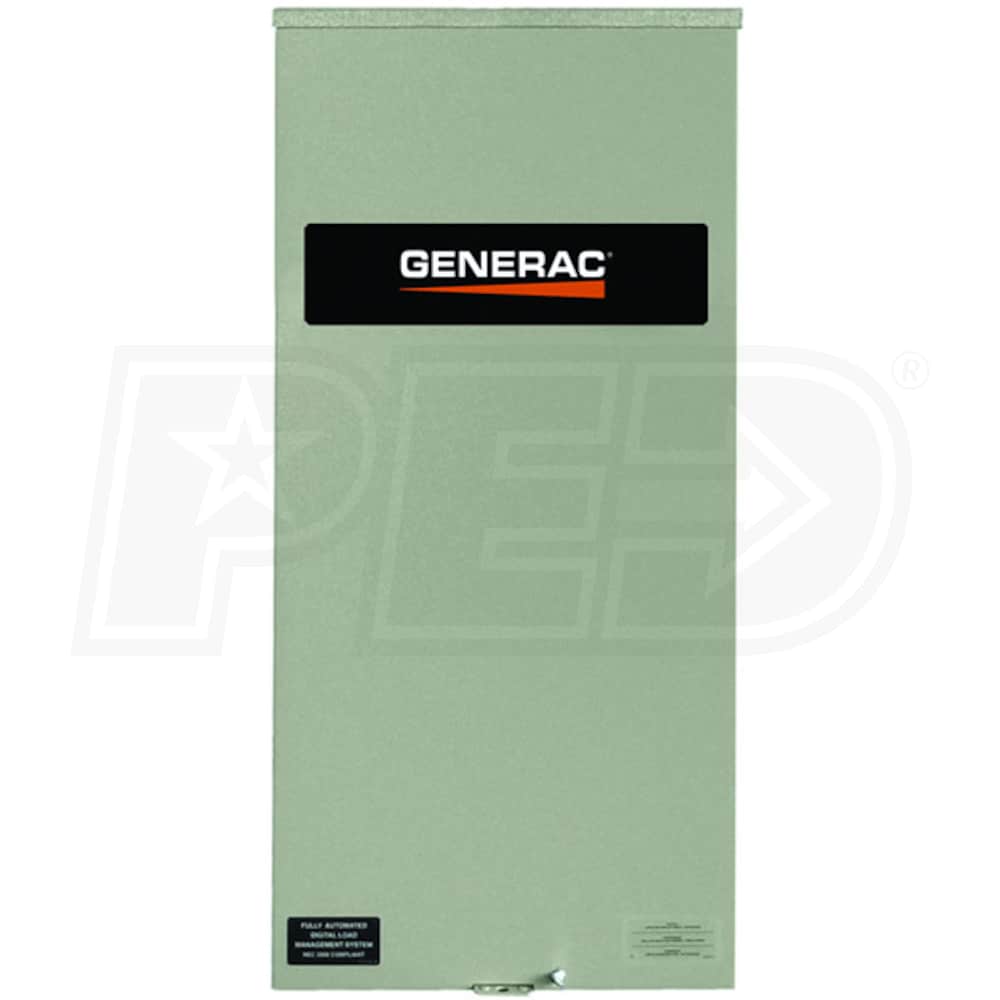

Generac 150-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)

Model:

RXSW150A3

Write A Review
$809.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 11th
Shipping to60601
synchrony card logo
$135 / Month
Suggested monthly payments with 6 month financing.
Generac 150-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Generac 150-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Model: RXSW150A3
$809.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

150

Load Mgmt.

Built-In

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Generac 150-Amp Automatic Smart Transfer Switch w/ Power Management
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: 250 MCM - #6
  • 5-Year Limited Warranty -
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXSW150A3
specs product image PID-77434
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
39 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
30 Inches
Product Width
13.5 Inches
Product Height
6.3 Inches
UPC
696471069624
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
36000 Watts
Rated Amps
150 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
150 Amps
Max Generator Input
150 Amps
Maximum Wattage
36000 Watts
UL Listed
Yes
