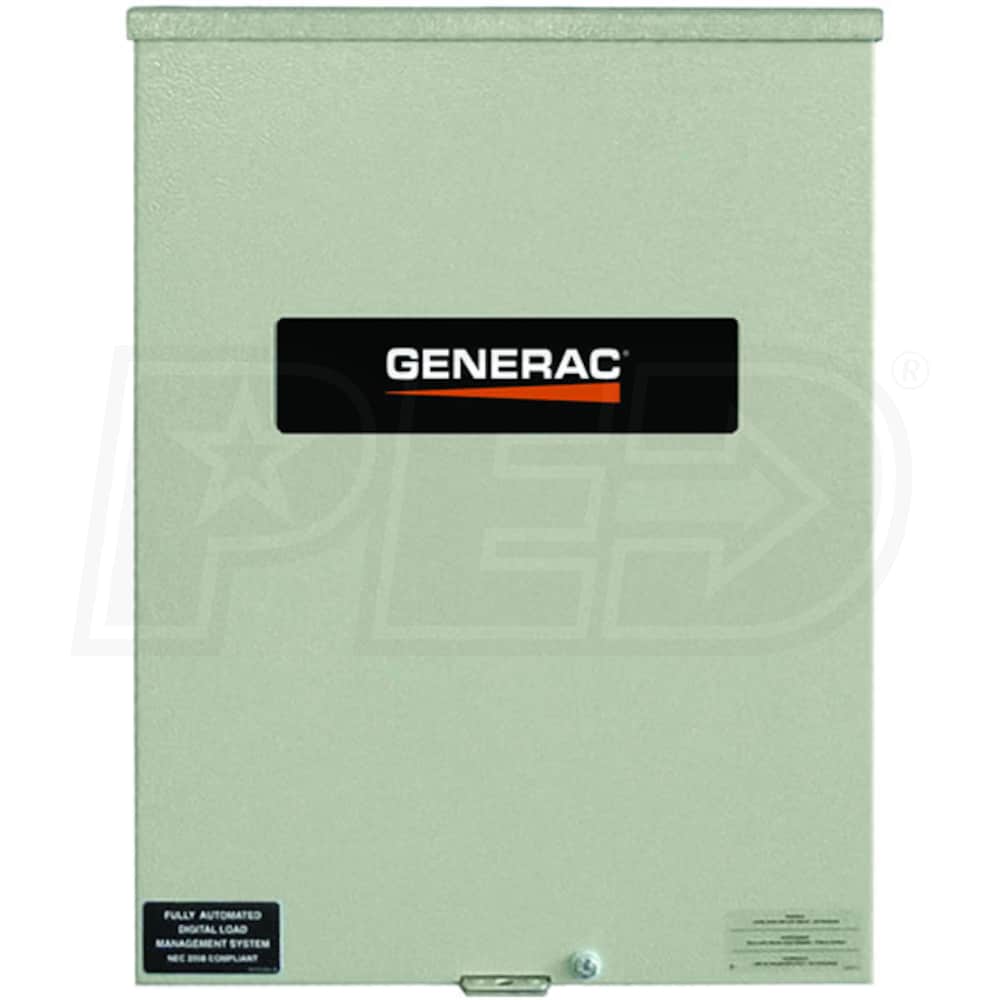

Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Model: RTSW400A3
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews(6)
Write a Review
$2,645.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$34 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Free Shipping$2,645.00Buy Now
Free Freight$2,645.00Visit Site
Share
  • Product Description
  • 6
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
  • 400-Amp Automatic Smart Transfer Switch
  • For Generac Evolution
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • Service Entrance Rated
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
  • 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
22 Inches
Product Height
10 Inches
UPC
696471619935
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
  • 400-Amp Automatic Smart Transfer Switch
  • For Generac Evolution
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • Service Entrance Rated
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
  • 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
22 Inches
Product Height
10 Inches
UPC
696471619935
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
22 Inches
Product Height
10 Inches
UPC
696471619935
Reviews
(6)
+
Generac RTSW400A3 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Will the lugs in this switch allow for 2 4/0 conductors for (2) 200 amp panels?
EJ H.
from Ohio
December 13, 2016
Answer
The switch does not have dual lugs, and according to Generac they can be changed by the electrician installing the switch as long as the lugs are UL Approved. These would have to be found at a local electrical supply.
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+
My installer is asking if this unit has a breaker? Will mate this transfer switch to a Model 6721 16KW Generac. Thank you.
Rob Smyth
from West Virginia
June 30, 2016
Answer
The transfer switch has a disconnect only and is not a breaker. This is considered a pass through switch which means the utility power passed through the switch and the generator itself has the main line circuit breaker.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
