Generac RTSC800A3
Generac RTSC800A3
Hover to zoom
1 Of 5

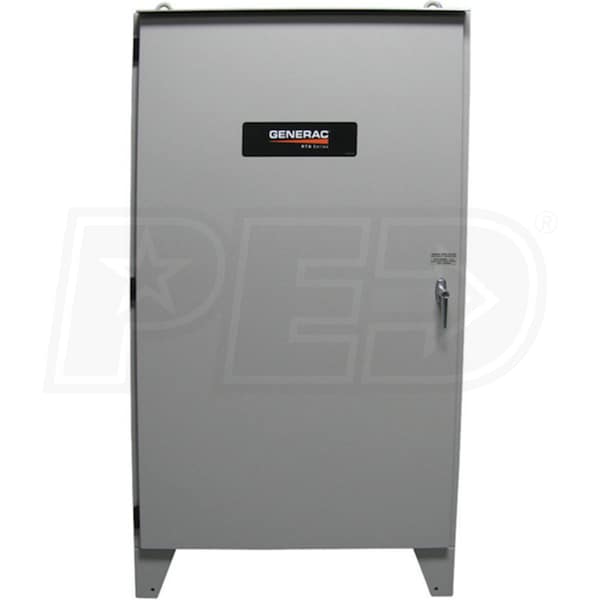

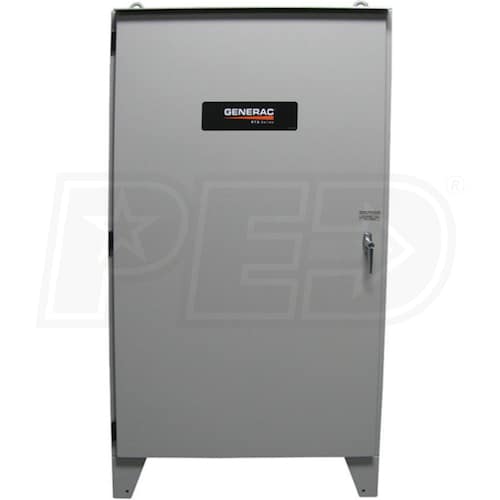

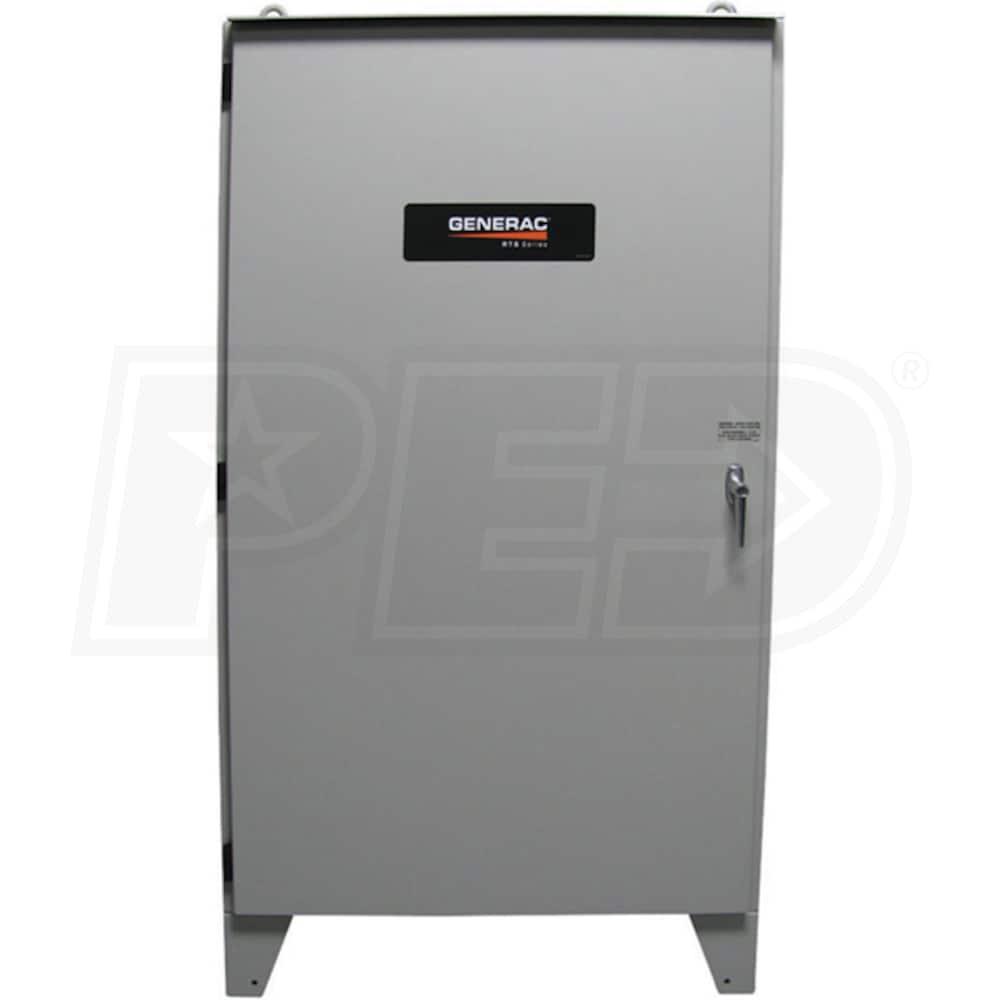

Generac 800-Amp Automatic Smart Transfer Switch w/ Power Management (120/240V 1P)

Model:

RTSC800A3

Write A Review
$5,769.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$87 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac 800-Amp Automatic Smart Transfer Switch w/ Power Management (120/240V 1P)
Generac 800-Amp Automatic Smart Transfer Switch w/ Power Management (120/240V 1P)
Model: RTSC800A3
$5,769.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

800

Load Mgmt.

Built-In

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • 800-Amp Automatic Smart Transfer Switch w/ Power Management
  • Only works with 120/240 Single-Phase generators
  • Compatible w/ current Generac 22-150kW liquid-cooled models
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (2) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (4) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated Enclosure
  • Heavy-duty, lockable steel design provides added security
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 65,000 Amps --- Lug Range: 4/0 - 500 MCM
  • 5-Year Limited Warranty - UL Listed
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSC800A3
specs product image PID-50721
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
337 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471619881
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
192000 Watts
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Maximum Wattage
192000 Watts
UL Listed
Yes
