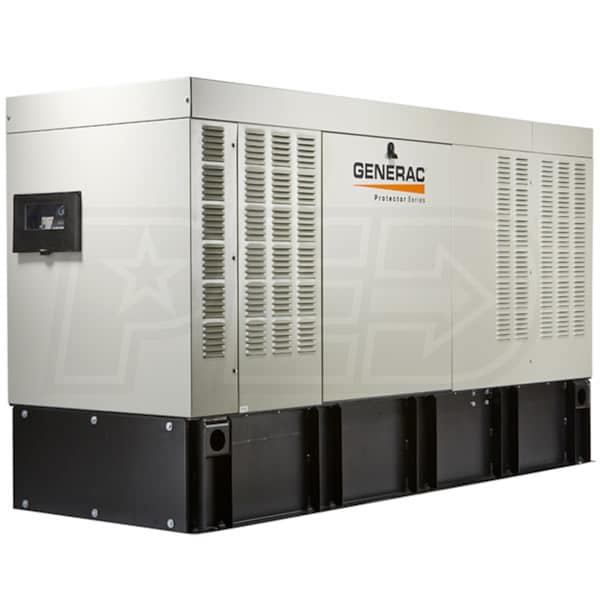

Generac Protector® 50kW Automatic Standby Diesel Generator (120/208V 3-Phase)

Model:

RD05034GDAE

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac Protector® 50kW Automatic Standby Diesel Generator (120/208V 3-Phase)
Generac Protector® 50kW Automatic Standby Diesel Generator (120/208V 3-Phase)
Model: RD05034GDAE
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

50,000 Rated Watts

Voltage

120/208 Three-Phase

Fuel

Diesel

Engine

Generac

  • Generac Protector® Series Diesel Standby Generator
  • For light commercial applications w/ 120/208V 3-Phase service
  • Fully Automatic Operation When Paired w/ Generac ATS
  • Generator is only compatible with Generac Auto Transfer Switches
  • Generac 3.4L In-Line Turbocharged 4-Cylinder Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Integrated 62-Gallon Double-Wall Base Fuel Tank
  • Provides up to 24 hours of run time @ 1/2 load
  • Two-Line LCD Evolution Controller
  • Easy viewing, monitoring & management of generator functions
  • Quiet Test
  • Runs at a lower RPM, is quieter and consumes less fuel
  • Isochronous Electronic Governor Control
  • Precise load response & voltage/frequency regulation (±1%)
  • Corrosion-Resistant Aluminum Enclosure
  • Enhanced durability, ideal for coastal & salt-water environments
  • Sound dampening design limits sound pressure to a low 70dB(A)
  • Code Ready - Compatibility With A Variety Of Environments
  • External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
  • UL/CUL 2200-Listed Generator - 5-Year Limited Warranty
  • ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RD05034GDAE
specs product image PID-14605
Overview
Weight
2197 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
95 Inches
Product Width
35 Inches
Product Height
57 Inches
UPC
696471616101
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
50000 Watts
Fuel Type
Diesel
Rated Amps
173 Amps
Diesel Fuel Consumption @ 50% Load
2.15 gallons/hr
Tank Size
62 Gallons
Run Time @ 50% Load
25 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
12v Auto Start
CC
3400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
