Generac PWRcell™ 36kWh Deluxe Managed Whole Home Package - 7.6kW (120/240V Single-Phase) Inverter, (2) Outdoor Cabinet w/ (12) 3.0 kWH Batteries + 200A SE

Model:

PWRCELL-DLX-MWH-KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac PWRcell™ 36kWh Deluxe Managed Whole Home Package - 7.6kW (120/240V Single-Phase) Inverter, (2) Outdoor Cabinet w/ (12) 3.0 kWH Batteries + 200A SE
Generac PWRcell™ 36kWh Deluxe Managed Whole Home Package - 7.6kW (120/240V Single-Phase) Inverter, (2) Outdoor Cabinet w/ (12) 3.0 kWH Batteries + 200A SE
Model: PWRCELL-DLX-MWH-KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    PWRcell's revolutionary technology captures and stores electricity - either from solar panels, or the electrical grid. It allows you to use stored energy during peak demand times when electricity costs are high, which ultimately helps reduce your electric bill and save some money. In the case of a power outage, PWRcell is ready to supply backup power to your home.
  • Generac PWRcell™ 36kWh Deluxe Managed Whole House Inverter Package
  • Provides the max amount of energy storage for a single-inverter setup
  • Bi-Directional, Rebus™ Powered Design
  • A simple, efficient design for integrating smart batteries with solar
  • 7,600-Watt (Grid-Tie) & 8,000-Watt (Backup) Rated Watts (120/240V Single-Phase)
  • Provides up to 10,000 starting watts during backup operation
  • Plenty of power to start larger items around the house
  • User-Selectable Modes
  • For backup power, self-supply, time-of-use and zero-export
  • Grid Sell & Prioritized Charging From Renewables
  • Provides more flexibility to the homeowner
  • (2) PWRcell™ Outdoor Battery Cabinet
  • Provides 36 kWh of power
  • (12) Generac PWRcell™ 3 kWh DCB Battery Module (Included)
  • A powerful battery in a compact footprint
  • Free System Monitoring w/ PWRview&trade Web Portal & Mobile App
  • Provides real-time energy usage
  • Dashboards for solar & battery usage
  • Generac 200-Amp Service Entrance Rated Automatic Smart Transfer Switch
  • Installs between main meter & service panel
  • (4) Generac 50-Amp Smart Management Module (SMM)
  • Provides the flexibility to control of what circuits matter most
  • Includes (2) 300-Amp Universal Current Transformers (CTS)
  • For main service panels up to 300-Amps
  • 10-Year Limited Warranty On Inverter, Cabinets & Batteries
  • ***Please Note - Requires Solar Panels (Not Included)

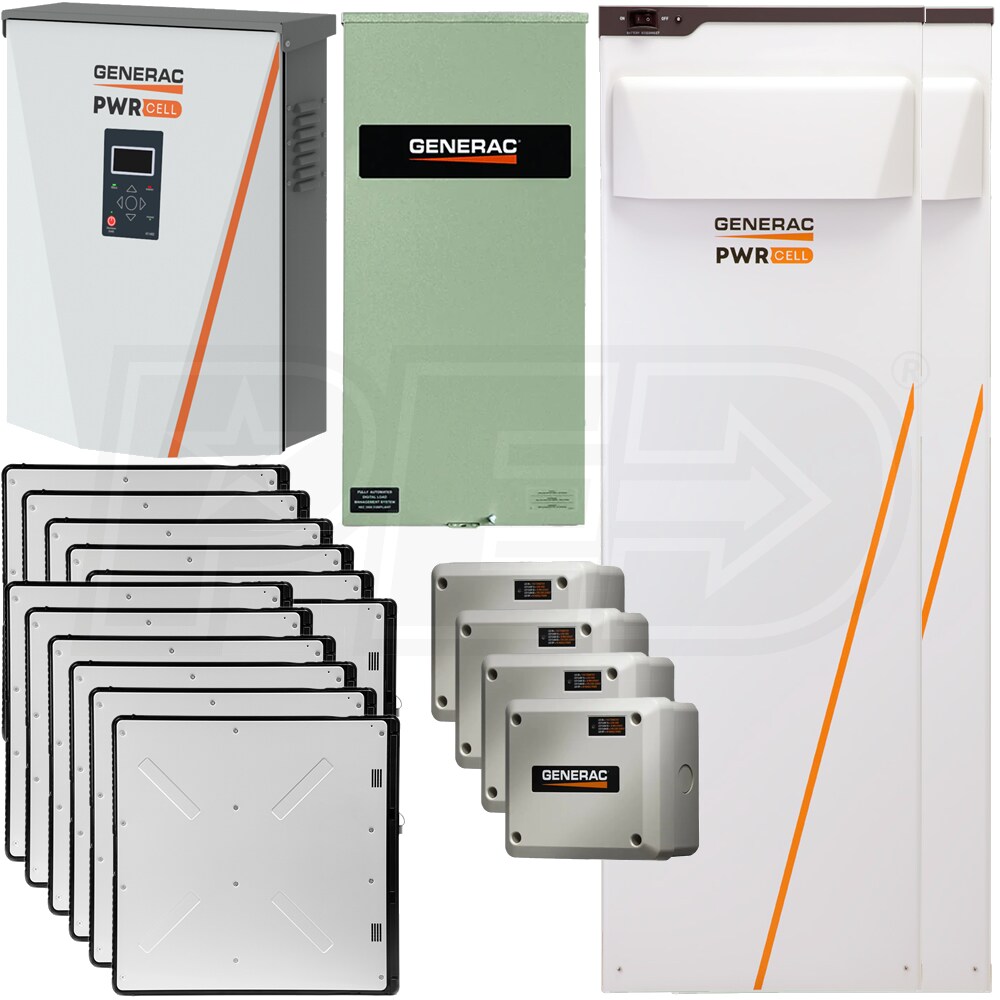

  • Product Includes
    • (1) Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs (APKE00014)
    • (2) Generac PWRcell™ Outdoor Rated (3R) Battery Cabinet (APKE00028)
    • (12) Generac PWRcell™ 3.0kWh DCB Battery Module (BJ-DCB05ZKBG)
    • (1) Generac 200-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RXSW200A3)
    • (4) Generac 50-Amp Smart Management Module (SMM) (7000)
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs (APKE00014)
  • (2) Generac PWRcell™ Outdoor Rated (3R) Battery Cabinet (APKE00028)
  • (12) Generac PWRcell™ 3.0kWh DCB Battery Module (BJ-DCB05ZKBG)
  • (1) Generac 200-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RXSW200A3)
  • (4) Generac 50-Amp Smart Management Module (SMM) (7000)
PWRCELL-DLX-MWH-KIT
specs product image PID-113451
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Product Specs
Battery Storage (Wh)
36
Battery Type
DC-Coupled
XVT076A03
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
62.7 Pounds
Consumer Warranty
10 Years
Product Length
24.5 Inches
Product Width
19.25 Inches
Product Height
8 Inches
Product Specs
Enclosure
NEMA 3R
AC Output / Grid-Tie
Rated AC Power Output
7600 Watts
AC Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Max Continuous Output Current
32 A, RMS
Ground-Fault Isolation Detection
Included
Charge Battery From AC
Yes
THD (Current)
<2%
Typical Nighttime Power Consumption
<7 Watts
AC Output / Backup
Rated AC Backup Power Output (Islanded)
8000 Watts
Max AC Backup Power Output
10000 Watts
AC Backup Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
AC Circuit Breaker
50 Amps
THD Voltage
<2%
Automatic Switchover Time
<1 Seconds
Typical Nighttime Power Consumption
30 Watts
DC Input
DC Imput Voltage
360-420 VDC
Nominal DC Bus Voltage
380 VDC
Max Import Current
20
Max Inmput Current
30
Reverse Polarity Protection
Yes
Ground-Fault Isolation Detection
Yes
Transformerless, Ungrounded
Yes
Typical Nighttime Power Consumption
7 Watts
DC Input / Battery
Max Continuous Power
8000 Watts
Internal DC Distribution Breakers
4 x 2-Pole 30 Amp
DC Fuses on Plus & Minus
40 Amp
2-Pole Disconnection
Yes
Efficiency
Peak Efficiency
97%
CEC Weighted Efficiency
96.5%
APKE00028
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
55 Pounds
Consumer Warranty
10 Years
Commercial Warranty
10 Years
Product Length
17.5 Inches
Product Width
18 Inches
Product Diameter
3.5 Inches
RXSW200A3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
39 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
6.3 Inches
Product Width
13.5 Inches
Product Height
30 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2 Pounds
Consumer Warranty
1 Year
Product Length
6.17 Inches
Product Width
7.06 Inches
Product Height
3.7 Inches
Product Specs
Voltage
240 Single-Phase
Rated Amps
50 Amps
Enclosure
NEMA 3R
