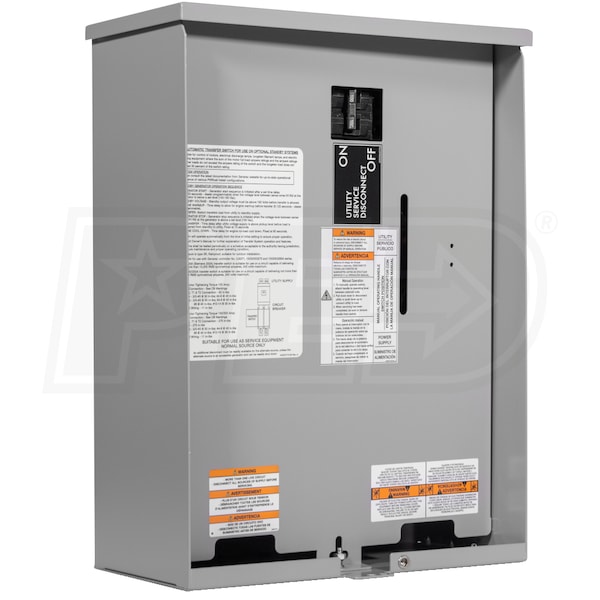

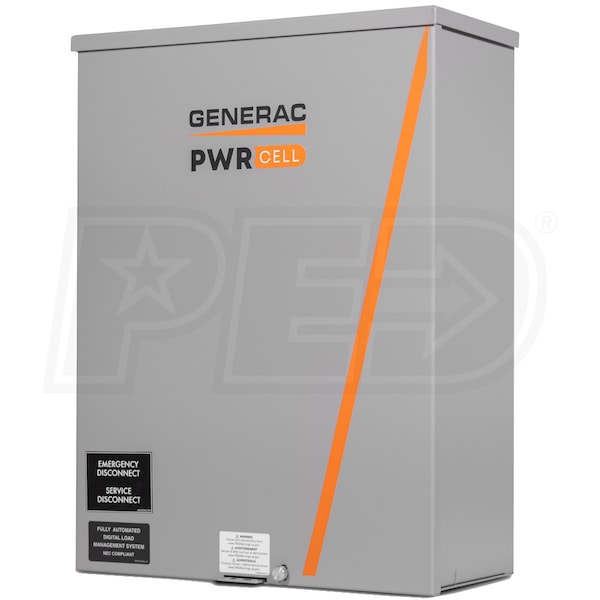

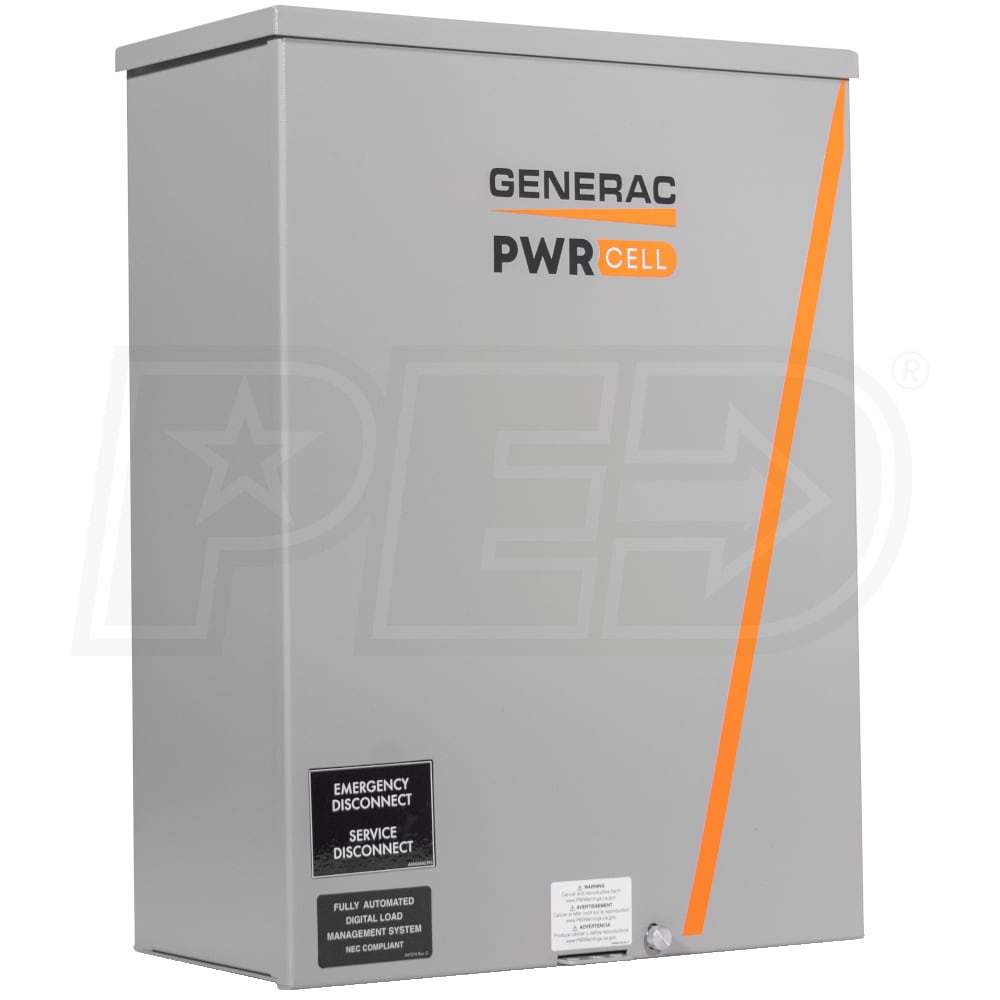

Generac PWRcell 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)

Model:

CXSW100A301

Write A Review
$709.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$119 / Month
Suggested monthly payments with 6 month financing.
Generac PWRcell 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Generac PWRcell 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Model: CXSW100A301
$709.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The PWRcell Automatic Transfer Switch (ATS) offers an easy-to-install solution for integrating solar with battery storage and Generac generators. The PWRcell ATS supports many flexible configuration options, including whole backup power when paired with load management, and true energy independence when paired with the PWRgenerator or a Generac home standby generator. Make the most of your Generac Solar + Battery Storage System with this comprehensive load management solution.

    Note - PWRcell ATS requires a PWRcell Energy Storage System (ESS) to function and cannot be used for Generator-only applications. Installation with a Generac Home Standby Generator without the presence of a PWRcell ESS will damage this switch and void the warranty.
  • Generac PWRcell 100-Amp Automatic Smart Transfer Switch
  • Compatible with Evolution or Nexus generator controllers
  • Unlock Backup Power Capability For PWRcell Solar + Battery Storage Systems
  • For integrating solar with battery storage and Generac generators*
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 10,000 Amps --- Lug Range: 2/0 - #14
  • 5-Year Limited Warranty - UL Listed
  • *PLEASE NOTE - Requires PWRcell Energy Storage System (ESS) To Function
  • Cannot be used for Generator-only applications
  • Will damage switch & void warranty without presence of PWRcell (ESS)
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CXSW100A301
specs product image PID-150354
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
22.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
14.6 Inches
Product Height
7 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
