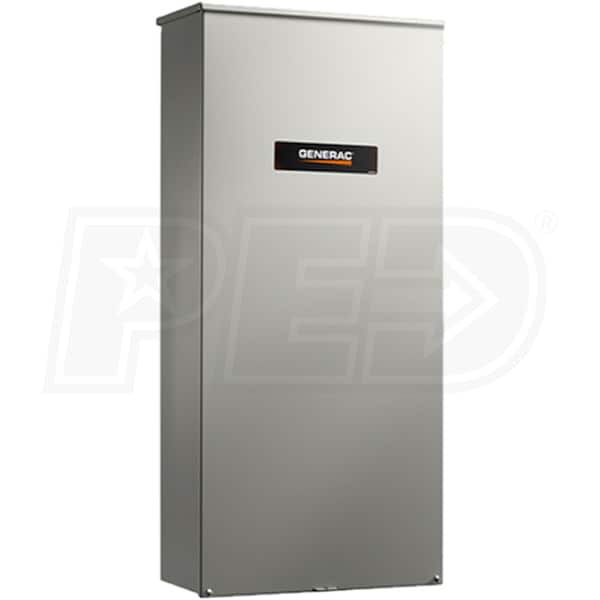

Generac 200-Amp Automatic Transfer Switch (Service Disconnect - 277/480V)

Generac 200-Amp Automatic Transfer Switch (Service Disconnect - 277/480V)
Our Price
Compare Prices
Shipping Info
Model: RTSW200K3
$2,059.00
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Holiday Shipping Schedule
Holiday Schedule -

$2,059.00Buy Now
$2,059.00Visit Site
$2,059.00Visit Site
Factory-Direct
Ships in 4-6 Weeks
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Alaska, California, Connecticut, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Service Disconnect
Amp Rating
200
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 3R
Features
Features
  • 200-Amp Automatic Operation
  • For Use With Generac Generators Only
  • 277/480V 3-Phase Automatic Transfer Switch
  • Designed for use with 277/480V 3 Phase generators
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • UL Listed 2200
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Made in USA
Yes
Weight
55 Pounds
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
Consumer Warranty
5 Years
UPC
696471620481
Type
Service Disconnect
Amp Rating
200
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Compatible
?>
Enclosure
NEMA 3R
Features
Features
  • 200-Amp Automatic Operation
  • For Use With Generac Generators Only
  • 277/480V 3-Phase Automatic Transfer Switch
  • Designed for use with 277/480V 3 Phase generators
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • UL Listed 2200
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Made in USA
Yes
Weight
55 Pounds
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
Consumer Warranty
5 Years
UPC
696471620481
Product Specs
+
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Made in USA
Yes
Weight
55 Pounds
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
Consumer Warranty
5 Years
UPC
696471620481
