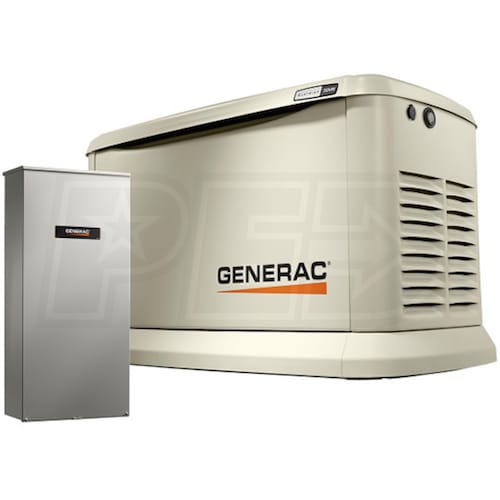

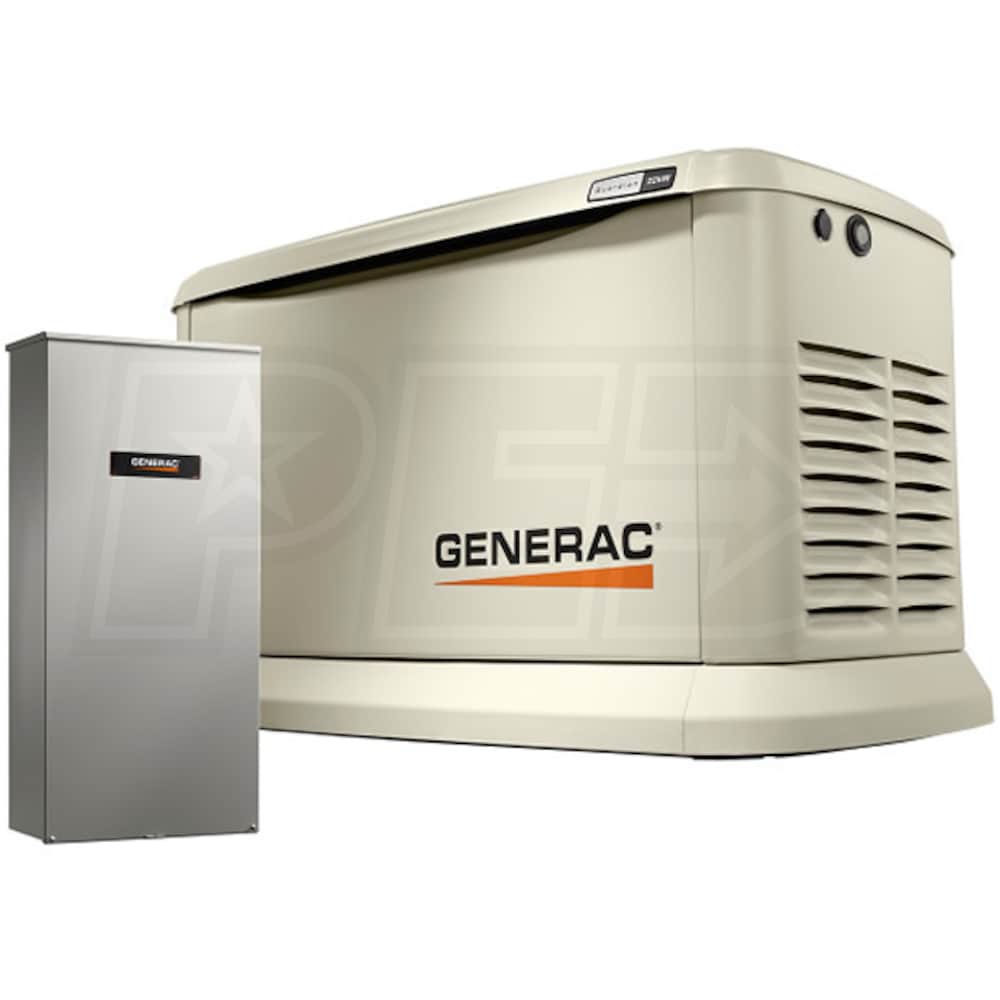

Generac Guardian™ 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi

Generac Guardian™ 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi
Our Price
Compare Prices
Shipping Info
Model: 70432
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (24)
Write A Review
$4,897.00
In-Stock
Ships Monday, Nov 19th
Free Shipping
Free Lift Gate Service -
Switch Options
Add-Ons
+$99.99

Free Shipping$4,897.00Buy Now
Free Freight$4,897.00Visit Site
$4,897.00Visit Site
In-Stock
Ships Monday, Nov 19th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 24
    Reviews
  • 9
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
22,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
  • 22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator
  • Protects your home and family during a power outage
  • Digital Power Management (DPM) protects against overload
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • Includes 200-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel for faster & less costly installation
  • DPM technology allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • Generac's G-Force Engine
  • Specifically designed for the demanding environment standby generators endure
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ 2.0 Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Quiet-Test™ Self-Test Mode
  • Low RPM, 5 or 12 minute test for reduced noise and fuel consumption
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger (Battery Sold Separately)
Specifications
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
22000 Watts
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Overview
Made in USA
Yes
Weight
466 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471074215
Grade
Style
Run Watts
22,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
  • 22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator
  • Protects your home and family during a power outage
  • Digital Power Management (DPM) protects against overload
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • Includes 200-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel for faster & less costly installation
  • DPM technology allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • Generac's G-Force Engine
  • Specifically designed for the demanding environment standby generators endure
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ 2.0 Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Quiet-Test™ Self-Test Mode
  • Low RPM, 5 or 12 minute test for reduced noise and fuel consumption
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger (Battery Sold Separately)
Specifications
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
22000 Watts
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Overview
Made in USA
Yes
Weight
466 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471074215
Product Specs
+
Specifications
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
22000 Watts
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Overview
Made in USA
Yes
Weight
466 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471074215
Reviews
(24)
+
Generac Guardian 70432 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(9)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
If I install the generator myself, will that void the warranty?
William
from Louisiana
September 01, 2018
Answer
Although we recommend having an electrician install the unit, if you decide to install it yourself the unit would be covered under warranty starting from the date of purchase.
+
Can the generator run for a day without having to be turned off to cool down?
Wayne
from Louisiana
July 02, 2018
Answer
The standby generators are designed to run for days without shutting down the unit. As long as there is a fuel source to the generator it can continue to run for several days/weeks. One thing to keep in mind, though, is you have to follow the maintenance schedule which usually requires you to check/change oil after 100 hours of use. This would require you to shutdown the generator.
+
Can this generator be powered with propane?
Robert T.
from California
June 30, 2018
Answer
The generator is able to run on either NG or LP (Propane) and is determined at the time of install. The minimum LP tank size per Generac is 250 gallons.
+
Does this generator have a built-in battery charger?
Greg
from South Carolina
June 25, 2018
Answer
The battery is maintained by one of the control wires that come from the transfer switch and go to the generator. The connection is labeled "T1" and basically steals power from the utility to keep the battery charged.
+
How do I determine what size I need?
Robert
from Alabama
June 24, 2018
Answer
Proper sizing of the generator is crucial to the success of any generator installation and requires a good working knowledge of electricity and its characteristics, as well as the varying requirements of the electrical equipment comprising the load.

A certified electrician needs to be consulted for proper sizing and installation of any generator. When analyzing the electrical load, consult the manufacturer’s nameplate on each major appliance or piece of equipment to determine its starting requirements in terms of amps and voltage which can be calculated to watts using Ohms Law (Amps x Volts = Watts).

When choosing the generator output, select a rating that is approximately 20% to 25% higher than the peak load (for example, if the load is about 8 kilowatts, select a 10 kW generator). A higher rated generator will operate comfortably at approximately 80% of its full capacity and will provide a margin of flexibility if the load increases in the future.

Applications that are commercial, all-electric homes, have heat pump or geothermal systems require special installation procedures. and a certified electrician must be contacted to evaluate and install these types of systems.

You can check out our Home Standby Generator Calculator as a guide.
+
How many days does this unit work during a power outage?
Kathleen
from South Carolina
June 23, 2018
Answer
This unit can run for a few weeks as long as there is a fuel supply and utility power is lost. You will still have to maintain the unit according to the maintenance schedule.
Please see the Product Manual for more information.
+
Who makes the G-Force engine?
Franklyn
from Florida
June 18, 2018
Answer
The G-Force engine is designed and made in house at Generac in Wisconsin.
+
Can this unit run on no-lead gasoline
Darrell
from Missouri
June 18, 2018
Answer
The home standby generators will run on either LP (propane) or Natural Gas only.
+
Does this generator come with an NG regulator?
Terry
from Texas
June 13, 2018
Answer
The generator will come with a built-in regulator but you may need to install a secondary regulator depending on your application and gas pressure to the unit. This is determined by a local installer and/or gas company. They would provide this part.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Jared
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Generac Guardian™ 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi
Generac Guardian 70432
+
Reset View
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
Generac Guardian 70432
×
Customer Review Images

Visit Power Equipment Direct on Facebook
View the Power Equipment Direct Twitter Profile Page
Follow Power Equipment Direct on Pinterest
View Power Equipment Direct YouTube Channel
View Power Equipment Direct Tumbler
View Power Equipment Direct LinkedIn Company Profile
