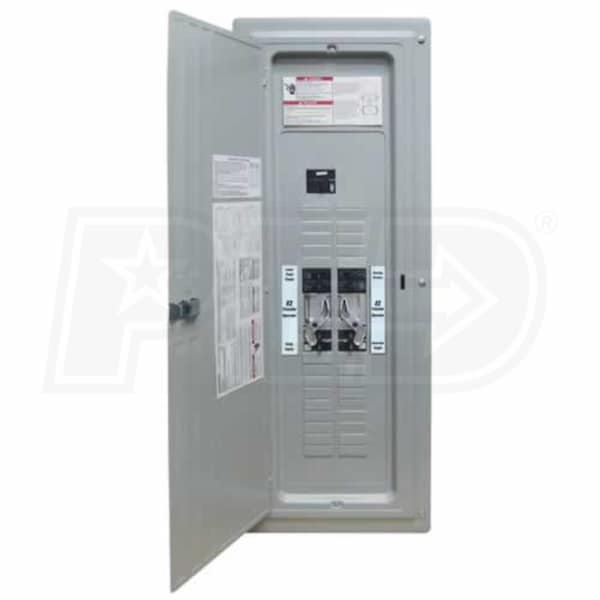

Generac GenReady 125-Amp Automatic Transfer Switch & 200-Amp Load Center

Generac GenReady 125-Amp Automatic Transfer Switch & 200-Amp Load Center
Our Price
Compare Prices
Shipping Info
Model: 5449
(Based on expert analysis, manufacturer ratings and customer reviews)
4.5 out of 54.5 out of 54.5 out of 54.5 out of 54.5 out of 5
Number of Reviews (4)
Write A Review
$399.00
Only 1 In-Stock
Ships Tuesday, Oct 23rd

$399.00Buy Now
$399.00Visit Site
Sales Tax Extra $449.99Visit Site
Only 1 In-Stock
Ships Tuesday, Oct 23rd
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Panel
  • Consolidates main load center and automatic transfer switch
  • Easier and cheaper to install one switch instead of two
  • 200-Amp Main Load Center
  • Dimensions are the same as a standard main load center
  • 40 circuit capacity with the use of tandem breakers
  • 125-Amp Automatic Transfer Switch

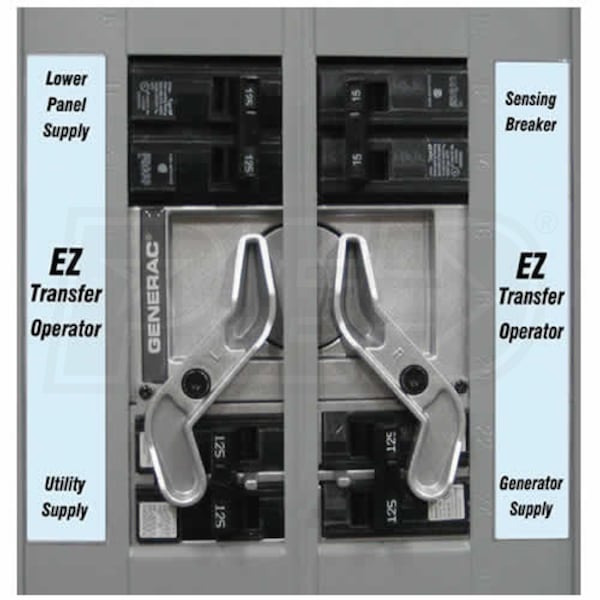

  • EZ Transfer Operator restores power up to 18 circuits (30 tandem)
  • Service entrance rated for easy installation
  • Compatibility
  • Designed for Guardian air-cooled and liquid-cooled generators
  • Will NOT work with other standby generator brands
  • Single panels are compatible with generators up to 125A/30 kW
  • Single generators can support multiple GenReady load centers
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
125 Amps
Enclosure
NEMA 1R
ATS Poles
2 Poles
Maximum Wattage
30000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
49 Pounds
Product Length
43.25 Inches
Product Width
15.63 Inches
Product Height
4 Inches
Consumer Warranty
2 Years
UPC
696471054491


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Panel
  • Consolidates main load center and automatic transfer switch
  • Easier and cheaper to install one switch instead of two
  • 200-Amp Main Load Center
  • Dimensions are the same as a standard main load center
  • 40 circuit capacity with the use of tandem breakers
  • 125-Amp Automatic Transfer Switch
  • EZ Transfer Operator restores power up to 18 circuits (30 tandem)
  • Service entrance rated for easy installation
  • Compatibility
  • Designed for Guardian air-cooled and liquid-cooled generators
  • Will NOT work with other standby generator brands
  • Single panels are compatible with generators up to 125A/30 kW
  • Single generators can support multiple GenReady load centers
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
125 Amps
Enclosure
NEMA 1R
ATS Poles
2 Poles
Maximum Wattage
30000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
49 Pounds
Product Length
43.25 Inches
Product Width
15.63 Inches
Product Height
4 Inches
Consumer Warranty
2 Years
UPC
696471054491
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
125 Amps
Enclosure
NEMA 1R
ATS Poles
2 Poles
Maximum Wattage
30000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
49 Pounds
Product Length
43.25 Inches
Product Width
15.63 Inches
Product Height
4 Inches
Consumer Warranty
2 Years
UPC
696471054491
Reviews
(4)
+
Generac Guardian 5449 Reviews & Ratings
Product Q&A
(4)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
If I purchase the Generac 14KW model 6247 and the Genready Load center 5449, Will I need to purchase any additional items for hook up? Will the battery charger connect to the 5449 center?
Sam Stowasser
from West Virginia
January 31, 2014
Answer
No additional items will be required from Generac, however, to properly connect the transfer switch to the generators battery charger within the generator controller your installing electrician will need to provide a 120V wire from the switch to the controllers T1 connection. This provides the required 120V to the controllers battery charger so it will operate properly.

Please consult with either a "certified" electrician or local Generac installer for installation assistance as they will be familiar with your local electrical code requirements.
+
Does this have a 200 amp main breaker? What kind of breakers does it use and if they are special to this device, where can they be purchased? Also, can this be installed without adding the standby generator at this time and it work properly for normal electric service? Thanks
Monte Fogle
from Texas
October 11, 2013
Answer
Thank you for your interest in Electric Generators Direct!

The Generac 5449, GenReady 200-amp ATS & load center is equipped with a 200 amp main breaker. This panel is Multi-listed for use with Siemens, Square D and GE 1 breakers. These circuit breakers can be purchased at your local electrical supplier, or hardware store.

You will not be required to have the generator installed in order to use this as a primary load center.
+
Can you suggest a generator package that will work with the Model 5449 Panel? Looking for something around 8-12kW. Thanks!
Andres
from Massachusetts
June 03, 2012
Answer
Any of the individual Generac home standby generators will work with model 5449 transfer panel.....here are links to the 8kW, 10kW and the 14kW models available.

Generac Guardian Model 5882 - 8kW

Generac Guardian Model 5883 - 10kW

Generac Guardian Model 5884 - 14kW
+
Can you manually switch the 4559 transfer panel? Thanks.
Kevin Johnson
from Washington
January 23, 2012
Answer
Model 5449 is an automatic system only and cannot be manually operated. If you are in need of a manual system you should check out the Reliance Controls 200A transfer panels.....see link for details:

Reliance Controls TTV2005C

Please be aware that manual transfer switches are for portable generators only and automatic transfer switches are for permanent home standby systems only.
