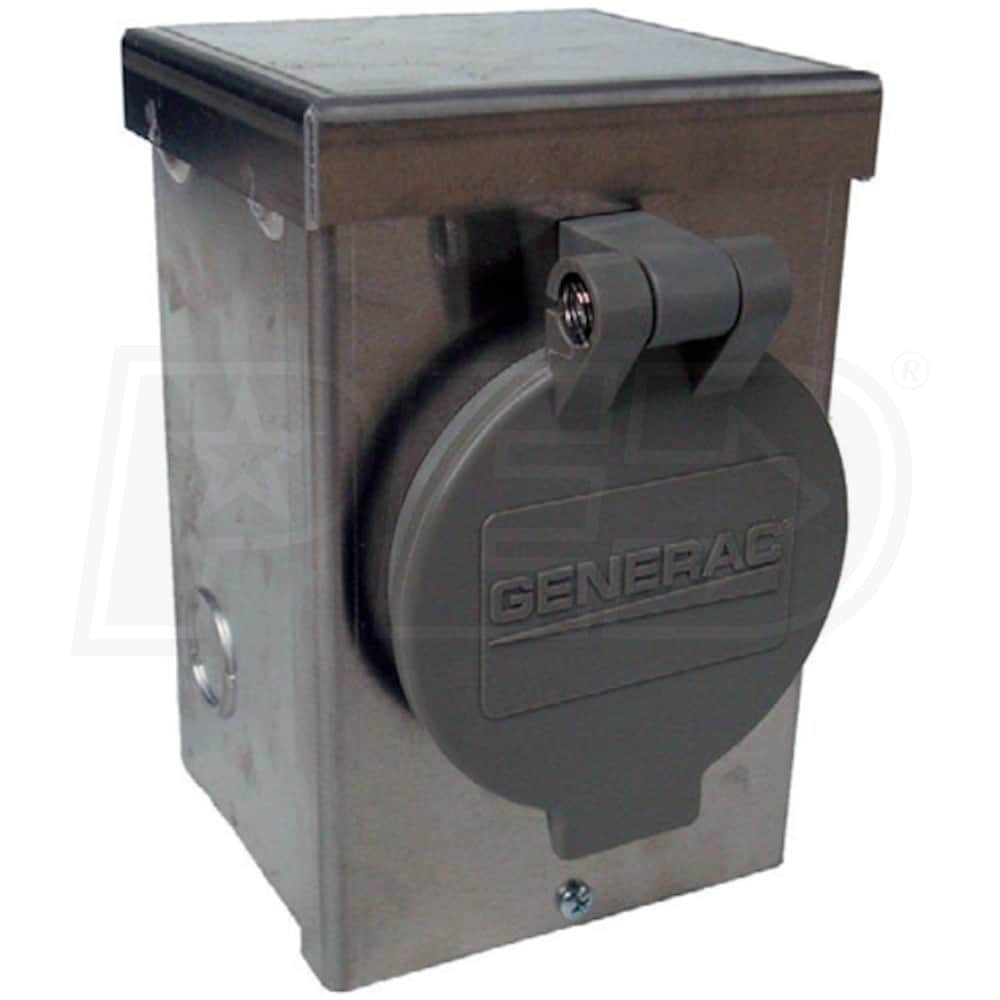

Generac 6347 - 50-Amp (Twistlock) Aluminum Power Inlet Box w/ Front Flip Lid
Model:
6347
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Outdoor Connection
- Plug your generator into an exterior wall outlet
- Weather Resistant (NEMA 3R)
- Weatherproof box can be painted to match exterior colors
- Max Amps and Watts
- 50-Amps @ 240V, Up to 12000 Watts
- Front Flip Lid
- Keeps out dirt, insects and moisture
- UL Listed
- Tested and certified to UL standards
- Compatible Generac Generators
- GP15000E, GP17500E, XG10000E, XP10000E
- Compatible Transfer Switches Model #'s
- 6380, 6381, 6335
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
6347
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
3 Pounds
Consumer Warranty
90 Days
Product Length
6.5 Inches
Product Width
4.25 Inches
Product Height
4 Inches
UPC
696471063479
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Plugs
CS6364/5 - 50-Amp Twistlock
1
Reviews
(5)
Generac 6347 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Jared, the Generator Expert
Hi,
I have a Generac XG10000E and want to change the box where my hot tub supply was to accept the 50amp Generac. I have (2) #6 wires plus a #6 ground. Will that work? Also, which box and outlet would you recommend as well as a generator cord.
Thanks for your help,
Jim
Jim
from Illinois
January 19, 2014
Generac 6347 - 50-Amp Power Inlet Box
Will above mate with L14-30R extension cord?
If not, pls. suggest another that will work well with #6 wiring to box..
Thanks,
Frank
Frank Babiarz
from Florida
October 22, 2013
