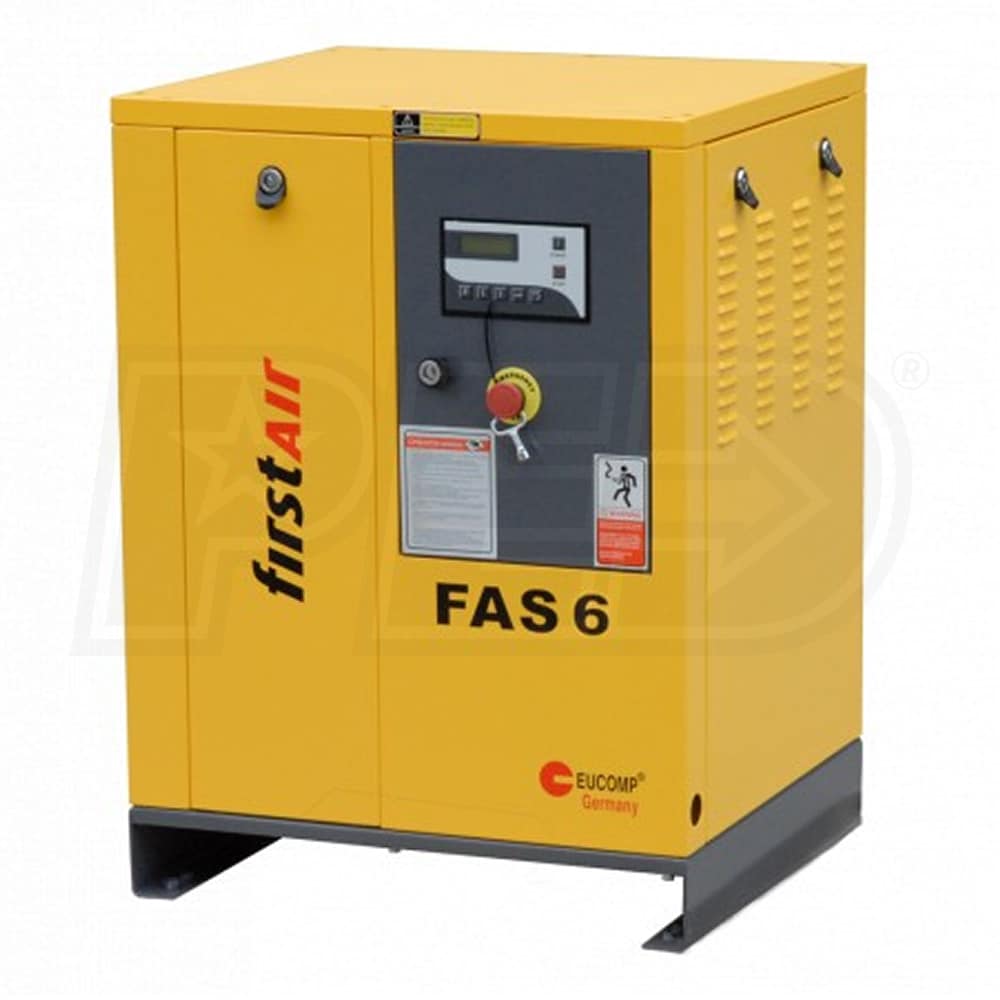

First Air FAS6 7.5-HP Tankless Rotary Screw Air Compressor (230V 1-Phase 150PSI)
First Air FAS6 7.5-HP Tankless Rotary Screw Air Compressor (230V 1-Phase 150PSI)
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
23.4
CFM Rated @ 150 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
23.4 CFM Rated @ 150 PSI
Tank Size
0 Gallons
Features
Features
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- Premium Rotary Air System
- High quality components ensures durability with constantly high efficiency
- Designed for industrial applications; Economical operation is guaranteed
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Low Noise Sound Enclosure For Quiet Operation (Tank Not Included)
- Reduces sounds levels to as low as 65±3 dBA; about the same as a normal conversation
- Service can be conducted quickly and safely from all 4 sides
- High-Efficiency Cooling System
- Constructed and measured to be ran up to a room temperature of +45°C
- Improves longevity and reliability
- Integrated Oil Separator
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- Oil level can be controlled at all times through inspection glass
- 1 Year Factory Warranty-Parts Only
Specifications
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
68
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
23.4
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Weight
530 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
24 Inches
Product Height
35 Inches
Power Type
Electric
Additional Model Numbers
FAS6, FAS061
Grade
Style
CFM
23.4
CFM Rated @ 150 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
23.4 CFM Rated @ 150 PSI
Tank Size
0 Gallons
Features
Features
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- Premium Rotary Air System
- High quality components ensures durability with constantly high efficiency
- Designed for industrial applications; Economical operation is guaranteed
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Low Noise Sound Enclosure For Quiet Operation (Tank Not Included)
- Reduces sounds levels to as low as 65±3 dBA; about the same as a normal conversation
- Service can be conducted quickly and safely from all 4 sides
- High-Efficiency Cooling System
- Constructed and measured to be ran up to a room temperature of +45°C
- Improves longevity and reliability
- Integrated Oil Separator
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- Oil level can be controlled at all times through inspection glass
- 1 Year Factory Warranty-Parts Only
Specifications
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
68
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
23.4
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Weight
530 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
24 Inches
Product Height
35 Inches
Power Type
Electric
Additional Model Numbers
FAS6, FAS061
Product Specs
+−
Specifications
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
68
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
23.4
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Weight
530 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
24 Inches
Product Height
35 Inches
Power Type
Electric
Additional Model Numbers
FAS6, FAS061
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
How long has this brand been in business? How do there units compare with Sullair or Quincy?
Pat
from Georgia
June 24, 2019
Answer
They are made by FS-Curtis. They are good units, but come with a 1 year parts only warranty.
