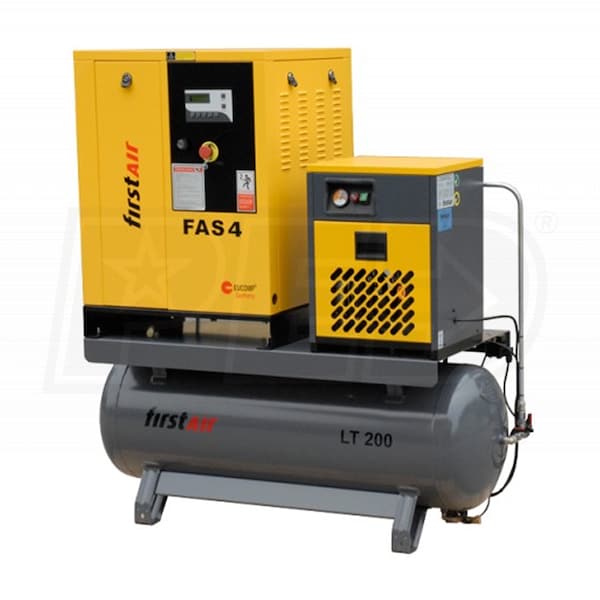

First Air FAS4U 5-HP 53-Gallon Rotary Screw Air Compressor w/Dryer (230V 1-Phase 150PSI)

Model:

FAS041U

Write a Review
$5,509.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Free Shipping$5,509.00Buy Now
Free Freight$5,509.00Visit Site
First Air FAS4U 5-HP 53-Gallon Rotary Screw Air Compressor w/Dryer (230V 1-Phase 150PSI)
First Air FAS4U 5-HP 53-Gallon Rotary Screw Air Compressor w/Dryer (230V 1-Phase 150PSI)
Model: FAS041U
$5,509.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Rotary Screw 1-Phase

CFM

16.6

Tank Size

53

  • Premium Ultra Pack Rotary Air System
  • Designed for industrial applications; Economical operation is guaranteed
  • High quality components ensures durability with constantly high efficiency
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Energy Efficient Electric Motor
  • Explicitly developed for high loads within industrial applications
  • Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil before it enters your network
  • Prevents rust in compressed air piping & avoids damage to air tools
  • High Performance Inlet Filter
  • Prevents contaminants from entering the compressor package
  • Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
  • 53 Gallon Air Receiver w/ Low Noise Sound Enclosure For Quiet Operation
  • Reduces sounds levels to as low as 653 dBA; about the same as a normal conversation
  • Service can be conducted quickly and safely from all 4 sides
  • High-Efficiency Air Cooling System
  • Constructed and measured to be ran up to a room temperature of +45°C
  • Improves longevity and reliability
  • Integrated Oil Separator
  • Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
  • Oil level can be controlled at all times through inspection glass
  • 1 Year Factory Warranty-Parts Only
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FAS041U
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
68
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
16.6
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
53 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Overview
Weight
960 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
60 Inches
Product Width
28 Inches
Product Height
62 Inches
Power Type
Electric
Additional Model Numbers

FAS4U, FAS041U
