First Air FAS041T
First Air FAS041T
Hover to zoom
1 Of 5

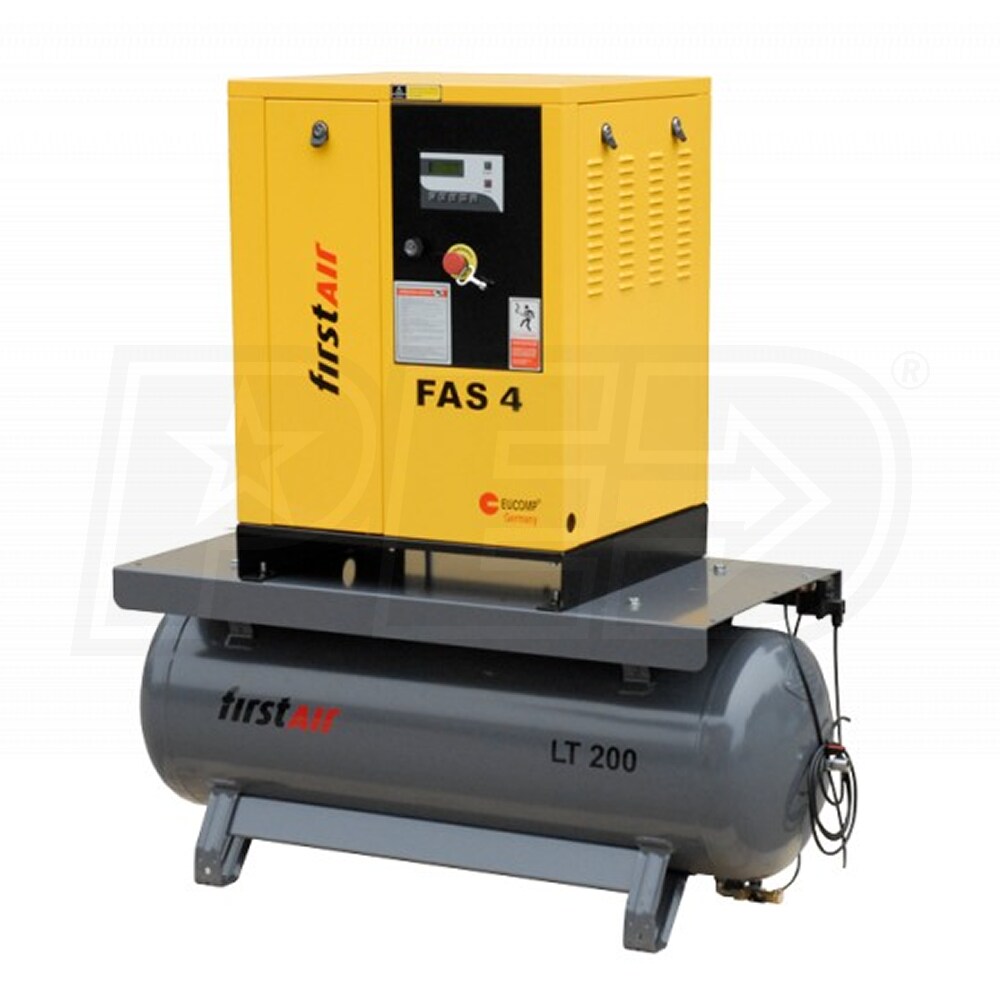

First Air FAS4T 5-HP 53-Gallon Rotary Screw Air Compressor (230V 1-Phase 150PSI)

Model:

FAS041T

Write A Review
$5,396.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

First Air FAS4T 5-HP 53-Gallon Rotary Screw Air Compressor (230V 1-Phase 150PSI)
First Air FAS4T 5-HP 53-Gallon Rotary Screw Air Compressor (230V 1-Phase 150PSI)
Model: FAS041T
$5,396.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

16.6

Tank Size

53

  • Premium Rotary Air System
  • Designed for industrial applications; Economical operation is guaranteed
  • High quality components ensures durability with constantly high efficiency
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Energy Efficient Electric Motor
  • Explicitly developed for high loads within industrial applications
  • Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
  • 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by licensed electrician
  • High Performance Inlet Filter
  • Prevents contaminants from entering the compressor package
  • Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
  • 53 Gallon Air Receiver w/ Low Noise Sound Enclosure For Quiet Operation
  • Reduces sounds levels to as low as 653 dBA; about the same as a normal conversation
  • Service can be conducted quickly and safely from all 4 sides
  • High-Efficiency Air Cooling System
  • Constructed and measured to be ran up to a room temperature of +45°C
  • Improves longevity and reliability
  • Integrated Oil Separator
  • Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
  • Oil level can be controlled at all times through inspection glass
  • 1 Year Factory Warranty-Parts Only
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FAS041T
specs product image PID-80223
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.6
CFM Rated @
150 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
53 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
760 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
60 Inches
Product Width
28 Inches
Product Height
62 Inches
Power Type
Electric
Additional Model Numbers

FAS4T, FAS041T
