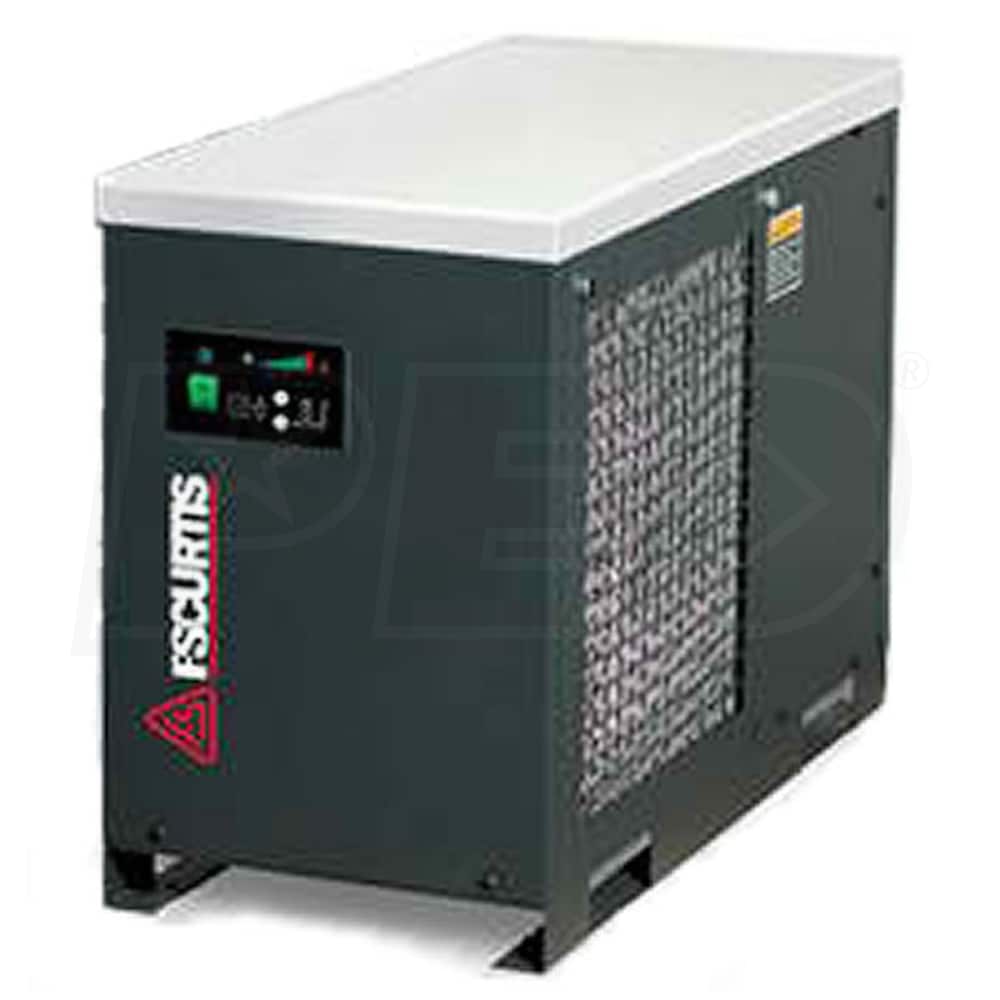

FS-Curtis Standard Non-Cycling Refrigerated Air Dryer (35 CFM)

Model:

RNP35

Write A Review
$1,725.96
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

FS-Curtis Standard Non-Cycling Refrigerated Air Dryer (35 CFM)
FS-Curtis Standard Non-Cycling Refrigerated Air Dryer (35 CFM)
Model: RNP35
$1,725.96
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

35
  • Compact Footprint
  • Removes maximum moisture in minimum space
  • Reliable Performance
  • Increases efficiency to get the most from your equipment
  • Simple to operate & maintain
  • ISO 8573.1 Air Quality Class 4 - 5 Pressure Dew Point
  • Delivers clean, dry, consistent-quality compressed air
  • Copper Tube On-Tube Heat Exchanger
  • Quality components extend service life
  • R-134a Refrigerant
  • Environmentally friendly
  • Flexible Installation
  • Requires 115V, single phase power; 3/4" NPT inlet/outlet
  • Rated for 25 CFM at 100 PSI to 120°F ambient temperature
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RNP35
specs product image PID-11222
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
35
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
250
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
120
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
No
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
92 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
15 Inches
Product Width
16 Inches
Product Height
22 Inches
Power Type
Electric
