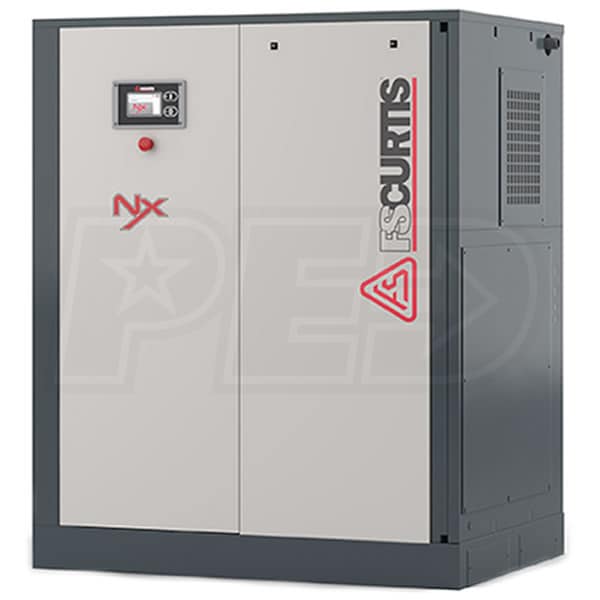

FS-Curtis NxB-18 25-HP Tankless Rotary Screw Air Compressor w/ iCommand Touch Controller (460V 3-Phase 125PSI)
Model:
FNB18CXX4JXPC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
99.6
Tank Size
0
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Premium Efficiency 18kW TEFC Motor
- Produces 25HP on a 460 volt, 3-phase circuit
- Full voltage motor starter meets 100% continuous duty demands
- eCool Technology
- Exclusive technology provides protection from heat
- Reduces thermal stress, increasing motor & electrical life up to 50%
- Increases service life for bearings, hoses, & seals up to 30-50%
- Designed For Quiet Operation (Tank Not Included)
- Smooth & quiet integration of centrifugal blower & drive motors
- Extra-thick insulation reduces noise
- Spin-On Air / Oil Separator
- 1 to 3 PPM oil carryover produces higher quality air; saves money
- Easy access for quick maintenance
- iCommand-Touch Full-Color Screen Controller
- Intuitive & easy to use; captures realtime data to optimize operations
- dBA Noise Shield Reduction
- Unique design is so quiet you can install it closer to where it's needed
- Award Winning Rotary Screw Dependability
- Space-saving design delivers pulsation-free air
- 1 year Factory Warranty extends with registration & FS-Curtis kit
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FNB18CXX4JXPC
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
99.6
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
1415 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49 Inches
Product Width
35 Inches
Product Height
60 Inches
Power Type
Electric
