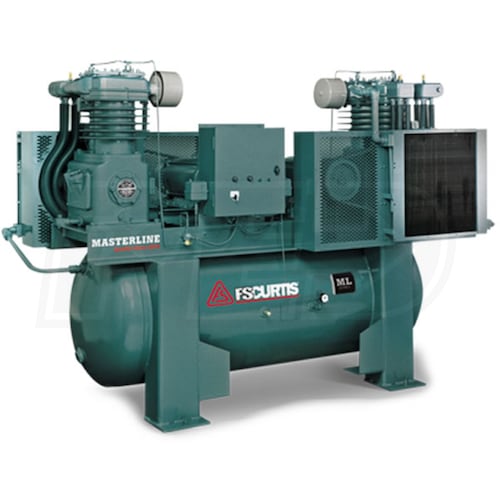

FS-Curtis ML5 5-HP / 10-HP 120-Gallon UltraPack Pressure Lubricated Two-Stage Duplex Masterline Air Compressor (230V 1-Phase)

Model:

FML05D96D1U-A2L1XX

Write A Review
$14,508.40
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

FS-Curtis ML5 5-HP / 10-HP 120-Gallon UltraPack Pressure Lubricated Two-Stage Duplex Masterline Air Compressor (230V 1-Phase)
FS-Curtis ML5 5-HP / 10-HP 120-Gallon UltraPack Pressure Lubricated Two-Stage Duplex Masterline Air Compressor (230V 1-Phase)
Model: FML05D96D1U-A2L1XX
$14,508.40
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

38.2

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Patented Centro-Ring Pressure Lubrication System
  • Delivers 100% continuous duty over an extended service life since all critical components are properly lubricated
  • ML Series reciprocating compressors handle rugged, hot or dirty ambient conditions better than rotary compressors
  • UltraPack Ultimate Value Package
  • Automatic tank drain simplifies maintenance; and the air cooled aftercooler increases air quality
  • Also includes tank isolator pads that reduce vibration & noise
  • Two D96 2-Stage Pumps With 100% Cast-Iron Cylinders, Cylinder Heads, & Connecting Rods
  • Durable pumps deliver 38.2 CFM at 175 PSI; slow RPM extends pump life & reduces noise
  • Oversized tapered main roller bearings ensure long pump life; low oil shut-off protects the pump
  • Premium finned intercooler maximizes heat dissipation; metal intake filter housing is superior to plastic
  • Stainless-steel valve assemblies increase airflow & reliability. Arrives factory oil-filled & ready to begin break-in
  • Two 5-HP NEMA-Designed Electric Motors With Automatic Stop/Start Control
  • Alternator control panel complete with magnetic starters can run as continuous or intermittant duty
  • ASME-Approved 120-Gallon Air Receiver
  • Robust, heavy-duty construction is built tough to last a lifetime in demanding working conditions
  • Automatic condensate tank drain valve simplifies maintenance
  • OSHA-Approved Totally Enclosed Metal Belt Guard
  • Heavy-duty stamped-steel belt guard protects both the drive belt and the operator
  • 1 Year Limited Factory Warranty
  • Can be extended to 5 years on the pump with registration & use of genuine FS-Curtis parts & lubricant
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FML05D96D1U-A2L1XX
specs product image PID-77736
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
38.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
1450 Pounds
Certification
UL, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
83 Inches
Product Width
31 Inches
Product Height
57 Inches
Power Type
Electric
