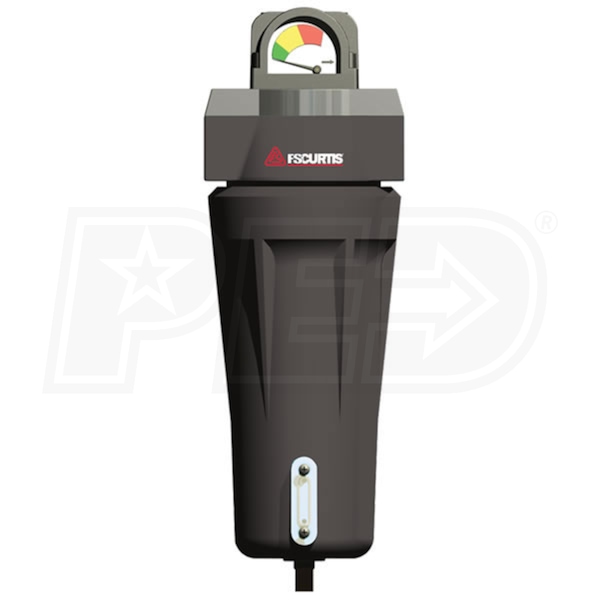

FS-Curtis 1" NPT 100 PSI .008 ppm High Efficiency Oil Removal Filter (100 CFM)
Model: CF5-24-8-DGL
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$353.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

$353.00Buy Now
$353.00Visit Site
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 3 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids
  • Grade 5 General Purpose Two Stage Filter
  • Coalesces & removes oil 99.99+% from air supply
  • Ideal for paint, injection molding, instruments & control valves
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles to 0.01 micron
  • Fits Multiple Applications
  • Handles up to 100 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1 inch NPT fitting (bracket not included)
Specifications
Filter
Filter CFM
100
Oil Remover
Yes
Fitting Size
1"
High Efficiency
Yes
Overview
Weight
6.3 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
15 Inches
Features
Features
  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 3 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids
  • Grade 5 General Purpose Two Stage Filter
  • Coalesces & removes oil 99.99+% from air supply
  • Ideal for paint, injection molding, instruments & control valves
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles to 0.01 micron
  • Fits Multiple Applications
  • Handles up to 100 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1 inch NPT fitting (bracket not included)
Specifications
Filter
Filter CFM
100
Oil Remover
Yes
Fitting Size
1"
High Efficiency
Yes
Overview
Weight
6.3 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
15 Inches
Product Specs
+
Specifications
Filter
Filter CFM
100
Oil Remover
Yes
Fitting Size
1"
High Efficiency
Yes
Overview
Weight
6.3 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
15 Inches
Reviews
(1)
+
FS-Curtis CF5-24-8-DGL Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
Is there a replacement filter available for this unit?
Justin Mathiason
from South Dakota
June 29, 2016
Answer
Please contact FS-Curtis @ 800-388-8370 for replacement filter elements.
