Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda GX
CFM
12.5
Tank Size
10
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Honda GX160 5.5-HP OHV Engine
- 3 quart gas tank lets you work longer between fill-ups
- Commercial grade engine starts easily, runs reliably

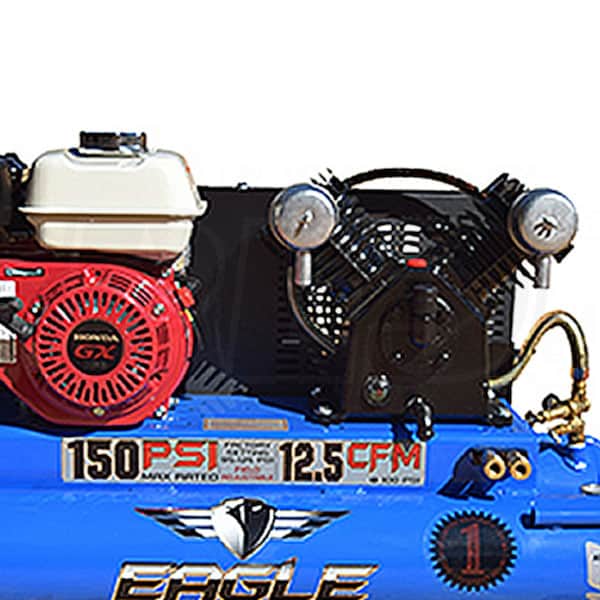

- High Flow, Cast Iron V-Style Pump
- V design minimizes vibration, improves cooling & extends compressor life
- Individual & removable cylinders for smoother, cooler operation
- Belt Drive
- Smooth power transfer delivers 12.5 CFM at 100 PSI; 150 PSI maximum
- Protective all metal belt guard
- Dual Quick Connects
- Lets you run 2 tools at once for maximum efficiency
- Metal Air Filters With Auto-Drop
- Provides a cleaner, quieter air supply
- Oil Level Sight Glass
- Simplifies maintenance
- Two 5-Gallon Air Tanks
- 10 gallon total is ideal for framing, roofing, & finish nailing
- Oversize Tire
- Easily manueuvers around job sites
- Roll bar over tire can be used to help load the compressor
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TT55G
General Information
Product Category
Air Compressor - Portable
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
168 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47 Inches
Product Width
18 Inches
Product Height
25 Inches
Power Type
Gas
UPC
777589000140
Reviews
(5)
Eagle TT55G Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Joshua, the Air Compressor Expert
Does this unit have auto idle down?
Gary G.
from North Dakota
March 20, 2019
How-To Articles
Electric Generators Direct Contest
Thank you so much to everyone who entered the Powered For Anything Contest Give...
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

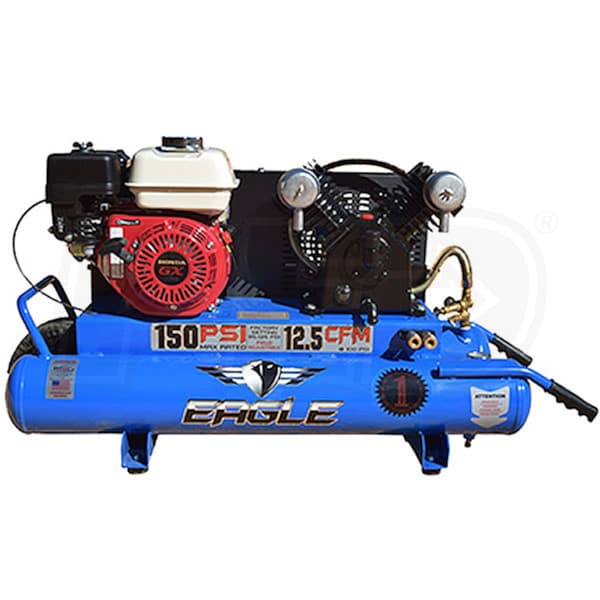

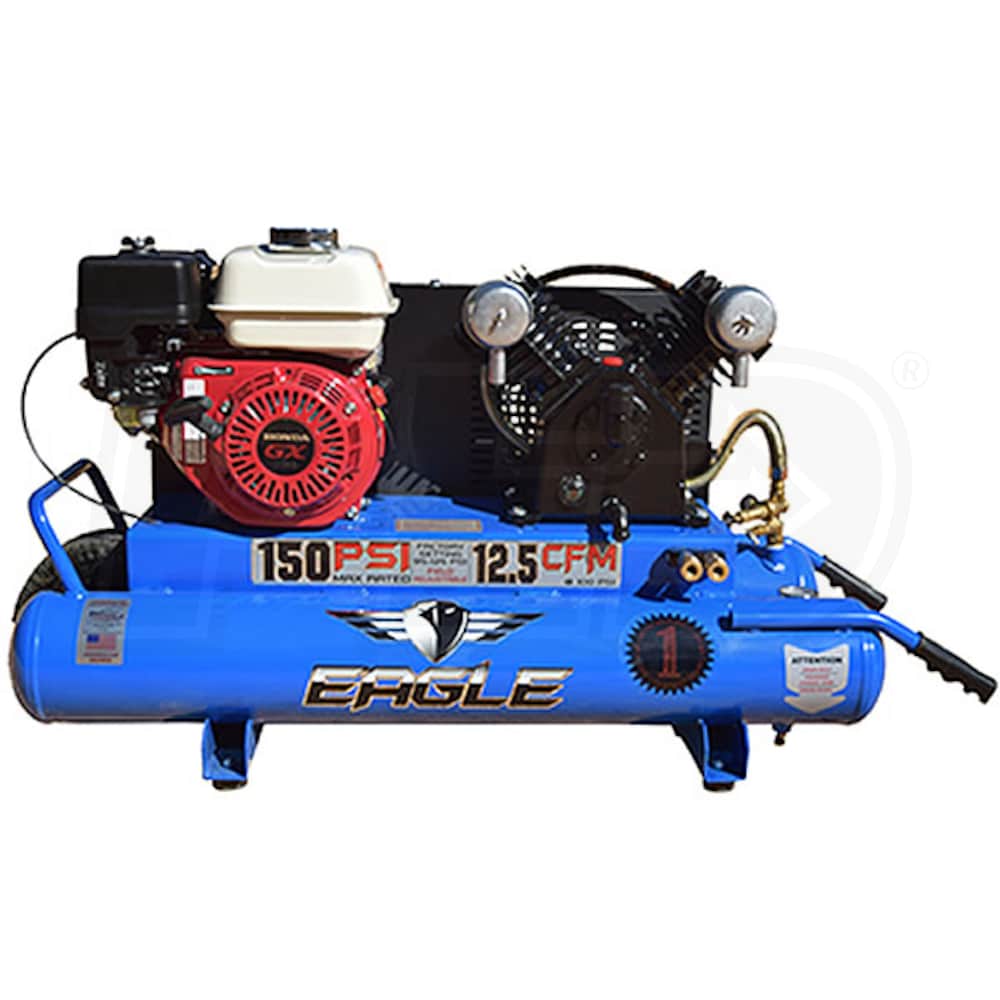

Eagle 5.5-HP 10-Gallon Gas Wheelbarrow Air Compressor w/ Honda Engine
