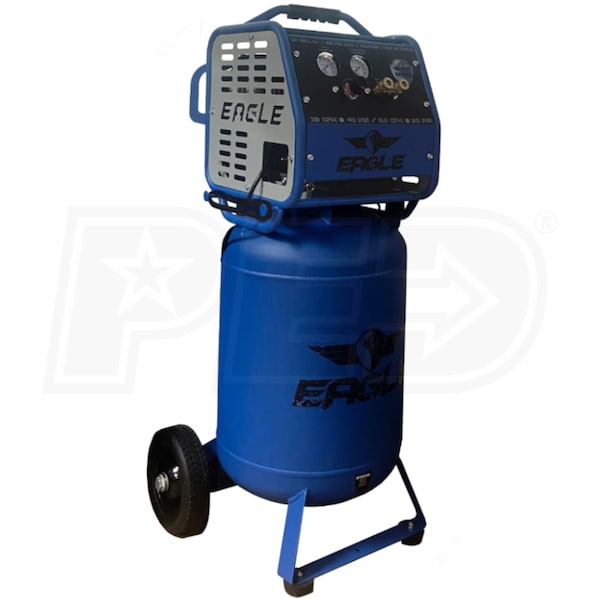

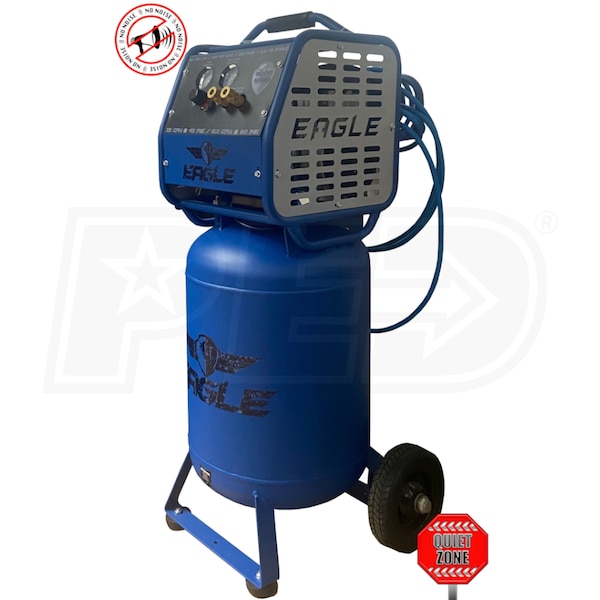

Eagle Silent Series 2.5-HP 20-Gallon Air Compressor (Scratch & Dent)

Model:

EA-6500-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Eagle Silent Series 2.5-HP 20-Gallon Air Compressor (Scratch & Dent)
Eagle Silent Series 2.5-HP 20-Gallon Air Compressor (Scratch & Dent)
Model: EA-6500-SD
Was $869.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Vertical

CFM

6

Tank Size

20



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ***Scratch & Dent Model**** - Cosmetic Damage
  • Scratches on handle
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • Silent Series
  • Rated at 53 dB from 25 feet away; softer than most conversations
  • Life expectancy more than 4 times longer than most oil-free air compressors
  • 2.5-HP (Peak) Motor
  • Draws only 14 amps, works on most household 115V outlets
  • Oil-Free Double Piston Pump System
  • Produces 6 CFM at 90 PSI; 7.9 CFM at 40 PSI with a 50% duty cycle to power small air tools
  • Oil-free system requires no pump maintenance
  • Top-Mounted Control Panel
  • Dual gauges to monitor tool & tank pressure at a glance
  • Two 1/4" air hose quick connectors for fast tool changes
  • Oversized regulator knob is easy to use, even wearing work gloves
  • 20 Gallon Air Tank
  • Easy to transport & store; 125 PSI maximum pressure
  • Lever-Type Tank Drain Valve
  • Simplifies maintenance; extends air tank life
  • Roll Cage Design With Anti-Vibration Feet
  • Never-flat wheels take on stairs & rugged terrain with ease
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EA-6500-SD
specs product image PID-81866
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53
Amp Draw
14
Engine
HP
2.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6
CFM Rated @
90 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
20 Gallons
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
132 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
21.64 Inches
Product Width
18.66 Inches
Product Height
45.96 Inches
Power Type
Electric
UPC
020791503979
