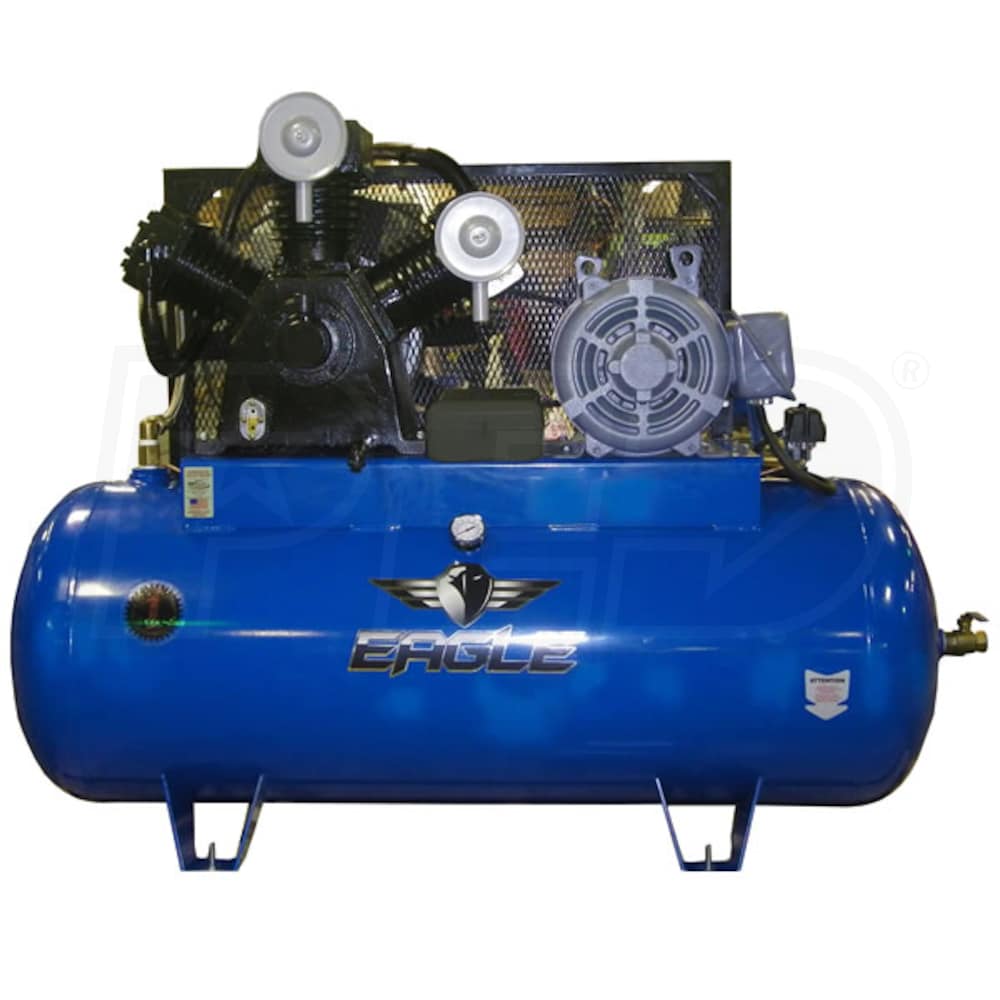

Eagle 15-HP 200-Gallon Two-Stage Air Compressor (230V 3-Phase)

Eagle 15-HP 200-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 153120H2-MS230
$4,699.99
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$4,699.99Buy Now
Free FreightNo Sales Tax* (Except IL)$4,699.99Visit Site
No Sales Tax* (Except IL)$4,749.99Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
45
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
45 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Rugged Compressor With Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • Heavy duty pressure switch has on/ off control
  • Thermally Protected 15-HP 3 Phase Electric Motor
  • Requires a 38.8 Amp circuit; magnetic starter included
  • Metal Air Filters With "Auto Drop" Features
  • Helps compressor run quietly
  • 120 Gallon ASME Air Tank Rated To 200 PSI
  • Convenient oil drain on front of unit for easy maintenance
  • Oil sight glass lets you check level at a glance
  • High Efficiency Reed Valves
  • Provide maximum performance: 45 CFM at 100 PSI
  • Efficient Heat Removal From Pulley Fan
  • Cooler running & longer compressor life
  • Sturdy Metal Belt Guard
  • Protects both the belt & the operator
  • Outlet Valve Included
  • 1" ball valve integrates easily into your system
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
38.8
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Engine Low Oil Shut-off
No
Pump
CFM
45
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
972 Pounds
