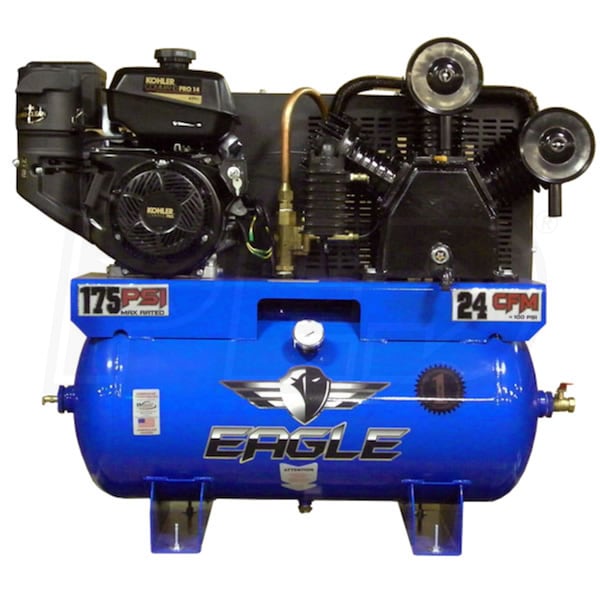

Eagle 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine

Eagle 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Our Price
Compare Prices
Shipping Info
Model: 14G30TRKE
$2,399.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Free Shipping$2,399.99Buy Now
Free Freight$2,399.99Visit Site
$2,449.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Truck Mount
Engine Brand
Kohler
CFM
24
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Kohler
CFM
24 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
  • Truck Mounted 2 Stage Unit Produces 24 CFM @ 100 PSI
  • Sturdy and reliable air pressure wherever you need it
  • Perfect for roofing and framing jobs
  • Ideal for contractor jobsite needs and emergency mobile service
  • 14-HP Kohler Professional Grade Electric Start Engine
  • Quad-Clean™ 4-stage air filtration system
  • Oil Sentry™ automatic low oil engine shutdown system
  • Warm air intake system for cold weather operation
  • Engine Idle Control
  • Reduces operating costs & excessive wear
  • Rugged Removable & Individual Cast Iron Cylinders
  • Provides cooler operation & easy maintenance
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from fly wheel
  • "V" Design
  • Minimizes vibration, improves cooling, extends compressor life
  • High efficiency reed valves for maximum performance
  • Large bore pistons give the ability to run at less RPM
  • Metal Air Filters w/ Automotive Drop-In Style Elements
  • Extends compressor life, easy to maintain
  • Provides added protection from dust and dirt
  • Sturdy metal belt guard protects the belt & the user
  • 30 Gallon ASME Tank
  • Rated to 200 PSI for safety
  • Easy view oil sight gauge
  • Convenient oil drain on front of unit
  • Simplifies maintenance
  • 1 Year Factory Warranty
  • Warranty extends to 2 years w/ purchase of Eagle Service Kit
  • Service kit model EA-SKG021-X
Specifications
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Pump
CFM
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791504068
Grade
Contractor
Style
Truck Mount
Engine Brand
Kohler
CFM
24
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Kohler
CFM
24 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
  • Truck Mounted 2 Stage Unit Produces 24 CFM @ 100 PSI
  • Sturdy and reliable air pressure wherever you need it
  • Perfect for roofing and framing jobs
  • Ideal for contractor jobsite needs and emergency mobile service
  • 14-HP Kohler Professional Grade Electric Start Engine
  • Quad-Clean™ 4-stage air filtration system
  • Oil Sentry™ automatic low oil engine shutdown system
  • Warm air intake system for cold weather operation
  • Engine Idle Control
  • Reduces operating costs & excessive wear
  • Rugged Removable & Individual Cast Iron Cylinders
  • Provides cooler operation & easy maintenance
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from fly wheel
  • "V" Design
  • Minimizes vibration, improves cooling, extends compressor life
  • High efficiency reed valves for maximum performance
  • Large bore pistons give the ability to run at less RPM
  • Metal Air Filters w/ Automotive Drop-In Style Elements
  • Extends compressor life, easy to maintain
  • Provides added protection from dust and dirt
  • Sturdy metal belt guard protects the belt & the user
  • 30 Gallon ASME Tank
  • Rated to 200 PSI for safety
  • Easy view oil sight gauge
  • Convenient oil drain on front of unit
  • Simplifies maintenance
  • 1 Year Factory Warranty
  • Warranty extends to 2 years w/ purchase of Eagle Service Kit
  • Service kit model EA-SKG021-X
Specifications
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Pump
CFM
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791504068
Product Specs
+
Specifications
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Pump
CFM
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791504068
