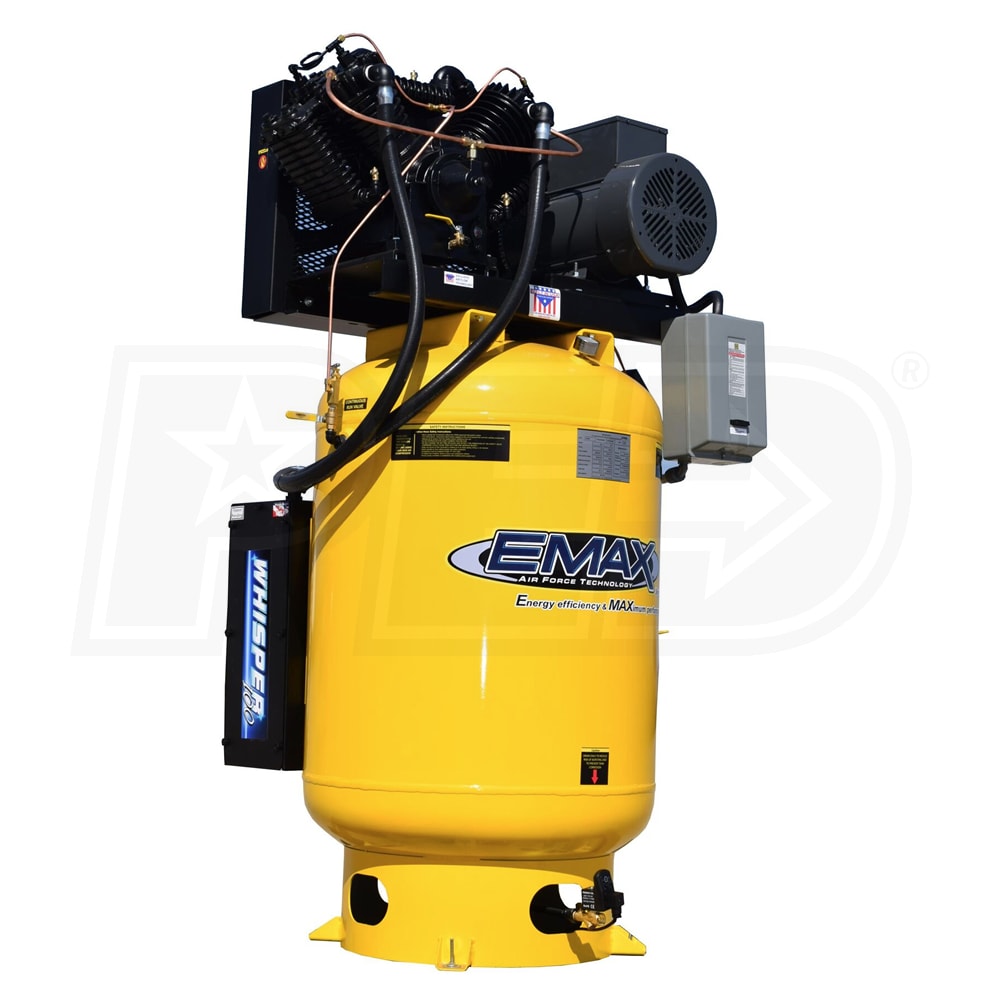

EMAX Industrial Plus Silent 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model: ESP10V120V3-208
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$4,299.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Voltage
Free Shipping$4,299.00Buy Now
Free Freight$4,299.00Visit Site
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
38
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Super Quiet 10-HP Single Phase Industrial Air Compressor
  • Average 62 DB(a) allows for installation closer to point-of-use
  • Can be installed and operated in all garages, farm shops & industrial applications
  • Whisper 100 Series Silencer
  • Reduces dBA ratings up to 25%!
  • Provides 5-layer filtration ideal for heavy airborne particle
  • Two-Stage Solid Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Rebuildable all steel connecting rods w/ replaceable bearing inserts
  • Air Stream Technology
  • Reduces moisture build up & extends pump life
  • Provides 35% lower operating temperature; coolest in the industry
  • 10-HP Industrial Grade TEFC Motor
  • Low 1750 RPM design reduces heat for less & tear
  • Prewired magnetic starter for a trouble-free operation
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Eliminates countless hours of maintenance
  • Adjust the tension and alignment with ease in a few minutes
  • Built-In Intercooler & Aftercooler
  • Allows air to be cooled between stages
  • Second stage cools air before it goes into the tank
  • Auto Tank Drain
  • 110V timer controlled, eliminates daily maintenance
  • Reduces moisture build-up to avoid rust & prolong life
  • 5 Year Factory Warranty
  • Protects your investment
Specifications
Engine
HP
10
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1020 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
41 Inches
Product Width
43 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002014746
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
38
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Super Quiet 10-HP Single Phase Industrial Air Compressor
  • Average 62 DB(a) allows for installation closer to point-of-use
  • Can be installed and operated in all garages, farm shops & industrial applications
  • Whisper 100 Series Silencer
  • Reduces dBA ratings up to 25%!
  • Provides 5-layer filtration ideal for heavy airborne particle
  • Two-Stage Solid Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Rebuildable all steel connecting rods w/ replaceable bearing inserts
  • Air Stream Technology
  • Reduces moisture build up & extends pump life
  • Provides 35% lower operating temperature; coolest in the industry
  • 10-HP Industrial Grade TEFC Motor
  • Low 1750 RPM design reduces heat for less & tear
  • Prewired magnetic starter for a trouble-free operation
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Eliminates countless hours of maintenance
  • Adjust the tension and alignment with ease in a few minutes
  • Built-In Intercooler & Aftercooler
  • Allows air to be cooled between stages
  • Second stage cools air before it goes into the tank
  • Auto Tank Drain
  • 110V timer controlled, eliminates daily maintenance
  • Reduces moisture build-up to avoid rust & prolong life
  • 5 Year Factory Warranty
  • Protects your investment
Specifications
Engine
HP
10
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1020 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
41 Inches
Product Width
43 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002014746
Product Specs
+
Specifications
Engine
HP
10
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1020 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
41 Inches
Product Width
43 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002014746
Reviews
(1)
+
EMAX ESP10V120V3-208 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
How many CFM does this model provide at 175 PSI?
Ken T.
from New York
August 21, 2019
Answer
I inquired with EMAX's tech support for you and they stated about 32 CFM @ 175 PSI.
