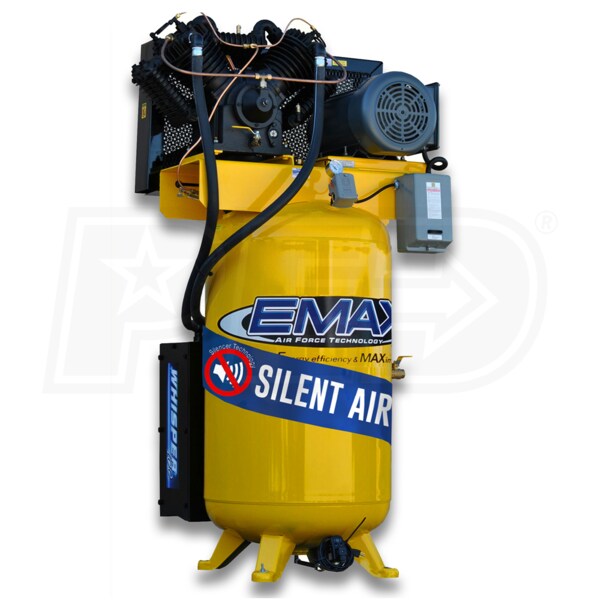

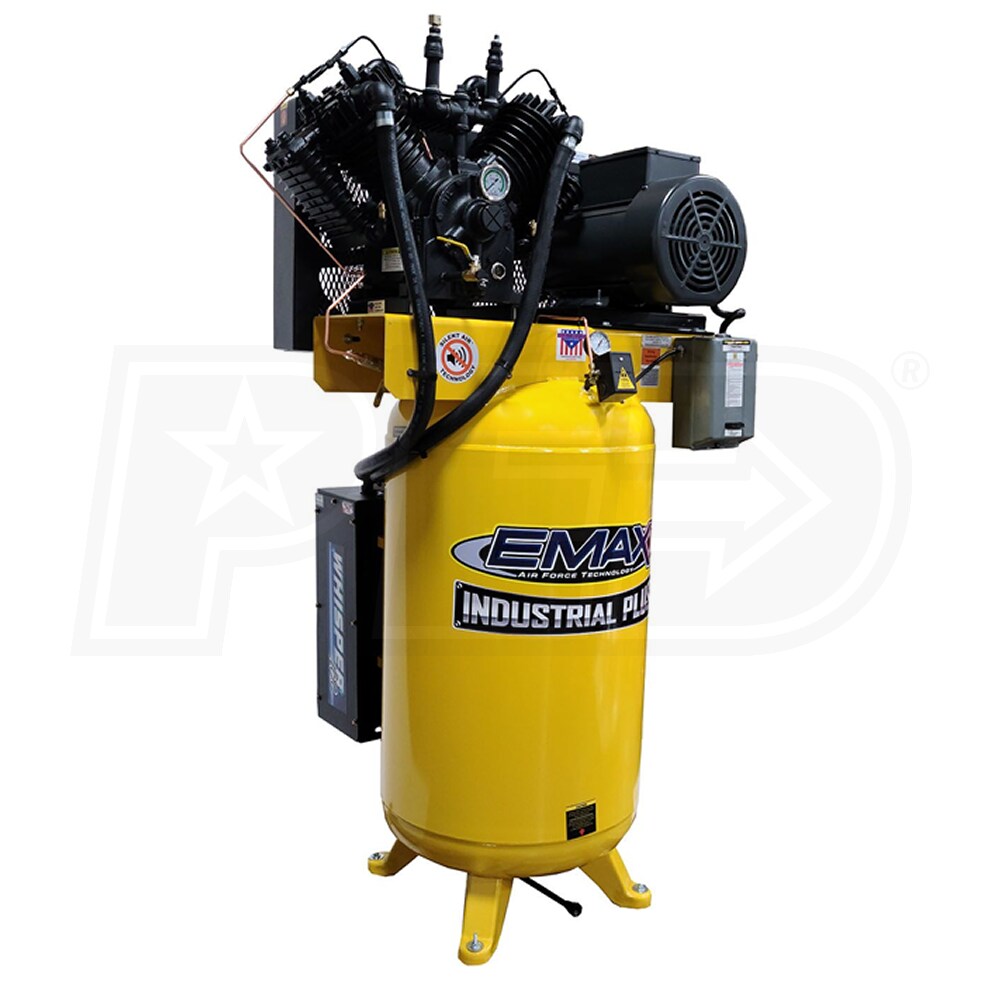

EMAX Industrial Plus Silent 10-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 815002013251
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews(8)
Write a Review
$3,999.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Voltage
Phase
Dryer
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$3,999.00Buy Now
Free Freight$3,999.00Visit Site
Share
  • Product Description
  • 8
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Two-Stage Pressure Lubricated Pump Cast Iron Pump
  • Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Air Stream Technology
  • Provides 35% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life
  • 10-HP TEFC Industrial Grade Motor
  • Low RPM design extends useful life; magnetic starter included
  • Condor pressure switch for reliable starts; OSHA approved metal belt guard
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
  • Dual Timer Automatic Tank Drain
  • 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
  • 5 Year Factory Warranty
  • Protects your investment
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-230, 815002013251
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Two-Stage Pressure Lubricated Pump Cast Iron Pump
  • Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Air Stream Technology
  • Provides 35% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life
  • 10-HP TEFC Industrial Grade Motor
  • Low RPM design extends useful life; magnetic starter included
  • Condor pressure switch for reliable starts; OSHA approved metal belt guard
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
  • Dual Timer Automatic Tank Drain
  • 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
  • 5 Year Factory Warranty
  • Protects your investment
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-230, 815002013251
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-230, 815002013251
