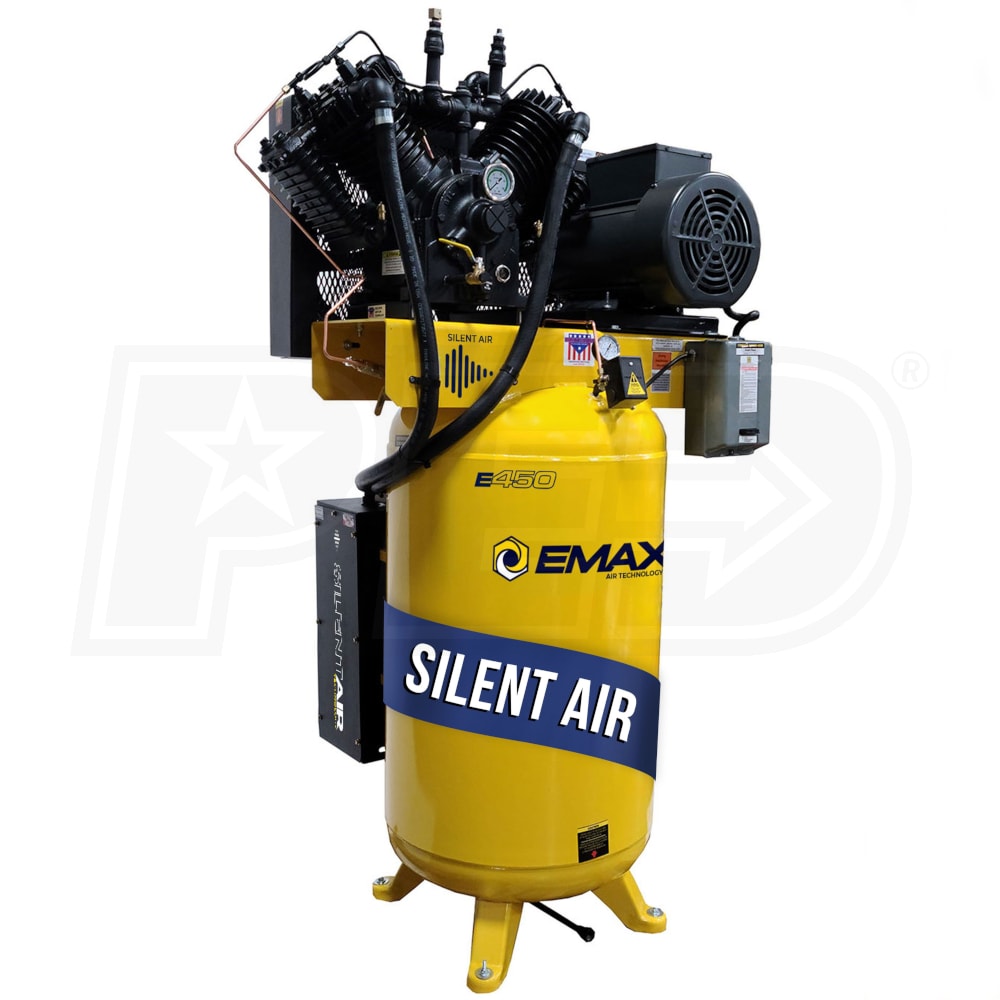

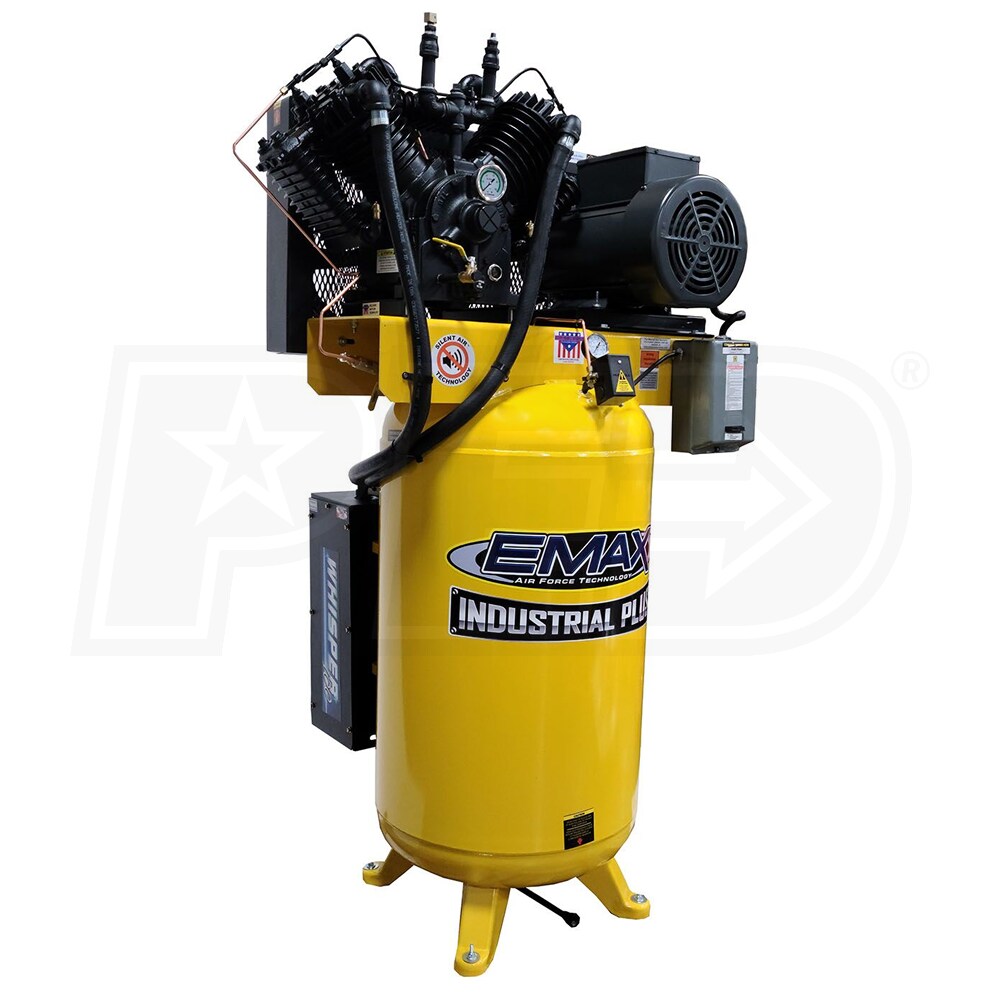

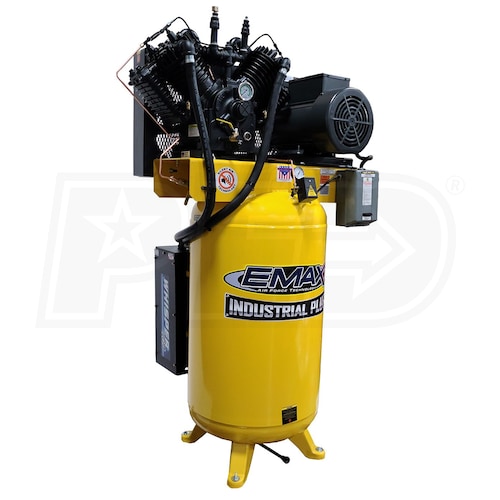

EMAX Industrial Plus 7.5-HP 80-Gallon Two-Stage Air Compressor w/ Silencer (208/230V 1-Phase)

EMAX Industrial Plus 7.5-HP 80-Gallon Two-Stage Air Compressor w/ Silencer (208/230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: ESP07V080V1
$3,369.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping$3,369.00Buy Now
Free Freight$3,369.00Visit Site
$3,049.00Visit Site
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
29
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
29 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Two-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Air Stream Technology
  • Provides 35% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life
  • 7.5-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life; 64 Amp startup
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance
  • 5 Year Factory Warranty
  • Protects your investment
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
UL, CSA, ASME
Dimensions
24L x 34W x 80H
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013190
Grade
Commercial
Style
Two Stage 1-Phase
CFM
29
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
29 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Two-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Air Stream Technology
  • Provides 35% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life
  • 7.5-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life; 64 Amp startup
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance
  • 5 Year Factory Warranty
  • Protects your investment
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
UL, CSA, ASME
Dimensions
24L x 34W x 80H
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013190
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
UL, CSA, ASME
Dimensions
24L x 34W x 80H
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013190
