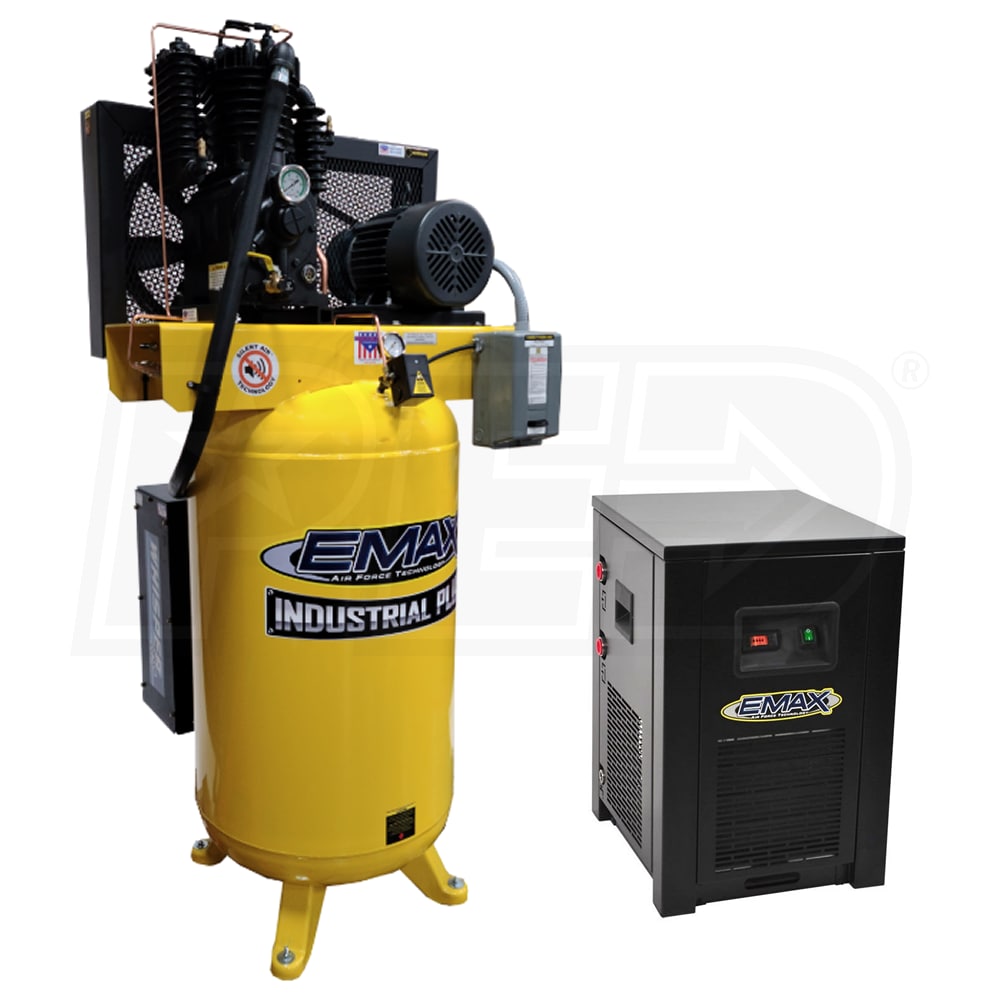

EMAX Industrial Plus Silent 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)

EMAX Industrial Plus Silent 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: ESP05V080I3PK-460
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$3,749.99

Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Voltage
Phase
Dryer
Add-Ons
+$50.00
Free Shipping$3,749.99Buy Now
Free Freight$3,749.99Visit Site
Factory-Direct
Ships in 4-6 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features

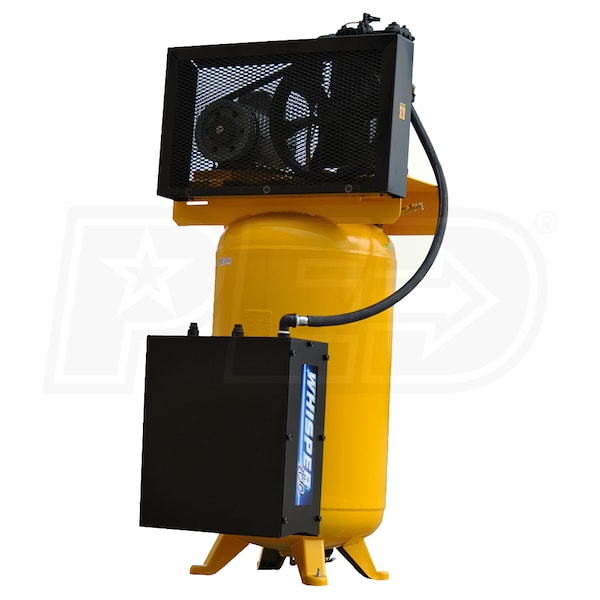

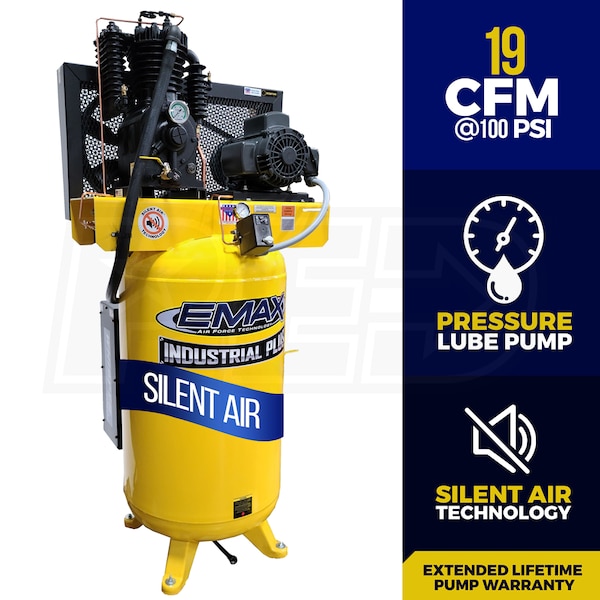

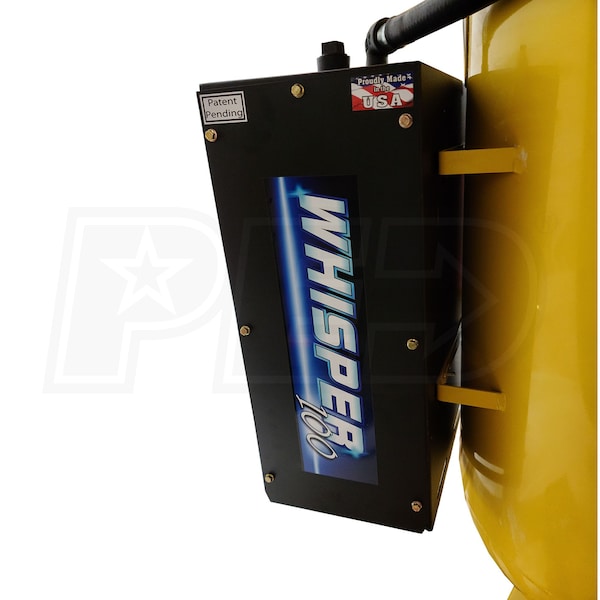

  • Silent Piston Air Industrial System
  • Reduces dBA readings by up to 25%
  • Piston intake noise is trapped and dissipated within the silencer structure

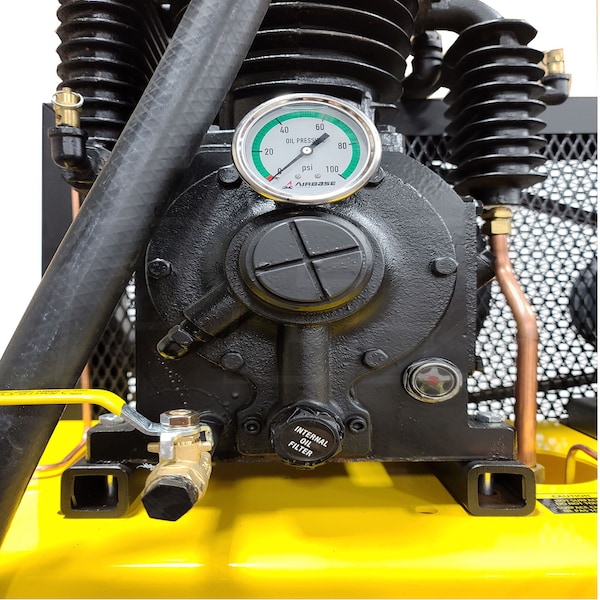

  • Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
  • Designed for up to 50,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • 80 Gallon ASME Receiver With Auto Tank Drain
  • 110V automatic tank drain with dual timers eliminates daily maintenance

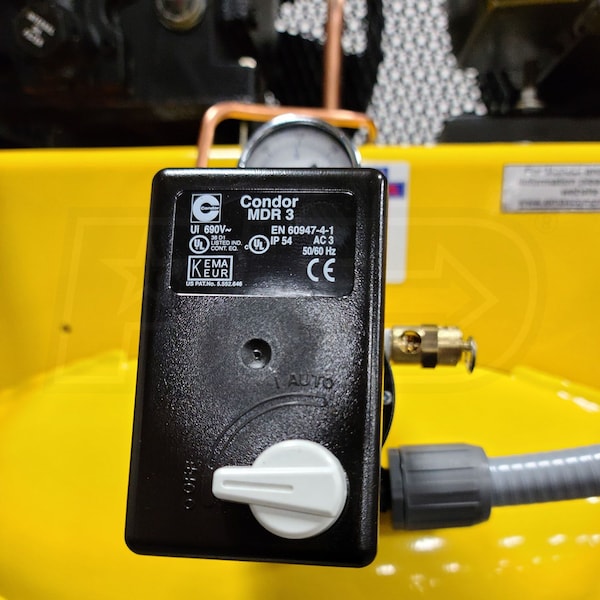

  • Prewired condor starter and pressure switch built into one
  • Industrial Grade Electric Motor
  • Low 1750 RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design
  • Energy efficient 30CFM Refrigerated Air Dryer With Inner Cooler
  • Air is filtered of all solid particles 0.01 micron and larger
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Pulls the heat off the pistons and connecting rods
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
6
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Air Dryer
Auto Drain
Yes
Overview
Weight
620 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Power Type
Electric
UPC
815002014296
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Silent Piston Air Industrial System
  • Reduces dBA readings by up to 25%
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
  • Designed for up to 50,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • 80 Gallon ASME Receiver With Auto Tank Drain
  • 110V automatic tank drain with dual timers eliminates daily maintenance
  • Prewired condor starter and pressure switch built into one
  • Industrial Grade Electric Motor
  • Low 1750 RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design
  • Energy efficient 30CFM Refrigerated Air Dryer With Inner Cooler
  • Air is filtered of all solid particles 0.01 micron and larger
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Pulls the heat off the pistons and connecting rods
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
6
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Air Dryer
Auto Drain
Yes
Overview
Weight
620 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Power Type
Electric
UPC
815002014296
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
6
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Air Dryer
Auto Drain
Yes
Overview
Weight
620 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Power Type
Electric
UPC
815002014296
