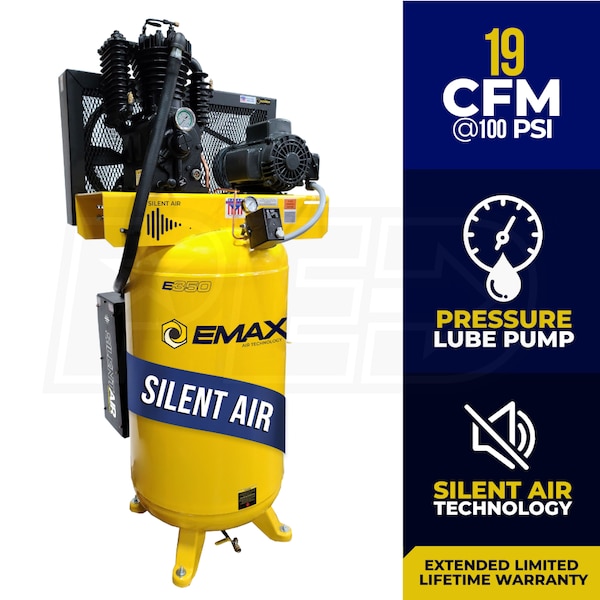

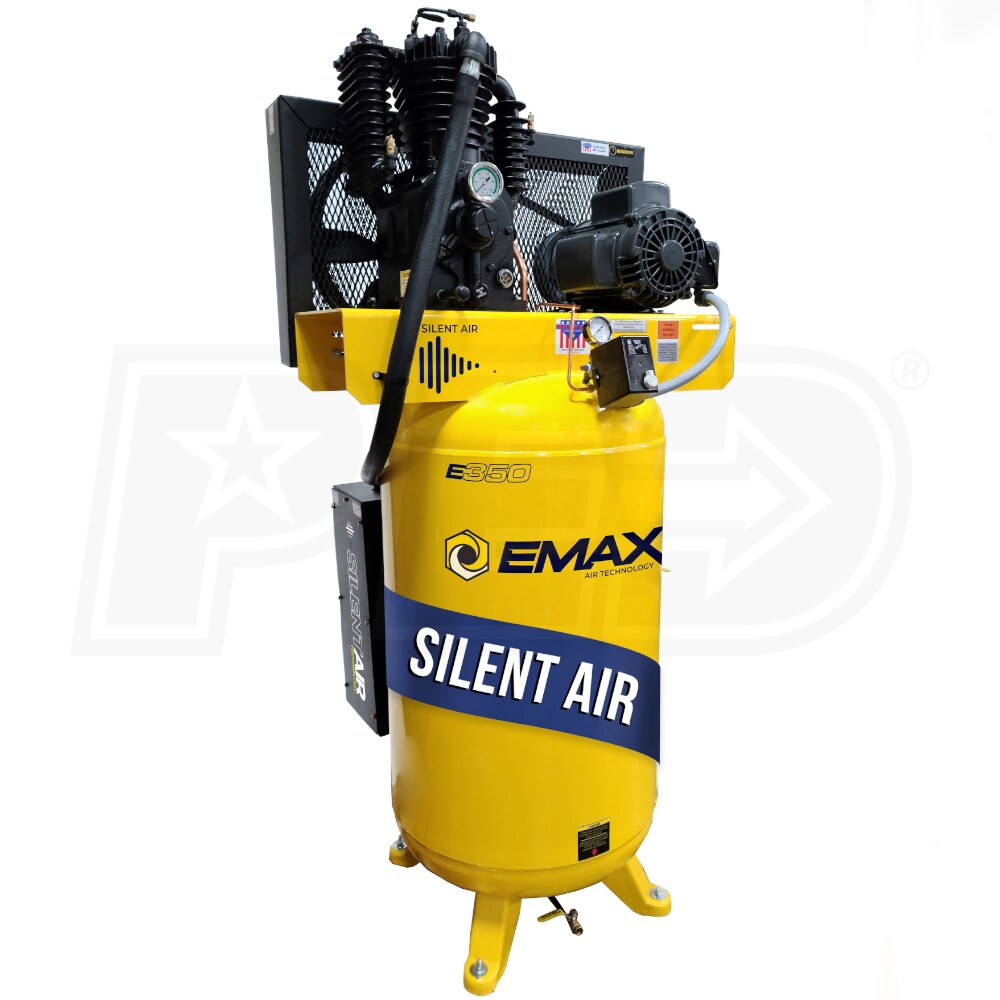

EMAX Industrial Plus 5-HP 80-Gallon Two-Stage Air Compressor w/ Silencer (460V 3-Phase)

EMAX Industrial Plus 5-HP 80-Gallon Two-Stage Air Compressor w/ Silencer (460V 3-Phase)
Model: ESP05V080I3-460
$2,499.00
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$2,499.00Buy Now
Free FreightNo Sales Tax* (Except IL)$2,499.00Visit Site
No Sales Tax* (Except IL)$2,549.00Visit Site
Factory-Direct
Ships in 4-6 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Two-Stage 800 RPM Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Air Stream Technology
  • Provides 35% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life
  • 5-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life; magnetic starter included
  • Condor pressure switch for reliable starts
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V timer controlled, eliminates daily maintenance
  • 5 Year Factory Warranty
  • Protects your investment
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Overview
Certification
UL, CSA, ASME
Weight
620 Pounds
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013183
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Two-Stage 800 RPM Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Air Stream Technology
  • Provides 35% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life
  • 5-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life; magnetic starter included
  • Condor pressure switch for reliable starts
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V timer controlled, eliminates daily maintenance
  • 5 Year Factory Warranty
  • Protects your investment
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Overview
Certification
UL, CSA, ASME
Weight
620 Pounds
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013183
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Overview
Certification
UL, CSA, ASME
Weight
620 Pounds
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013183
