EMAX 7.5-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (230V 3-Phase)

Model:

ERSK070003

Write a Review
$11,105.92
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks

Free Shipping$11,105.92Buy Now
Free Freight$11,105.92Visit Site

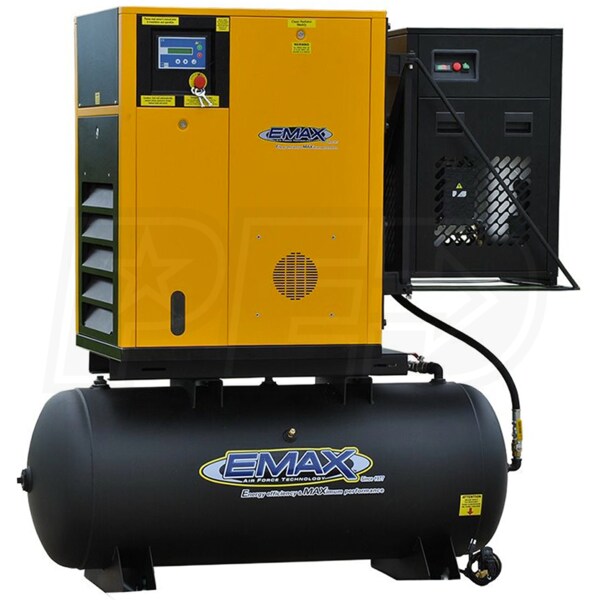

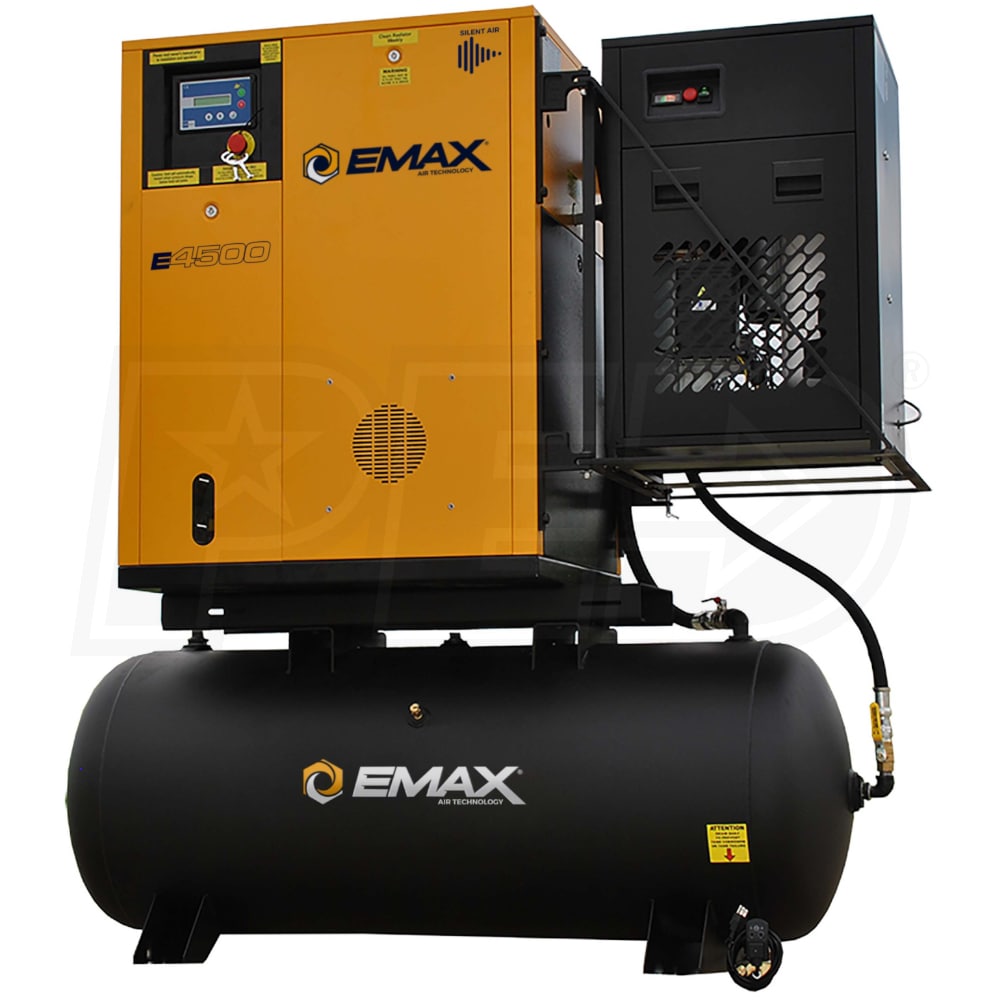

EMAX   7.5-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (230V 3-Phase)
EMAX 7.5-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (230V 3-Phase)
Model: ERSK070003
$11,105.92
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Rotary Screw 3-Phase

CFM

29

Tank Size

120

  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Rotary Screw Air System
  • 208/230V 3-phase drives 1750 RPM motor
  • Drive-Tek
  • Reduces energy demand up to 33%; easy-access filters & separators
  • Standard Y/Delta Soft Start Motor
  • Provides reduced energy demand & amp draw on start up
  • PLC Controller - Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Also monitors remote start/stop & automatic tank drain
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower 62 dBA operation than a typical rotary screw
  • EMAX EDRCF1150030 30 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Coalescing 65 CFM Filter Included With 120 Gallon ASME Air Tank
  • Removes oil, water & particles to provide cleaner air
  • 10 Year/ 5 Year/ 2 Year Limited Factory Warranty
  • 10- air end pump w/service kit; 5- cabinet & motor; 2- electrical
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SERVICEKIT001A Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERSK070003
specs product image PID-14535
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1195 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
80 Inches
Product Width
38 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002010687
