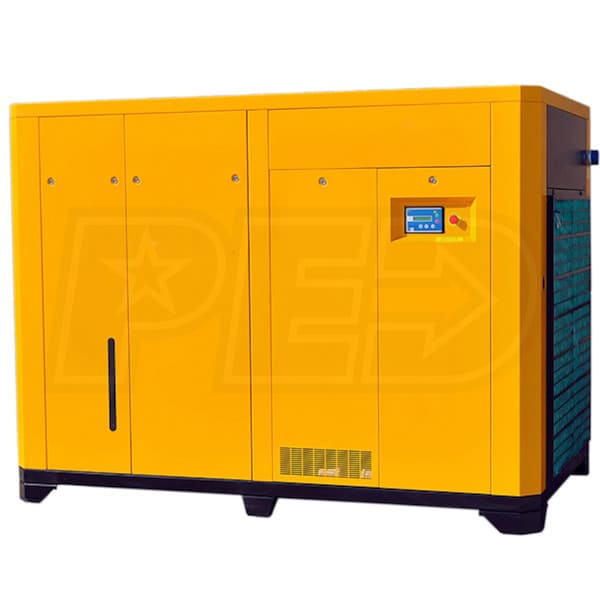

EMAX 100-HP Rotary Screw Air Compressor (460V 3-Phase)

EMAX 100-HP Rotary Screw Air Compressor (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: 815002010427
$23,623.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$23,623.00Buy Now
Free Freight$23,623.00Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
423
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
423 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Drive-Tek
  • Reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Reduced energy demand & amp draw on start up
  • PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 423.6 CFM at 100 PSI (145 PSI maximum)
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 80 dBA; 2" NPT air outlet
  • Designed For Use With Stationary Air Receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • 10 Year Limited Factory Pump Warranty (See Manual For Details)
  • 5 year factory warranty on cabinet & motor; 2 years on rest of unit
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SERVICEKIT019 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
100
Pump
CFM
423
CFM Rated @
100 PSI
Max PSI
145 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
3606 Pounds
Certification
UL/CSA/ETL/ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
82 Inches
Product Width
50 Inches
Product Height
73 Inches
Power Type
Electric
Additional Model Numbers
ERS1000003-460, 815002010427
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
423
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
423 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Drive-Tek
  • Reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Reduced energy demand & amp draw on start up
  • PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 423.6 CFM at 100 PSI (145 PSI maximum)
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 80 dBA; 2" NPT air outlet
  • Designed For Use With Stationary Air Receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • 10 Year Limited Factory Pump Warranty (See Manual For Details)
  • 5 year factory warranty on cabinet & motor; 2 years on rest of unit
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SERVICEKIT019 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
100
Pump
CFM
423
CFM Rated @
100 PSI
Max PSI
145 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
3606 Pounds
Certification
UL/CSA/ETL/ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
82 Inches
Product Width
50 Inches
Product Height
73 Inches
Power Type
Electric
Additional Model Numbers
ERS1000003-460, 815002010427
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
100
Pump
CFM
423
CFM Rated @
100 PSI
Max PSI
145 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
3606 Pounds
Certification
UL/CSA/ETL/ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
82 Inches
Product Width
50 Inches
Product Height
73 Inches
Power Type
Electric
Additional Model Numbers
ERS1000003-460, 815002010427
