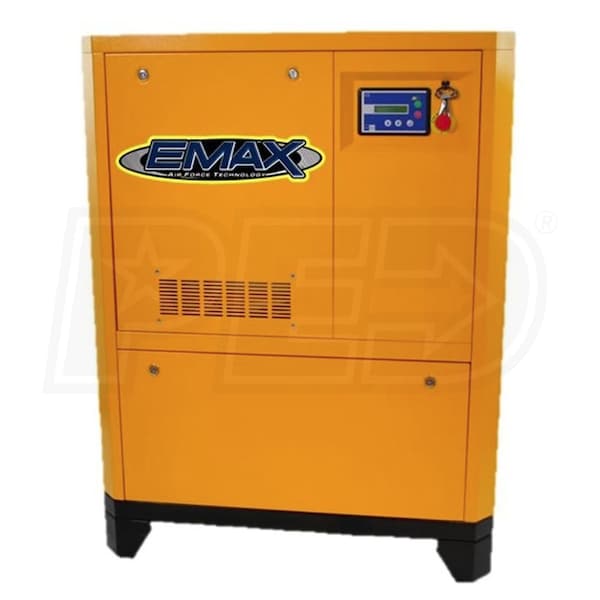

EMAX 30-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)
EMAX 30-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
132
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
132 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Too Large For Liftgate Service, Shipping Dock Or Forklift Required
- Ultra-Quiet Rotary Screw Operation
- Delivers enhanced reliability with ultimate energy efficiency
- Drive-Tek reduces energy demand up to 33% for huge savings
- Continuous 100% duty cycle operates at normal conversation level
- Premium Industrial TEFC Direct Drive Motor
- Runs at 1750 RPM for less wear and tear
- No belt maintenance & longer bearing life makes it worry free
- Standard Y-Delta Soft Start
- Reduces energy demand and amp draw on startup
- Creates less heat to increase compressors lifetime
- Recommended Breaker: 100 Amp @ 208/230V - 50 Amp @ 460V
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- German built with 10-year warranty & 70,000 running hours
- Advanced Programmable Logistic Controller
- Easy to use remote with timed start/stop and low oil shutdown
- Monitors maintenance, temperature, oil level, filtration, hours and much more
- Heavy-Duty Sound Attenuated Cabinet
- Offers lower decibel rating with easy access to critical components
- Designed for use with stationary air receiver (Not Included)
- Air receivers can be purchased separately to meet your specific needs
- Spin-Tek
- Unique tool-less oil filters & air/oil separators
- Genuine Mann filters reduce air end contamination & harmful elements
- Best Warranty In The Industry
- SERVICEKIT005 Maintenance Kit required to validate warranty coverage
- 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
72 Amp @ 208/230V- 36 Amp @ 460V
Engine
HP
30
Engine Low Oil Shut-off
Yes
Pump
CFM
132
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1205 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
40 Inches
Product Width
38 Inches
Product Height
43 Inches
Power Type
Electric
UPC
815002014623
Grade
Style
CFM
132
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
132 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Too Large For Liftgate Service, Shipping Dock Or Forklift Required
- Ultra-Quiet Rotary Screw Operation
- Delivers enhanced reliability with ultimate energy efficiency
- Drive-Tek reduces energy demand up to 33% for huge savings
- Continuous 100% duty cycle operates at normal conversation level
- Premium Industrial TEFC Direct Drive Motor
- Runs at 1750 RPM for less wear and tear
- No belt maintenance & longer bearing life makes it worry free
- Standard Y-Delta Soft Start
- Reduces energy demand and amp draw on startup
- Creates less heat to increase compressors lifetime
- Recommended Breaker: 100 Amp @ 208/230V - 50 Amp @ 460V
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- German built with 10-year warranty & 70,000 running hours
- Advanced Programmable Logistic Controller
- Easy to use remote with timed start/stop and low oil shutdown
- Monitors maintenance, temperature, oil level, filtration, hours and much more
- Heavy-Duty Sound Attenuated Cabinet
- Offers lower decibel rating with easy access to critical components
- Designed for use with stationary air receiver (Not Included)
- Air receivers can be purchased separately to meet your specific needs
- Spin-Tek
- Unique tool-less oil filters & air/oil separators
- Genuine Mann filters reduce air end contamination & harmful elements
- Best Warranty In The Industry
- SERVICEKIT005 Maintenance Kit required to validate warranty coverage
- 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
72 Amp @ 208/230V- 36 Amp @ 460V
Engine
HP
30
Engine Low Oil Shut-off
Yes
Pump
CFM
132
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1205 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
40 Inches
Product Width
38 Inches
Product Height
43 Inches
Power Type
Electric
UPC
815002014623
Product Specs
+−
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
72 Amp @ 208/230V- 36 Amp @ 460V
Engine
HP
30
Engine Low Oil Shut-off
Yes
Pump
CFM
132
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1205 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
40 Inches
Product Width
38 Inches
Product Height
43 Inches
Power Type
Electric
UPC
815002014623
