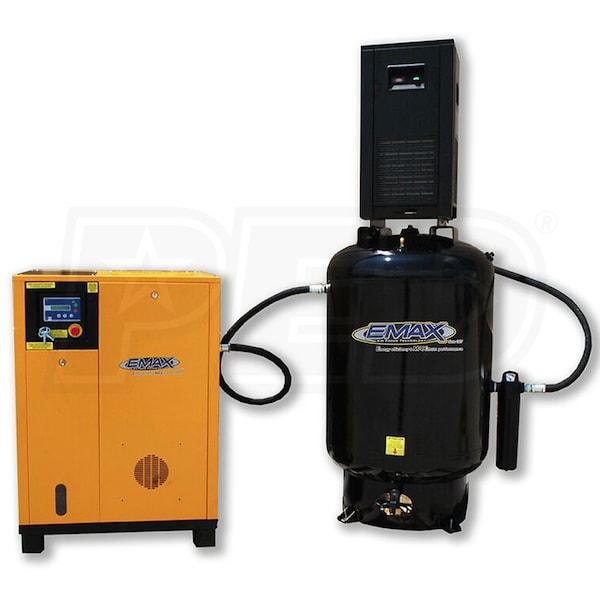

EMAX 10-HP 120-Gallon Non-Mounted Rotary Screw Air Compressor Fully Packaged w/Dryer (208-230V 1-Phase)
Model:
ERS010PKG1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
45
Tank Size
120
- Ultra-Quiet Non-Mounted Rotary Screw Operation
- Delivers enhanced reliability with ultimate energy efficiency
- Continuous 100% duty cycle operates at normal conversation level
- Drive-Tek
- Reduces energy demand up to 33% for huge savings
- Highest quality components with professional workmanship
- Standard Y-Delta Soft Start Motor
- Runs at 1750 RPM for less wear and tear
- Reduces energy demand and amp draw on startup
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- German built with 10-year warranty & 70,000 running hours
- Advanced Programmable Logistic Controller
- Easy to use remote with timed start/stop and low oil shutdown
- Monitors maintenance, temperature, oil level, filtration, hours and much more
- Heavy-Duty Sound Attenuated Cabinet
- Offers lower decibel rating with easy access to critical components
- 120-gallon ASME air tank receiver with timed automatic drain valve
- Spin-Tek
- Unique tool-less oil filters & air/oil separators
- Genuine Mann filters reduce air end contamination & harmful elements
- EMAX EDRCF1150058 58 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
- Air is filtered of all solid particles 0.01 micron and larger
- Energy efficient with coalescing filter built in auto drain
- Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
- Best Warranty In The Industry
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- 10-year limited warranty on rotary air end & 5-year limited motor warranty with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
- Components Are Shipped On 3 Separate Pallets
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ERS010PKG1
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
45
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
Yes
Air Dryer
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
58
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
140
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
562 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Rotary
Product Length
26 Inches
Product Width
34 Inches
Product Height
43 Inches
Dimensions
Tank:36"Lx32"W x54"H - 330lbs Dryer:24"Lx19"Wx30"H - 120lbs
Power Type
Electric
UPC
815002014777
