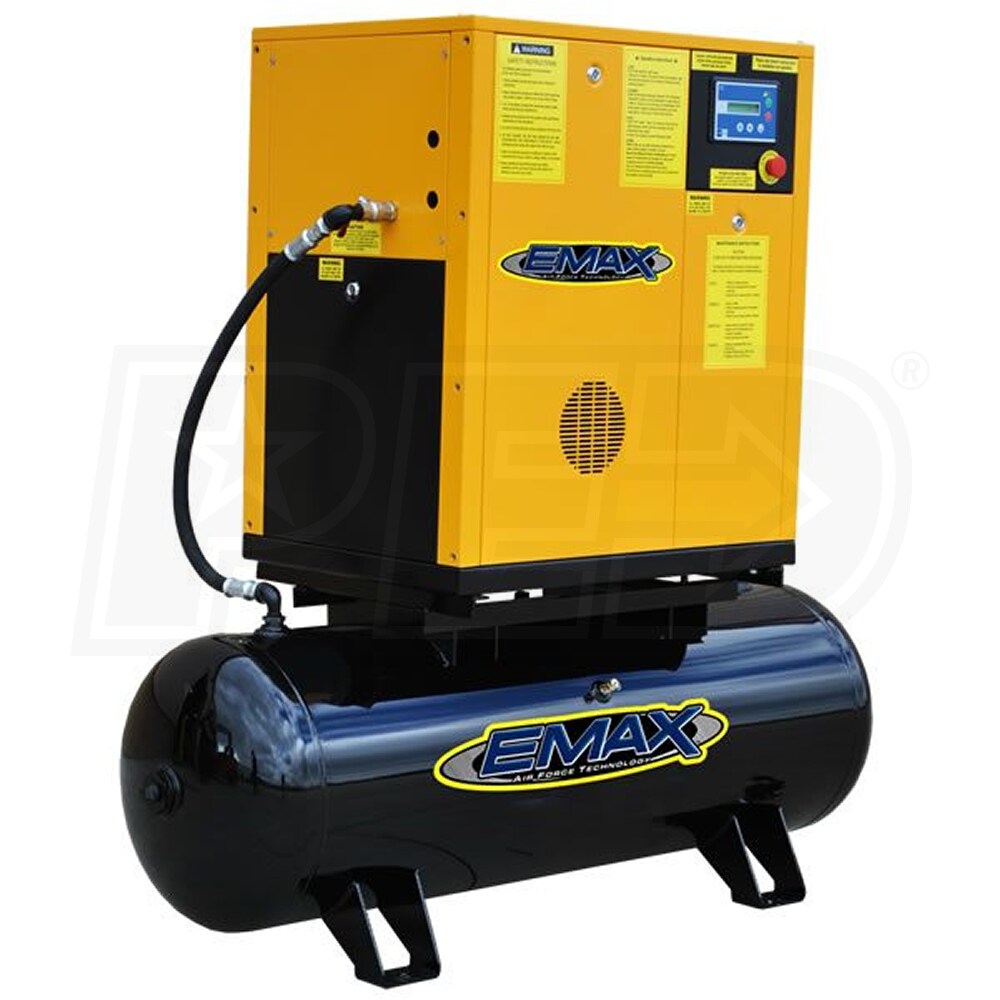

EMAX 7.5-HP 120-Gallon Rotary Screw Air Compressor (208/230V 1-Phase)

Name: EMAX 7.5-HP 120-Gallon Rotary Screw Air Compressor (208/230V 1-Phase)
Brand: EMAX
SKU: 85720
Price: 10813.00 USD
Availability: InStock

Model:

ERS0071201

Write A Review

$10,813.00

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

Factory-Direct

Ships in 6-8 Weeks

EMAX 7.5-HP 120-Gallon Rotary Screw Air Compressor (208/230V 1-Phase)

Model: ERS0071201

$10,813.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Joshua, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

29

Tank Size

120

Too Large For Liftgate Service, Shipping Dock Or Forklift Required
Ultra-Quiet Rotary Screw Operation
Delivers enhanced reliability with ultimate energy efficiency
Continuous 100% duty cycle operates at normal conversation level
Drive-Tek
Reduces energy demand up to 33% for huge savings
Highest quality components with professional workmanship
Standard Y-Delta Soft Start Motor
Runs at 1750 RPM for less wear and tear
Reduces energy demand and amp draw on startup
Precision Engineered Rotary Air End
Highly efficient design provides maximum discharge
German built with 10-year warranty & 70,000 running hours
Heavy-Duty Sound Attenuated Cabinet
Offers lower decibel rating with easy access to critical components
120-gallon ASME air tank receiver with timed automatic drain valve
Advanced Programmable Logistic Controller
Easy to use remote with timed start/stop and low oil shutdown
Monitors maintenance, temperature, oil level, filtration, hours and much more
Spin-Tek
Unique tool-less oil filters & air/oil separators
Genuine Mann filters reduce air end contamination & harmful elements
Best Warranty In The Industry
SERVICEKIT001A Maintenance Kit required to validate warranty coverage
10-year limited warranty on rotary air end & 5-year limited motor warranty with purchase of Maintenance Service Kit - all other components are 5-years, including PLC

California residents see

Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.

For more information go to: www.p65Warnings.ca.gov

Specifications

ERS0071201

General Information

Product Category

Air Compressor - Stationary

Motor

Voltage

208-230 Volt AC

Phase

1-Phase

dBA

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

Amp Draw

Recommended Breaker

50 Amp Breaker

Engine

7.5

Engine Low Oil Shut-off

Yes

Pump

CFM

Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications

CFM Rated @

100 PSI

Max PSI

PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver

145 PSI

Pump Type

Rotary

After Cooler

An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor

Pump Drive

Belt Drive

Oil Type

Oil Lubricated

Duty Cycle

100%

Tank

Tank Size

120 Gallons

Tank Included

Yes

Tank Outlet

3/4 Inch

Electronic Drain Valve

The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining

Yes

Tank Orientation

Horizontal

Accessories

Air Dryer

Air Filter

Yes

Overview

Product Category

Air Compressor - Stationary

Weight

1195 Pounds
