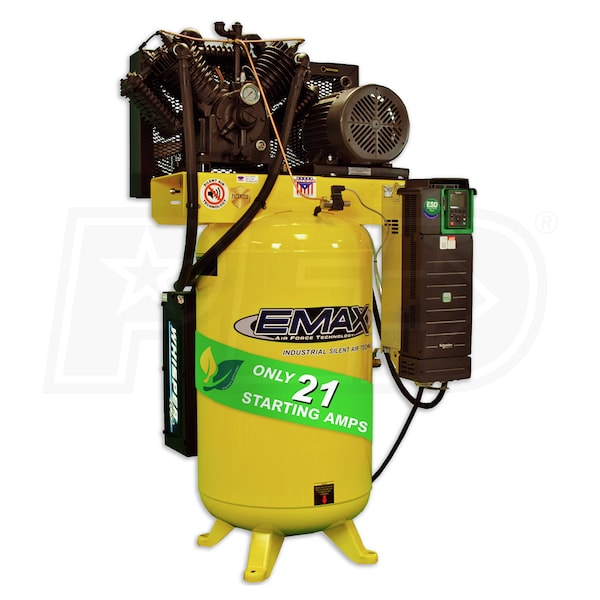

EMAX Industrial Smart Air Silent 7.5-HP 80-Gallon Variable Speed Two-Stage Air Compressor (208/230V 1-Phase & 208/230V 3-Phase)
Model:
EPV07V080V13
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-3 Phase
CFM
31
Tank Size
80
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- EMAX Smart Air, Energy Savings Air Compressor
- Saves up to $5,000.00 per year in energy savings
- 84% energy saving on start-ups & 40% during run cycles
- At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)

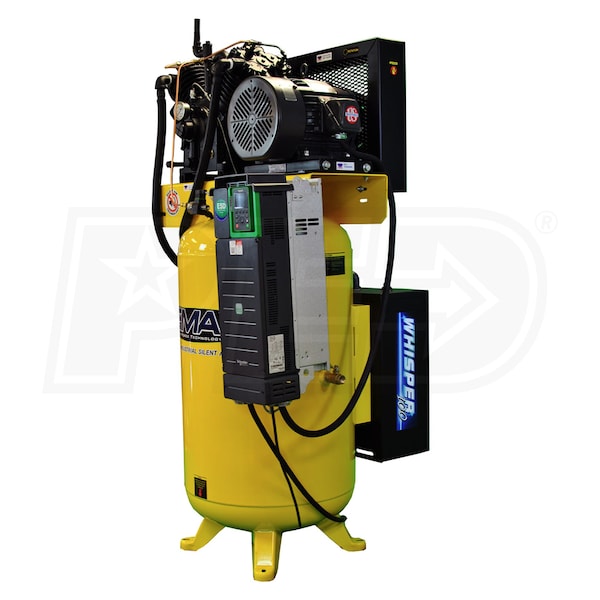

- NEW Variable Frequency Drive (VFD) Technology
- Enables larger units to be used in home garages & small shops
- Allows user to operate in single or 3-phase power with voltages ranging from 208-230V
- Variable Speed Drive (VSD) Technology
- Air demand sensor automatically changes pump speed & air output
- Soft start saves up to 7 times starting energy; 10-yr motor warranty
- Motor gradually increases RPM, keeping startup AMP's at bare minimum

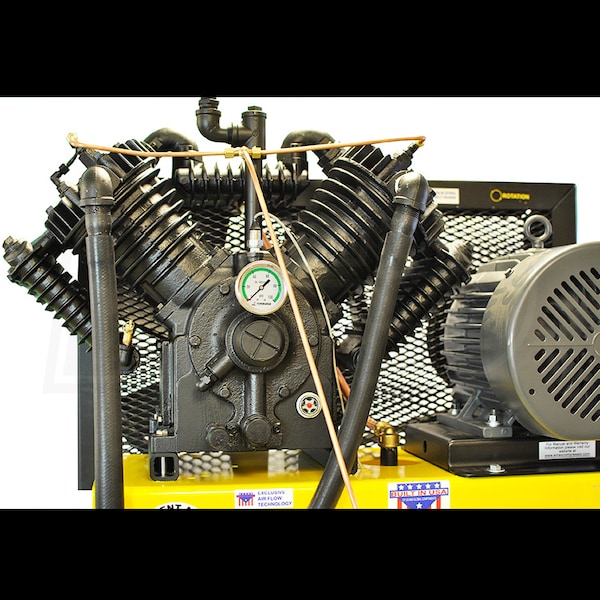

- Solid Cast-Iron Pressure Lubricated Pump
- Lifetime pump warranty w/ purchase of annual maintenance kit
- 275 to 800 variable speed pump RPM provides longer lifespan
- Whisper Series Silencer Air System
- Reduces DB(a) rating by as much as 50%
- Average 63 DB(a) allows for installation closer to point-of-use

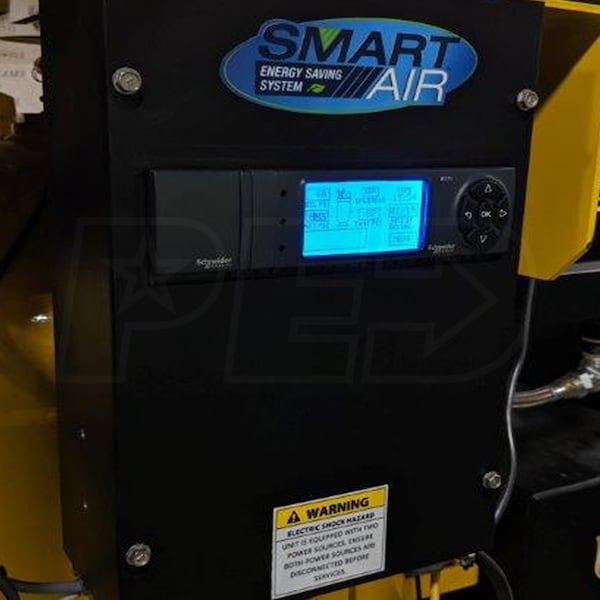

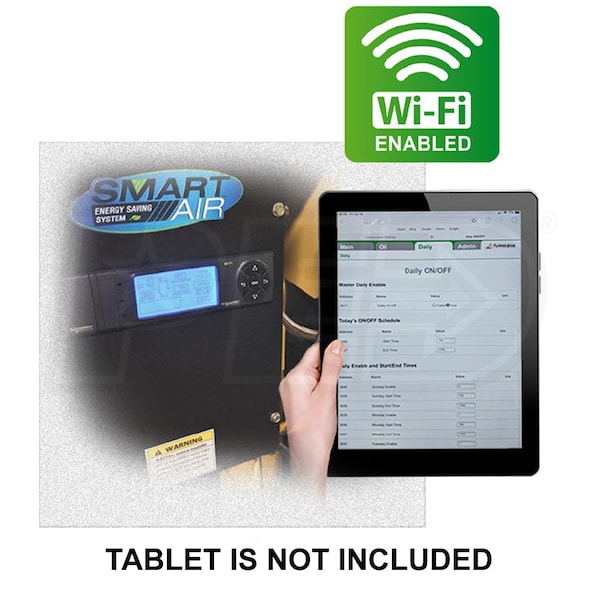

- Fully Programmable PLC Touch Screen Logic Controller
- Set date, hours of operation and PSI & RPM ranges
- Digitally displays kW energy savings while unit is running
- Programmable timed starts/stops for each day of week
- Automatic Shutdown & Displayed Maintenance Warnings
- Helps reduce yearly maintenance cost
- Indicates service maintenance for filters and oil
- Alarm shutdowns include: low oil, motor overload, high/low voltage and loss of phase
- Automatic Electronic Tank Drain w/Dual Timer
- Eliminates daily maintenance and reduces moisture build-up
- Protects 80-gallon ASME air tank and air lines from rust
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- FILTERKIT023 Maintenance Kit required to validate warranty coverage
- 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
- Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EPV07V080V13
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
758 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002015613
