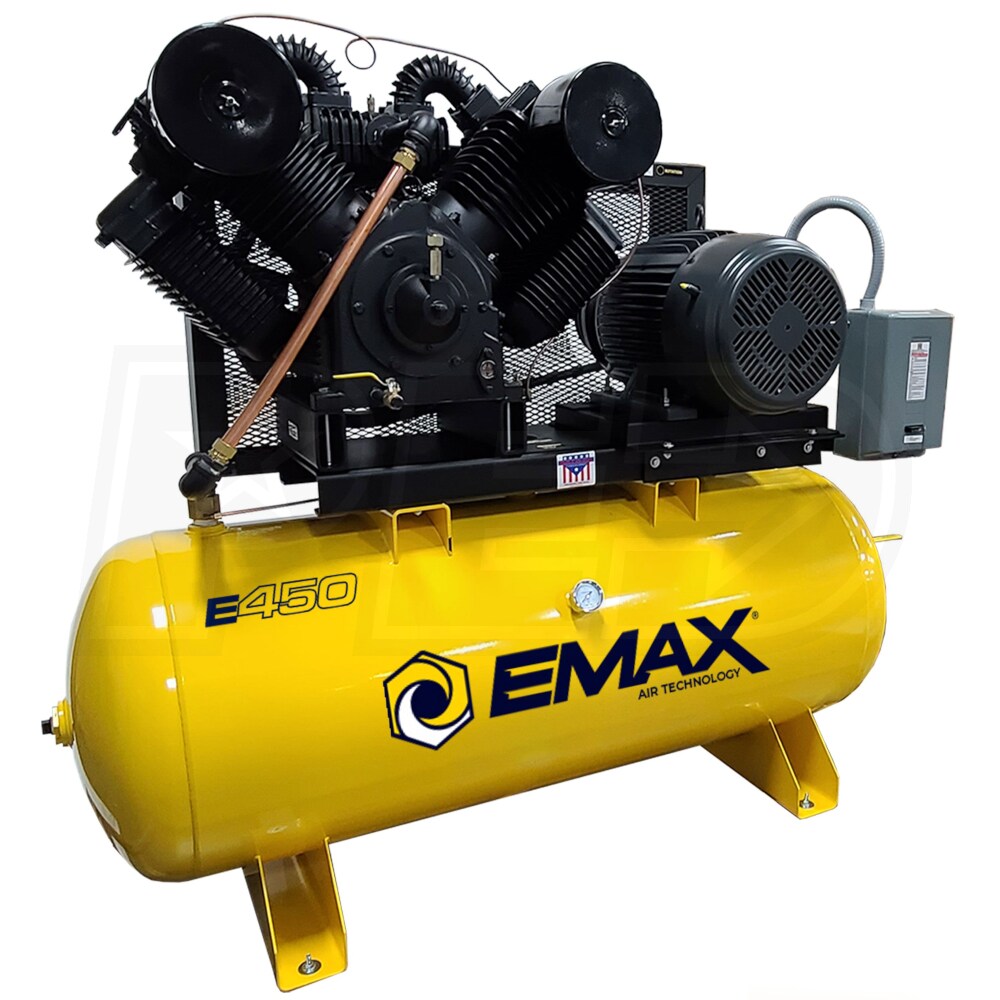

EMAX Industrial Plus 25-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)

EMAX Industrial Plus 25-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: EP25H120V3-208
(Based on expert analysis, manufacturer ratings and customer reviews)
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews (2)
Write A Review
$5,699.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Extended Warranty
Excludes CA

Free Shipping$5,699.00Buy Now
Free Freight$5,699.00Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
89
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
89 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Piston Series Two-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • 25-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance

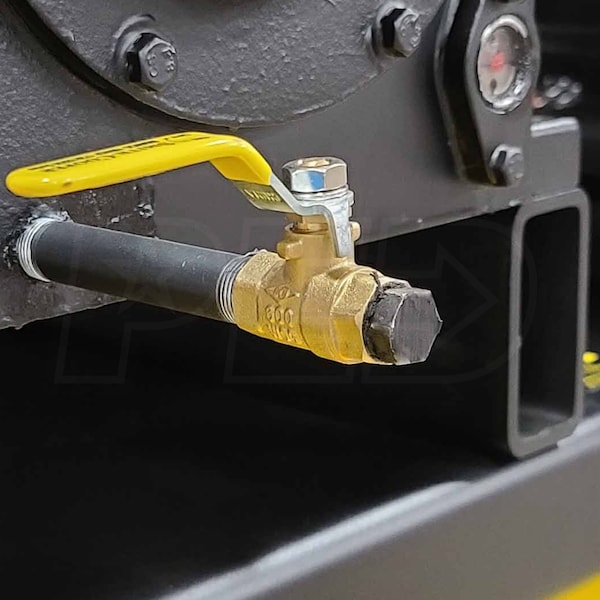

  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Factory Warranty On Air Compressor Pumps & Tanks
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
89
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated

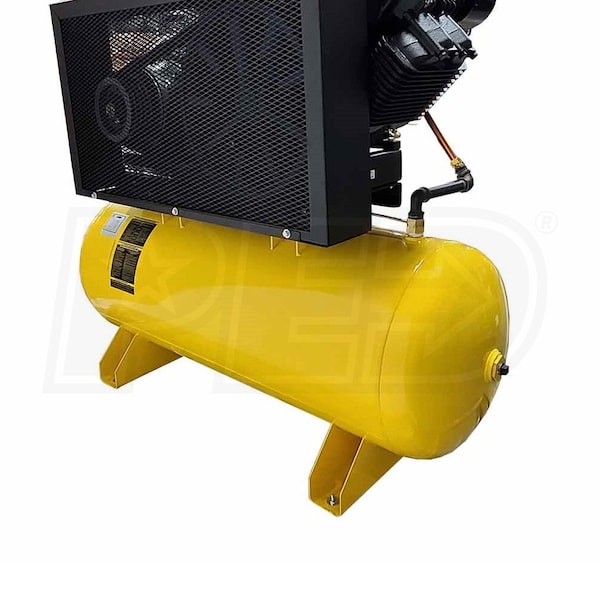

Tank
Tank Size
120 Gallons
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
UL
Weight
1636 Pounds
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Consumer Warranty
5 Years
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
89
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
89 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Piston Series Two-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • 25-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Factory Warranty On Air Compressor Pumps & Tanks
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
89
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
UL
Weight
1636 Pounds
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Consumer Warranty
5 Years
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
89
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
UL
Weight
1636 Pounds
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Consumer Warranty
5 Years
Power Type
Electric
