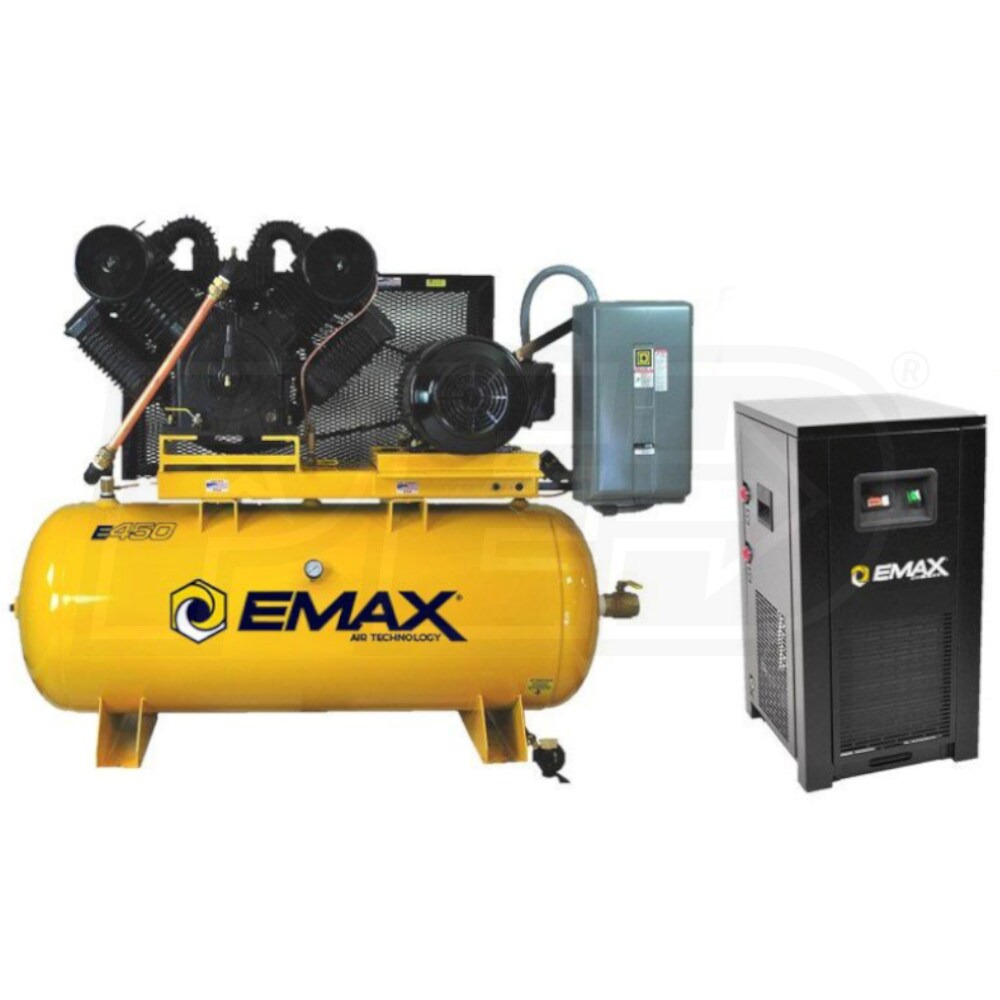

EMAX Industrial Plus 20-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)

EMAX Industrial Plus 20-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: 815002014111
$6,999.00

Backordered
Estimated Availability February 17, 2020
Notify Me When In-Stock
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Voltage
Dryer
Free Shipping$6,999.00Buy Now
Free Freight$6,999.00Visit Site
Backordered
Estimated Availability February 17, 2020
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
82
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Air Dryer CFM
115
Grade
Commercial
CFM
82 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Air Dryer CFM
115
Features
Features
  • Piston Series Two-Stage Cast Iron Pump With Built-In Inter-Cooler & After-Cooler
  • Dual control design allows for automatic or continuous run up to 82 CFM
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Premium 115 CFM Refrigerated Dryer With Built-In Coalescing Filter
  • Drier air prolongs the life of your machinery & tools; designed for maximum performance & efficiency
  • Built-in pre-filter with replaceable .005 micron filter & active coalescing filter with replaceable .001 micron filter
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Oil gate valve & sight gauge provide quick, clean oil changes
  • 20-HP TEFC Industrial Grade Motor
  • Low 1750 RPM design extends useful life, includes pre-wired magnetic starter
  • Belt tension adjuster for fast, easy "one turn" design
  • 120 Gallon ASME Receiver With Auto Tank Drain
  • 110V dual timer controlled drain eliminates daily maintenance
  • 5 year Limited Warranty on air compressor pump & tank
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
35 Amp Breaker
Engine
HP
20
Pump
CFM
82
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Air Dryer
Air Dryer CFM
115
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Post-Filter
Yes
Overview
Weight
1636 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Power Type
Electric
Additional Model Numbers
EP20H120V3PKG-460, 815002014111
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
82
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Air Dryer CFM
115
Grade
Commercial
CFM
82 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Air Dryer CFM
115
Features
Features
  • Piston Series Two-Stage Cast Iron Pump With Built-In Inter-Cooler & After-Cooler
  • Dual control design allows for automatic or continuous run up to 82 CFM
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Premium 115 CFM Refrigerated Dryer With Built-In Coalescing Filter
  • Drier air prolongs the life of your machinery & tools; designed for maximum performance & efficiency
  • Built-in pre-filter with replaceable .005 micron filter & active coalescing filter with replaceable .001 micron filter
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Oil gate valve & sight gauge provide quick, clean oil changes
  • 20-HP TEFC Industrial Grade Motor
  • Low 1750 RPM design extends useful life, includes pre-wired magnetic starter
  • Belt tension adjuster for fast, easy "one turn" design
  • 120 Gallon ASME Receiver With Auto Tank Drain
  • 110V dual timer controlled drain eliminates daily maintenance
  • 5 year Limited Warranty on air compressor pump & tank
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
35 Amp Breaker
Engine
HP
20
Pump
CFM
82
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Air Dryer
Air Dryer CFM
115
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Post-Filter
Yes
Overview
Weight
1636 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Power Type
Electric
Additional Model Numbers
EP20H120V3PKG-460, 815002014111
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
35 Amp Breaker
Engine
HP
20
Pump
CFM
82
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Air Dryer
Air Dryer CFM
115
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Post-Filter
Yes
Overview
Weight
1636 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Power Type
Electric
Additional Model Numbers
EP20H120V3PKG-460, 815002014111
