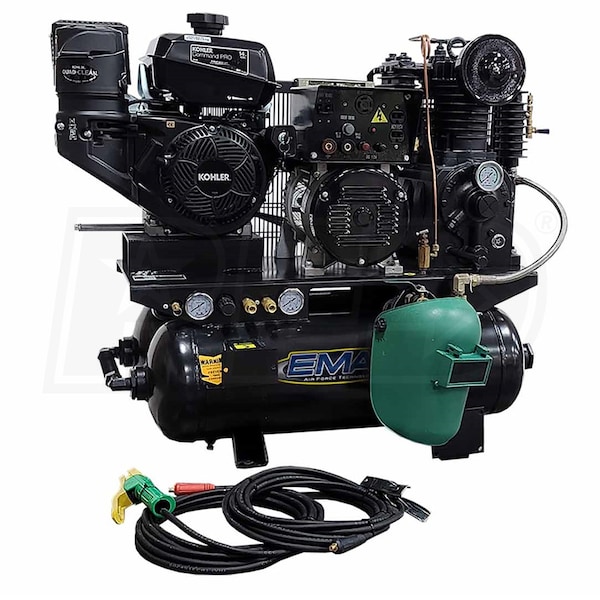

EMAX 14-HP 20-Gallon 3-In-1 Pressure Lubricated Gas Wheelbarrow Air Compressor, Generator & Welder w/ Kohler Engine

Model:

EGES14020T

Write A Review
$5,233.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX 14-HP 20-Gallon 3-In-1 Pressure Lubricated Gas Wheelbarrow Air Compressor, Generator & Welder w/ Kohler Engine
EMAX 14-HP 20-Gallon 3-In-1 Pressure Lubricated Gas Wheelbarrow Air Compressor, Generator & Welder w/ Kohler Engine
Model: EGES14020T
$5,233.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Wheel Barrow

Engine Brand

Kohler

CFM

17

Tank Size

20

  • EMAX 3-In-1 Piston Air Compressor / Generator / Welder
  • For commercial & industrial applications on a jobsite or on the go
  • 5 HP Two-Stage Cast Iron Piston Air Compressor Pump
  • Pressure-lubricated designed provides added protection
  • Industrial disc valves for increased life & simple maintenance
  • Pump takes slightly under 1 quart of oil
  • 5000 Watt (6000 Watt Surge) Generator
  • Great for providing power on the job
  • (2) 120V 20-Amp Outlets & (1) 120/240V 30-Amp Twistlock Outlet
  • 190-Amp DC Stick Welder
  • Standard 25' leads for ease of use
  • 14 HP Kohler Command Pro Engine w/ Electric Start*
  • Forged-steel crankshaft & cast-iron cylinder liner
  • Quad-Clean™ all-season four-stage cyclonic air filter
  • 20-Gallon Air Storage
  • Twin 10-Gallon ASME storage tanks
  • Also Includes
  • Built-in regulator, Liquid filled gauges & Quick disconnect
  • (2) 1/4" Air Fittings for air hoses (Air Hoses Not Included)
  • 5-Year Parts Warranty
  • *Note - Includes Starting Battery
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EGES14020T
specs product image PID-100808
General Information
Product Category
Air Compressor - Portable
Engine
HP
14
Auto Idle
No
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
780 Pounds
Certification
ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
34 Inches
Product Width
42 Inches
Product Height
38 Inches
Power Type
Gas
UPC
815002017013
