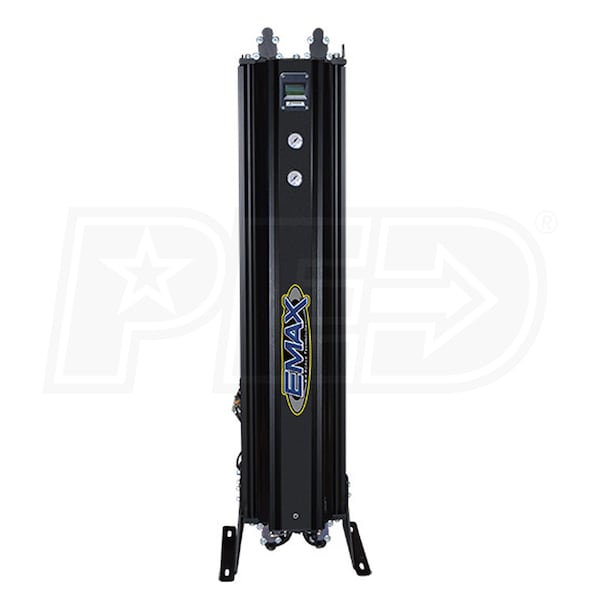

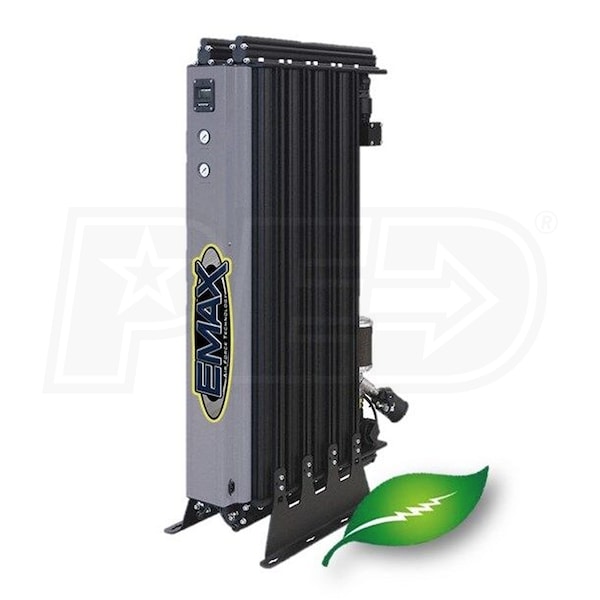

EMAX Regenerative Desiccant 115-240V-1 Refrigerated Air Dryer (25 CFM)
Model:
EDRDES1150025
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Refrigerated
Dryer Voltage
115/240V 1-Phase
Air Dryer CFM
25
- State Of The Art Technology Air Dryer
- Removes 100% of any moisture in the air
- Ultra-quiet at only 70 decibels
- Reduces corrosion and provides clean, dry air for your system
- 115-240V Single Phase
- Delivers low power consumption
- CE/UL approved with Environmental Protection IP65 (NEMA12)
- Extreme Low Dew Point Pressure
- -40F and by appropriate de-rating -100F PDP
- Inlet pressure: Min 60 / Max 230
- Ambient air temp: Min 34F / Max 122F
- Built-In Air Filters
- 0.005 pre-filter, 0.01 coalescing filter and 0.05 after filter
- Removes dust, dirt, oil and water particles from air supply
- Programmable Controller
- Remote start-stop connection
- Easy to read large pressure gauges
- Automatic Drain System
- Accumulated water is removed without wasting air
- Simple, low maintenance and quick connections
- Small Footprint & Easy To Install
- Can be installed virtually anywhere!
- Mount to the floor or wall with adjustable mounting brackets
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EDRDES1150025
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115/240V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
25
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
230
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Alarm Lights
No
Regenerative
Yes
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Dessicant
Yes
Overview
Product Category
Air Compressor Accessories
Weight
92 Pounds
Certification
CE, UL, IP65 - NEMA12
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
14 Inches
Product Width
15 Inches
Product Height
44 Inches
Power Type
Electric
UPC
815002016559
