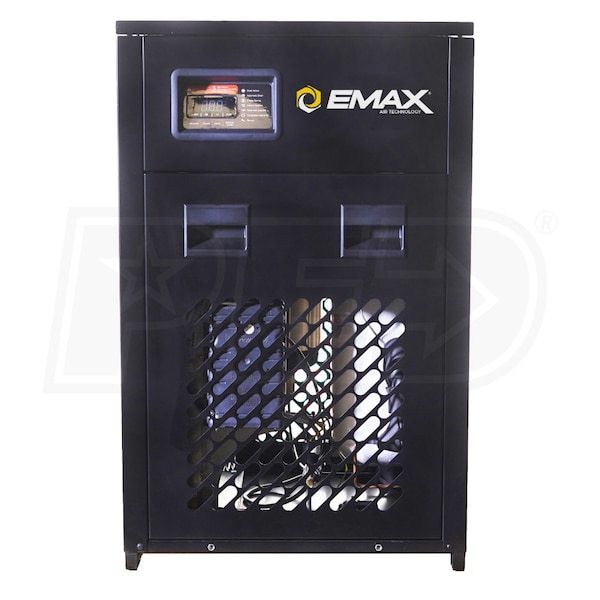

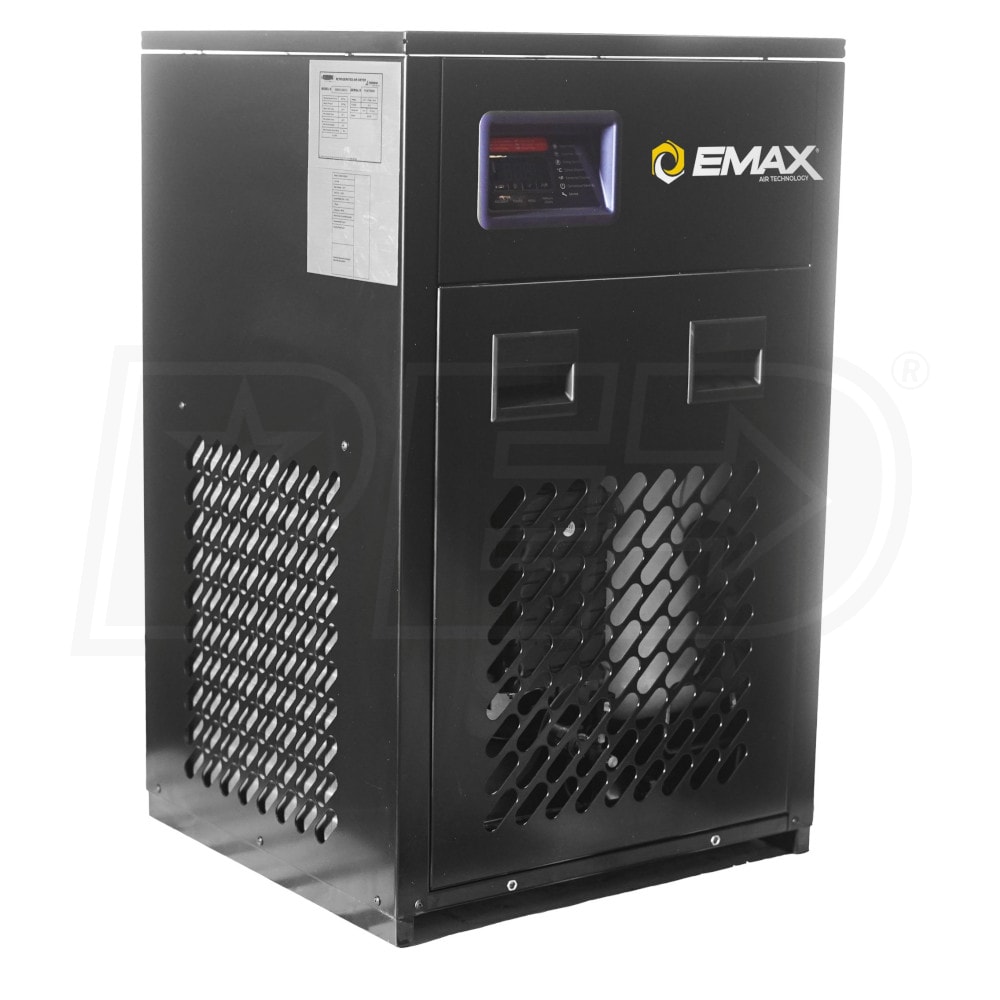

EMAX Industrial 115V-1 Refrigerated Air Dryer 15HP - 20HP (115 CFM)

Model:

EDRCF1150115

Write a Review
$3,880.65
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-7 Business Days

Free Shipping$3,880.65Buy Now
Free Freight$3,880.65Visit Site
EMAX Industrial 115V-1 Refrigerated Air Dryer 15HP - 20HP (115 CFM)
EMAX Industrial 115V-1 Refrigerated Air Dryer 15HP - 20HP (115 CFM)
Model: EDRCF1150115
$3,880.65
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

115


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Premium Industrial 115 CFM Refrigerated Air Dryer
  • Chills the air to condense & remove moisture; runs on 115 Volt, single phase, 11 Amp power
  • 230 PSI maximum; maximum inlet temp: 140°F; 37°F - 50°F dewpoint; designed for 1-1/2" pipe
  • Maximum ambient temperature: 122°F; for use with compressors that do not have aftercoolers

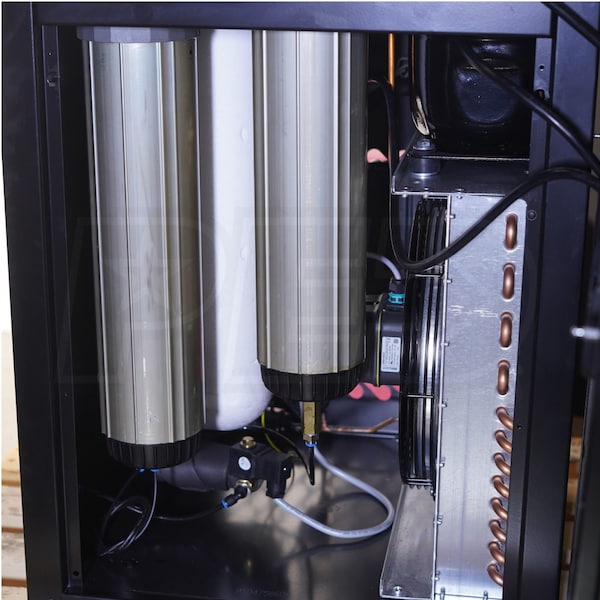

  • 5 Micron Pre-Filter
  • Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
  • 1 Micron Active Coalescing Filter
  • Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
  • Refrigerated Air Inlet Inner Cooler
  • Trouble-free high temperature cooling for consistent, dry air
  • Automatic Drain System
  • Eliminates the need for daily maintenance
  • Outlet Air Baffle Heater
  • Prevents condensation on outlet air piping

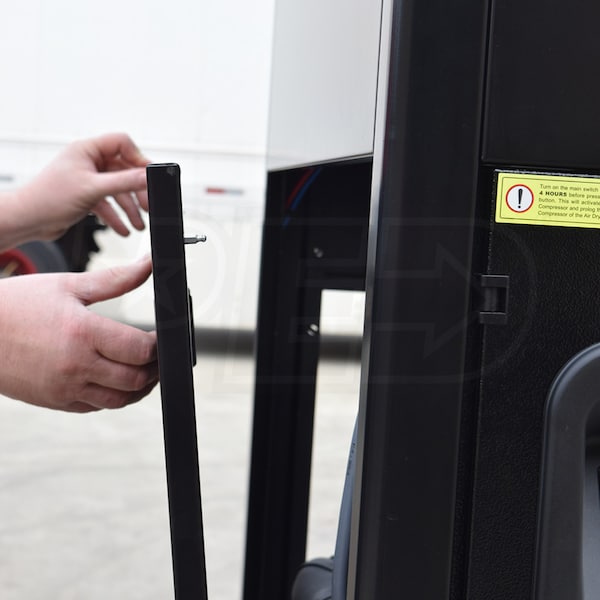

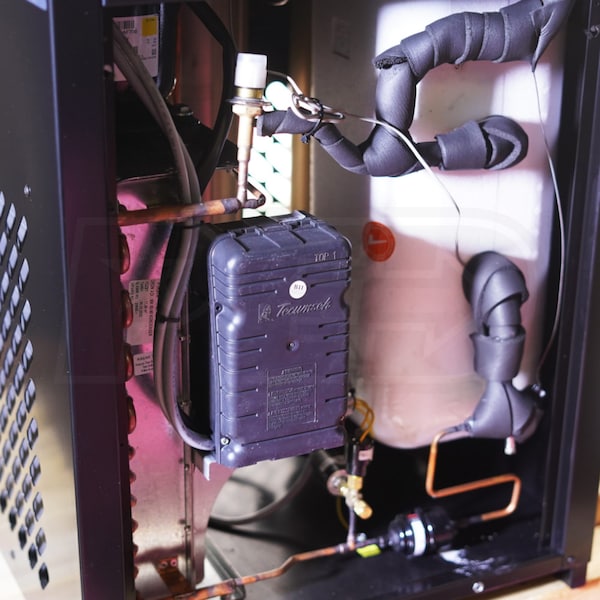

  • Side Mounted Condenser & Fan Motor
  • Easy to reach & service through the cabinet doors- no screws to slow you down
  • Uses environmentally friendly 134A refrigerant
  • Heavy Duty Steel Cabinet & Safety Shut-Off Valve
  • Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
  • 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EDRCF1150115
specs product image PID-78166
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
115
Max PSI
230
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
Overview
Weight
180 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
26 Inches
Product Width
23 Inches
Product Height
36 Inches
Power Type
Electric
UPC
815002013343
