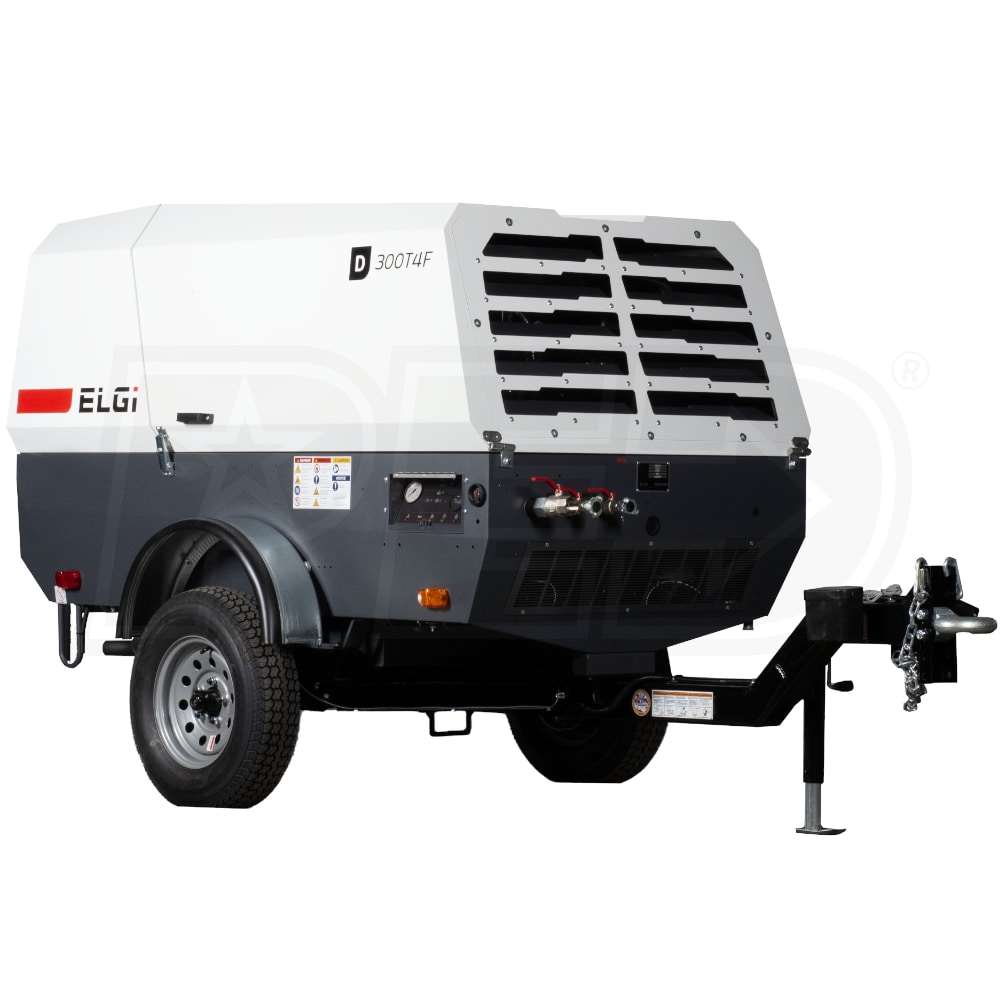

ELGi D300T4F - 73.6-HP Trailer Mounted Diesel Rotary Screw Air Compressor (290 CFM)

Model:

D300T4F

Write A Review
$41,855.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

ELGi D300T4F - 73.6-HP Trailer Mounted Diesel Rotary Screw Air Compressor (290 CFM)
ELGi D300T4F - 73.6-HP Trailer Mounted Diesel Rotary Screw Air Compressor (290 CFM)
Model: D300T4F
$41,855.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Rotary Screw Air Compressors

Engine Brand

Kohler

CFM

290

Tank Size

0

  • NOTE - Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • ELGi D300T4F Trailer Mounted Diesel Rotary Screw Air Compressor
  • A versatile compressor for use on every jobsite

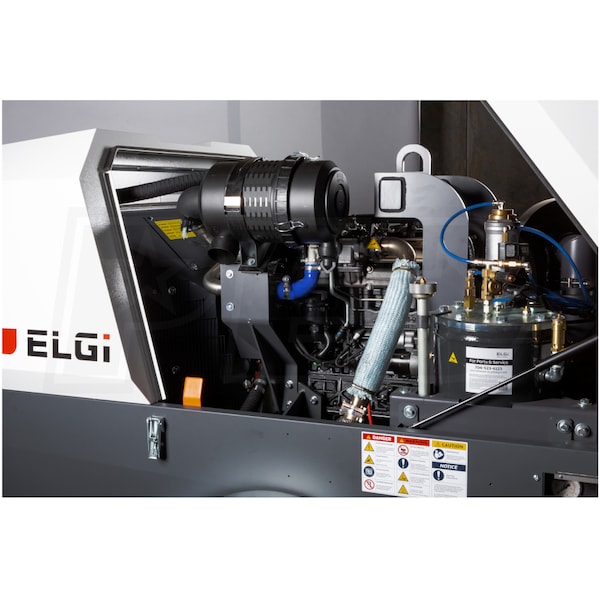

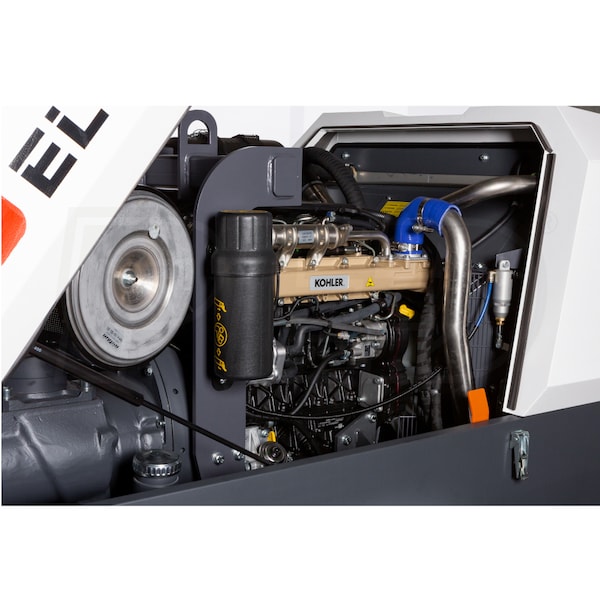

  • 2482cc Kohler KDI 2504 TCR Diesel Engine (Tier 4 Final)
  • 4-Cylinder, turbo intercooler, water-cooled design w/ Electric Start (Battery Included)
  • Quiet and efficient design, no DEF or DPF required
  • 24-Gallon Steel Fuel Tank
  • Provides over 9-hours of runtime on a single tank of fuel
  • ELGi Direct Drive, Twin Screw Rotary Air End
  • Produce 290 CFM @ 100 PSI (Max)
  • Low-speed (2600 RPM) for reduced heat and helps extend bearing life
  • (2) 3/4" & (1) 1" Air Outlets
  • Compatible with most air tools on the market

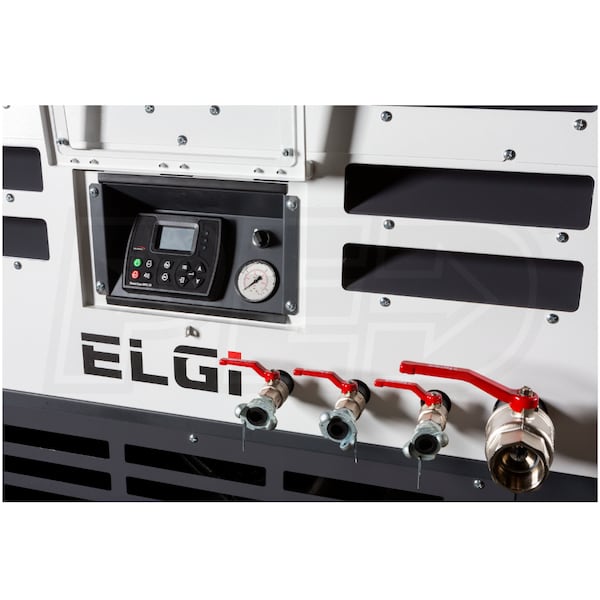

  • Digital Controller & Intelligent Start / Stop System
  • Makes this compressor easy to operate and maintain
  • Helps prevent cold-starting and blowback
  • Auto Load / Unload Feature
  • Prevents accidental loaded shutdown and blowback
  • Spin-On Compressor Oil Filters
  • Helps extend the life of the air end
  • Curbside Controls & Service Valves
  • Keeps the operator in a safer location during operation

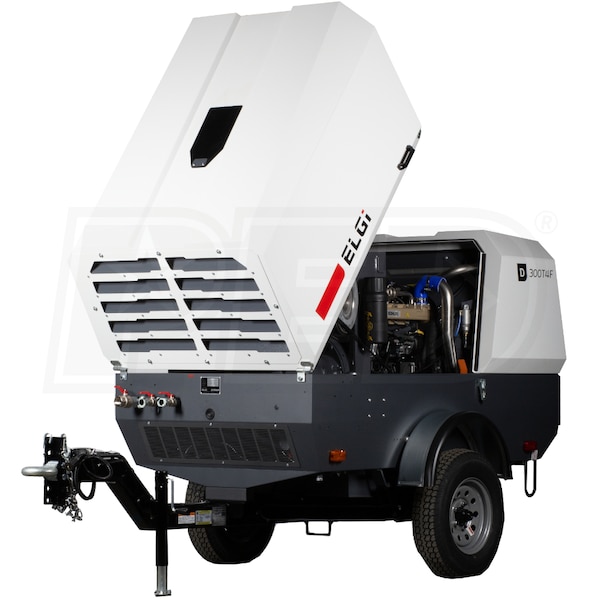

  • Fully-Enclosed, Open-Canopy Design
  • Metal enclosure provides added protection to your compressor
  • Allows for easier access to service parts; Doors can be locked security
  • Single-Axle Trailer
  • Includes running gear and pintle hitch
  • Galvanized flex-edge fenders for safter transportation
  • 5-Year/ Unlimited Hour ELGi Air End Warranty
  • 3-Year / 4000-Hour Kohler Engine Warranty
  • 1-Year / 2,000-Hour Full Machine Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

D300T4F
specs product image PID-143455
Engine
HP
73.6
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
24
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
290
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
100 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Air Tools
NPT
3/4"
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Portable
Weight
3395 Pounds
CA (CARB) Compliant
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
144 Inches
Product Width
66 Inches
Product Height
67 Inches
Power Type
Diesel
