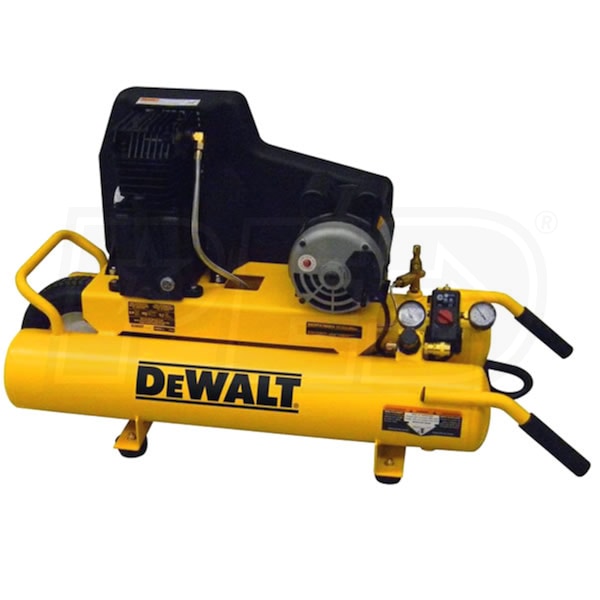

DeWalt 1.9-HP 8-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (120/240V 1-Phase)

Model:

DXCMTA1980854

Write A Review
$1,078.19
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from DeWalt
Shipping to60601

DeWalt 1.9-HP 8-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (120/240V 1-Phase)
DeWalt 1.9-HP 8-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (120/240V 1-Phase)
Model: DXCMTA1980854
$1,078.19
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Wheel Barrow

CFM

7

Tank Size

8

  • Heavy Duty, Dual Voltage Induction Motor
  • Wired for 120-volt, can be converted to 240-volt
  • Cast Iron Twin Cylinder Pump
  • Cast iron cylinder body is thermally stable
  • 12" Cast Iron Balanced Flywheel
  • Provides durable & reliable performance
  • Aluminum Head & Valve Plate
  • Sturdy and light weight
  • 155 PSI Maximum Pressure
  • Delivers 7 CFM at 40 PSI & 5.7 CFM at 90 PSI
  • Powers a wide variety of tools
  • Center Mounted Flat-Free Tire
  • Moves easily over rough terrain
  • Bar handle protects the wheel & aids loading & transport
  • Central Controls
  • Easy to see high flow regulator, tool & tank pressure gauges
  • Clear access to quick connect air hose coupler
  • Braided Steel Transfer Tube
  • Greater flexibility prevents unwanted leaks
  • 2 year Factory Warranty on pump; 1 year all other parts
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXCMTA1980854
specs product image PID-15802
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Engine
HP
1.9
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
7
CFM Rated @
40 PSI
CFM @ 40 PSI
7
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
160 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45.75 Inches
Product Width
20 Inches
Product Height
29 Inches
Power Type
Electric
UPC
846212009383
