DeWalt 3.7-HP 60-Gallon Single-Stage Air Compressor w/ Monitoring System (208-230V 1-Phase)
Model:
DXCM602A.COM
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
11.5
Tank Size
60

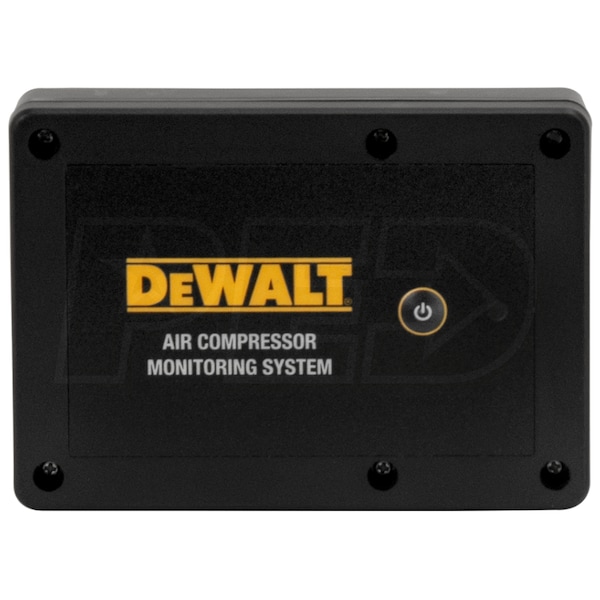

- Includes Air Compressor Monitoring System
- Helps you protect your air compressor investment
- Compatible w/ Android 11 or later & iOS Apple 14.8 or late
- Provides Important Data & Automatic Maintenance Reminders
- Easy to use dashboard for monitoring your compressor
- Hours until oil change, filter replacement and when to check belt tension
- High-Performance 208/230V Single-Stage Compressor
- Delivers over 2x longer air tool run time with 30% higher PSI
- Produces 13.4 CFM @ 40 PSI / 11.5 CFM @ 90 PSI; 175 PSI max
- Durable 3.7-HP Belt-Drive Induction Motor
- Better power transfer and longevity than direct drive units
- Poly-v pulley and drive belt provides smooth operation with less vibration
- Cast Iron Twin Cylinder Oil Lubricated Pump
- Aluminum head and valve plate help dissipate heat
- Reliable stainless reed valves and automotive-style ball bearings
- High-grade stainless-steel valves with O-ring seals to eliminate oil leaks
- High-Efficiency Aluminum Flywheel
- Balanced for best performance and durability
- Allows maximum airflow and lower start-up amps due to less starting
- 60-Gallon ASME Tank
- Tie down holes on platform sides to secure unit when transporting
- Manual tank drain for routine draining prevents air contamination and rust
- Convenient Controls
- Equipped with pressure gauge and on/off switch
- Perfect for a small shop, automotive enthusiast or serious DIY user
- 1-Year Limited Manufacturer Warranty
- 2-year limited warranty on pumps
- 1-year limited warranty on all other components
- Made In U.S.A. w/ Global Materials
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCM602A.COM
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
17
Recommended Breaker
25 Amp Breaker
Engine
HP
3.7
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.5
CFM Rated @
90 PSI
CFM @ 40 PSI
13.4
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
200 Pounds
Certification
ASME, CSA
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
24 Inches
Product Height
78 Inches
Power Type
Electric
UPC
045564645892
