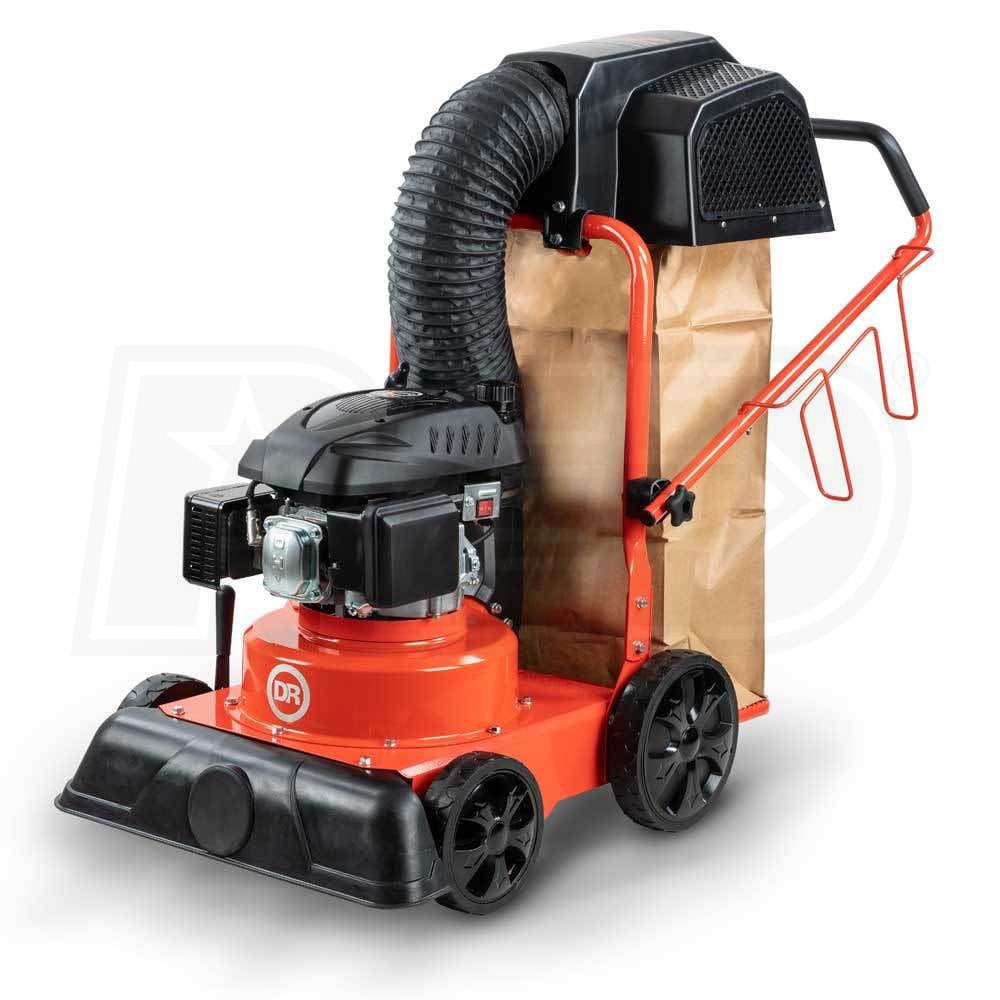

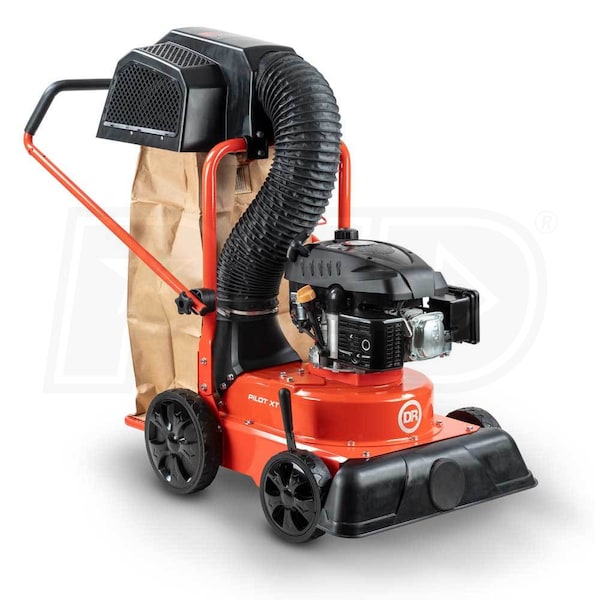

DR PILOT XT (24") 4.3HP Leaf & Lawn Direct Bagging Walk-Behind Vacuum

Model:

WL31004DMN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
DR PILOT XT (24
DR PILOT XT (24") 4.3HP Leaf & Lawn Direct Bagging Walk-Behind Vacuum
Model: WL31004DMN
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Mid-Grade

Style

Chipper / Shredder / Vacuum

Surface Area

Mid-Grade 1/4 - 1 Acre

Function

Leaf Collection & Reduction



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • PILOT XT Leaf & Lawn Push Walk-Behind Vacuum
  • Picks up leaves, grass clipping, twigs, nuts & chip branches
  • Perfect for smaller properties and landscaped areas
  • DR HP 4.3HP / 173cc OHV RV170 Engine
  • 6.6 ft-lbs. high torque delivers high performance
  • Dual element air filter protects the engine from debris
  • Wide 24-Inch Vacuum Path
  • Collect up to 3 cu. ft. (3 bushel / 50 lbs.) of lawn debris
  • Powerful vacuum force creates more compression and suction power
  • 4 Position Adjustable Intake Height
  • Snout height adjuster handle adjusts from 1" to 4"
  • 1" minimum off the ground for maximum vacuum power
  • 4" maximum for less suction, or to create clearance for uneven terrain
  • All Steel 5 Blade Impeller
  • Covered with a Lifetime Warranty
  • Serrated fins aggressively mulch and reduce collected material 10:1

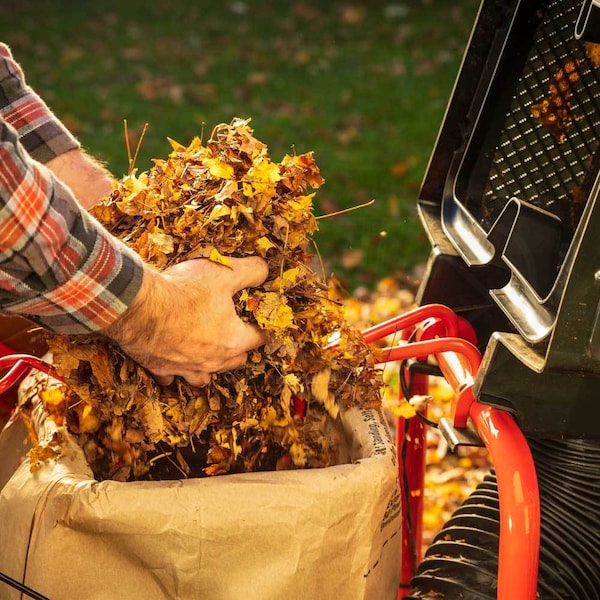

  • Direct-Bagging
  • EZ-bagger cover and support ring hold bag firmly into place
  • Uses standard 30-gallon paper leaf bags and built-in bag caddie holds 10 bags
  • Durable Steel Frame w/ Never-Flat Wheels
  • 8" front wheels for easy rolling, even on challenging terrain
  • Ergonomic handlebar with foam grip adjusts from 32" to 42"
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

WL31004DMN
specs product image PID-138931
Engine
Engine Brand
DR
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
4.3 HP
CC
173 CCs
Fuel Tank Size
0.26 Gallons
Engine Cylinders
1 Cylinder
Torque
6.6 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Overview
Product Category
Leaf Vacuum
Weight
105 Pounds
CARB Compliant
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
52 Inches
Product Width
26 Inches
Product Height
52 Inches
Power Type
Gas
UPC
843530008098
Vacuum
Removable Hose
No
Towing
Towable
No
Drive
Drive System
Push
Impeller
Impeller Material
Steel
Wheels
Front Tire Size
8 x 2 Inch
Rear Tire Size
10 x 2 Inch
Tire Type
Plastic Wheels
