Cub Cadet Z-Force S48 (48") 24HP Kohler Zero Turn Mower w/ Steering Wheel
Model:
17BSDGHB010
+
Share This Product
Features

Cub Cadet Z-Force S48 (48") 24HP Kohler Zero Turn Mower w/ Steering Wheel
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

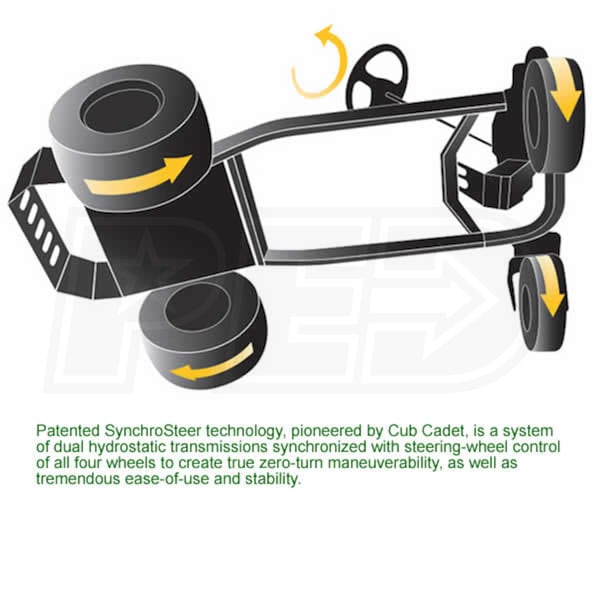

- Zero Turn Maneuverability With Steering Wheel Control
- Delivers car-like ease of operation
- Handles 360° zero turns and straightaways with ease
- 24HP/725cc Kohler 7000 Series V-Twin 4-Cycle OHV Engine
- Dual-seal air filter keeps debris out of the engine
- Fully pressurized lubrication with spin-on oil filter
- Dual Hydro Gear ZT2800 Hydrostatic Transmissions
- 10cc pumps and 16cc wheel motors on each drive wheel
- No shifting - just push the foot pedal and go
- Easy-to-use cruise control
- 48-Inch Fabricated (Welded) Floating Mower Deck
- Heavy duty 11-gauge steel w/ 3 blades and greaseable spindles
- 13-position, spring-assisted deck lift (lever operated)
- 2 greaseable heavy-duty gauge wheels
- Patented SmartJet™ high-pressure deck washing system
- Fully Welded 12-Gauge Steel Frame
- E-Coat corrosion defense system for protection & durability
- 18-inch high-back seat w/ armrests
- Foot pedal parking brake w/ mechanical locking
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
17BSDGHB010

Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24 HP
CC
725 CCs
Fuel Tank Size
2.8 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
750 Pounds
Consumer Warranty
3 Years
Product Length
70.0 Inches
Product Width
51.5 up/56.0 down Inches
Product Height
38.0 Inches
UPC
043033575589
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
13 Positions
Cutting Width
48 Inches
Cutting Height
1.0-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT2800 Hydro Drive
Accessories
Rear Bagger
Sold Separately
Engine Guard
No
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Front Bumper
No
Trailer Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
13 x 5 Inch
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
Reviews
(4)
Cub Cadet 17BSDGHB010 Reviews & Ratings
Belt Eater
By KFed
Tennessee
Review Posted 06/13/2024
Upon buying this unit late 2020, 3 years in and I have had nothing but issues with the drive belt being thrown. From October 2023 till now at the time of review, it is back into service for the drive belt for time # 5! Authorized dealer/service blames dirt and or grass to cause the drive belt to come off the pulleys. Really?! So then why no issues for the first 3 years of operation? I'd love to get a better answer than that on a $5k mower! Customer service and warranty has done a good job of brushing me off...
KFed Does Not Recommend This
Was this review helpful?
Rating Breakdown
5/5
3/5
4/5
4/5
Great Mower, Great Engine
By Gary M.
Apex, North Carolina
Review Posted 09/05/2018
I have a 2-year-old version of this mower so I thought I'd pass my 2 years worth of experience and issues. The mower is well built with some good thick metal used in the mower deck and frame. the Z-Turn option is great and is very useful at times, but with the blade engaged you will miss some grass and have to go back over it.
My one issue has been the drive belt has had issues from slipping off the pullies, I've had to replace it already. Also, the mower deck is a pain to get off and it's not a click and pull off deal. My rear tires are showing signs of dry rot and cracking so they'll need to be replaced by next season.
Overall it's a great well-built mower with a few glitches, but not like some of the others I've had that were no good.
My one issue has been the drive belt has had issues from slipping off the pullies, I've had to replace it already. Also, the mower deck is a pain to get off and it's not a click and pull off deal. My rear tires are showing signs of dry rot and cracking so they'll need to be replaced by next season.
Overall it's a great well-built mower with a few glitches, but not like some of the others I've had that were no good.
Gary M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
4/5
Pros:
I'd Buy It Again, Durable, Features, High Quality

Solved My Hill Issues!!
By Antonio N.
Waterbury, Connecticut
Purchased 07/06/2018 |
Review Posted 07/28/2018
Eliminated bringing additional walk-behind mowers to the site. Love this mower and it cut out the learning curve trying to use a lap bar mower and turf tear.
Antonio N. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Durable, Features, Exceeded Expectations, I'd Buy It Again
Cons:
Heavy

This Is A Very Nice Mower
By Rod R.
Morristown, Tennessee
Purchased 05/22/2018 |
Review Posted 06/20/2018
I am very pleased with my mower and will purchase from Mowers Direct again.
Rod R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, High Quality, I'd Buy It Again
