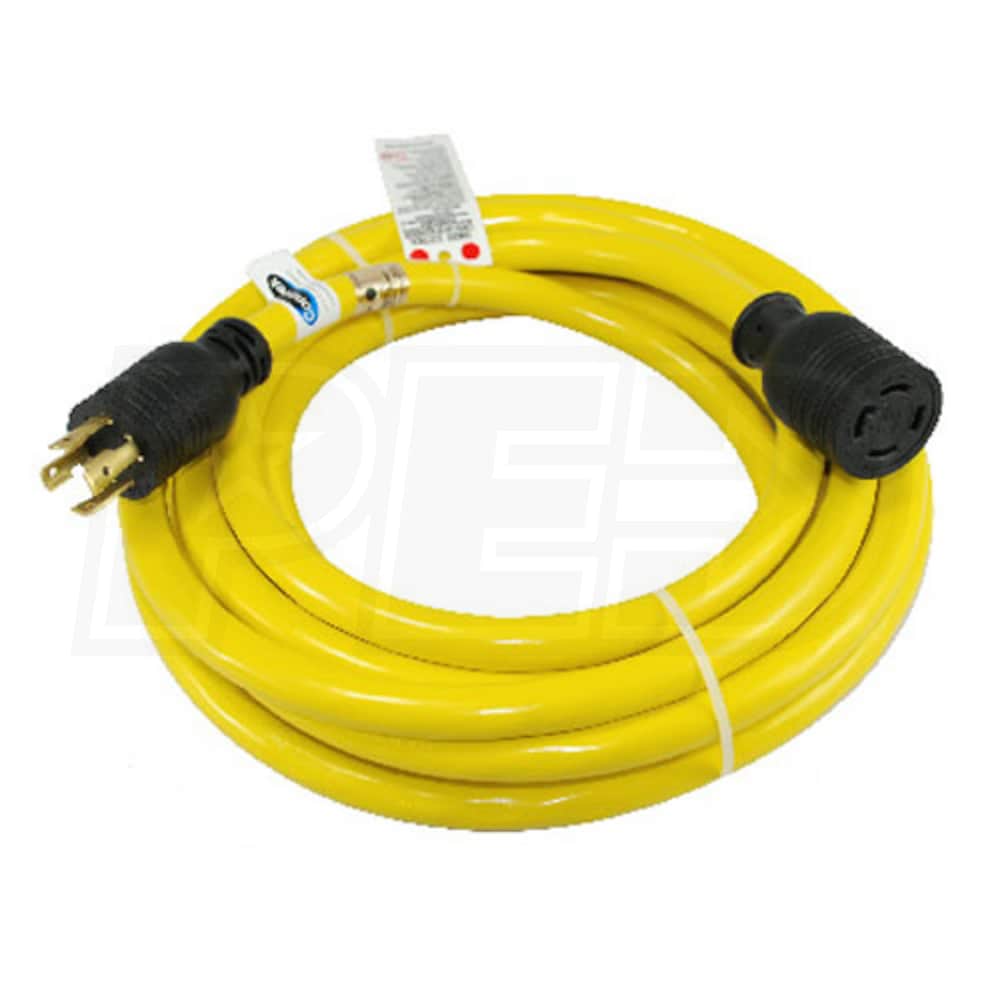

Conntek 30-Amp (4-Prong 50-Foot) Generator Power Cord

Conntek 30-Amp (4-Prong 50-Foot) Generator Power Cord
Our Price
Compare Prices
Shipping Info
Model: 20602-0
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (15)
Write A Review
$114.99
Ships in 2-5 Business Days
$114.99Buy Now
$114.99Visit Site
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 15
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+−
Features
Features
  • 30-Amp Generator Power Cord
  • Connect a generator and transfer switch with a single cord
  • Flexible Design
  • Maintains flexibility even in cold weather
  • 50-Foot Rubber Cord w/ Molded Ends
  • Male & female (L14-30) twistlock plugs
  • 120/240 Volt Cord (7500 Watts Max)
  • 10-gauge cord powers both 120V & 240V systems
  • 1-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Maximum Wattage
7500 Watts
Overview
Weight
20 Pounds
Consumer Warranty
1 Year
Product Length
600 Inches
UPC
883943002252
Plugs
NEMA L14-30R
1
Cord
Cord Length
50 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Features
Features
  • 30-Amp Generator Power Cord
  • Connect a generator and transfer switch with a single cord
  • Flexible Design
  • Maintains flexibility even in cold weather
  • 50-Foot Rubber Cord w/ Molded Ends
  • Male & female (L14-30) twistlock plugs
  • 120/240 Volt Cord (7500 Watts Max)
  • 10-gauge cord powers both 120V & 240V systems
  • 1-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Maximum Wattage
7500 Watts
Overview
Weight
20 Pounds
Consumer Warranty
1 Year
Product Length
600 Inches
UPC
883943002252
Plugs
NEMA L14-30R
1
Cord
Cord Length
50 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Specs
+−
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Maximum Wattage
7500 Watts
Overview
Weight
20 Pounds
Consumer Warranty
1 Year
Product Length
600 Inches
UPC
883943002252
Plugs
NEMA L14-30R
1
Cord
Cord Length
50 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Reviews
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
(15)
+−
Conntek 20602-0 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(2)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
Is the insulation on this cord rated at 300v or 600v?
Tim
from New Jersey
February 14, 2013
Answer
The cord is STW 10AWG and rated at 600V.
+−
My generator is 8kW. The manual calls for a "NEMA L14-30" cord, but the specs on this cord say "7500 watt max". Why? Will this cord work?
Richard
from Connecticut
December 05, 2012
Answer
The outlet on your generator that you will be plugging into will be 30A with a maximum wattage output capacity of 7500 watts. So, the overall generator output size doesn't matter.

All 30A connections, cords, inlet boxes and switches are rated for a maximum of 7500 watts due to Ohms Law (Amps x Volts = Watts).

30A cord ratings are 30A x 250V = 7500W

30A outlet ratings are 30A x 250V = 7500W

30A switch ratings are 30A x 250V = 7500W

Yes, this cord will work with your 8000 watt generator.
