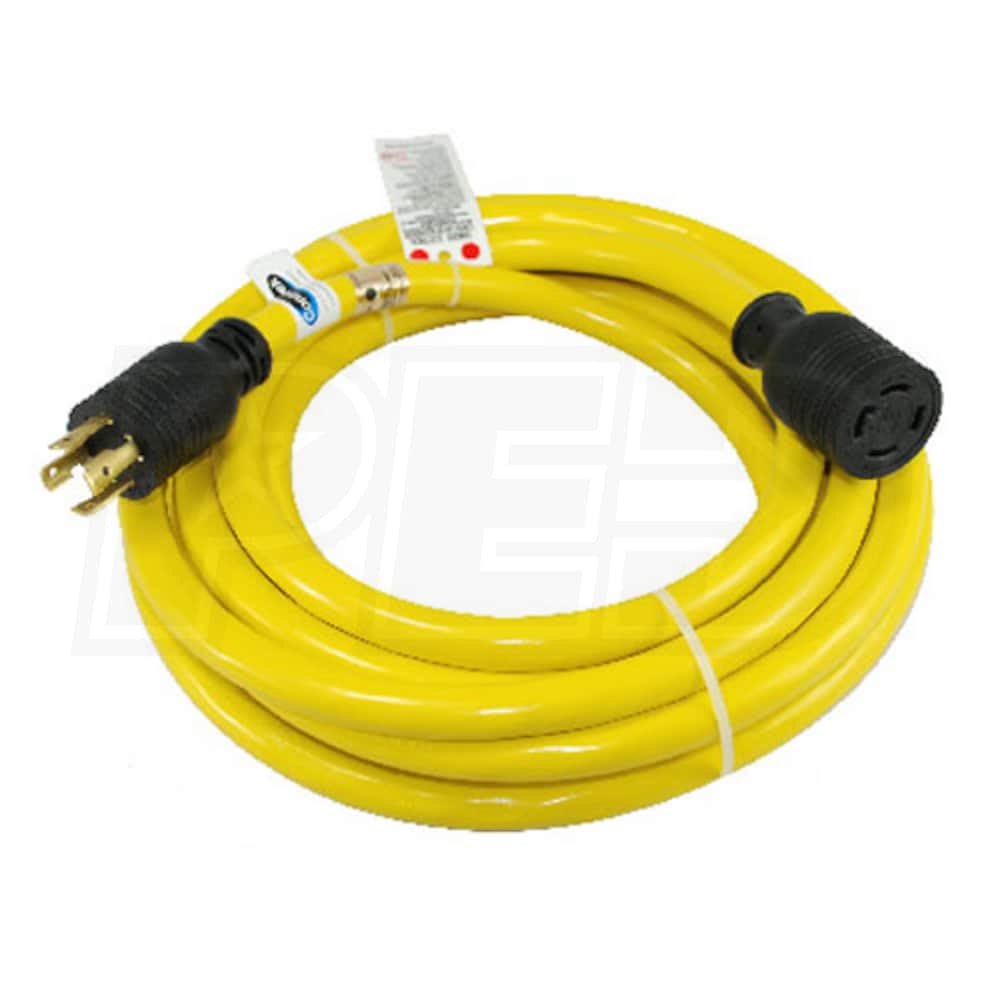

Conntek 30-Amp (4-Prong 25-Foot) Generator Power Cord
Model: 20601-0
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(9)
Write a Review
$64.99
Holiday Shipping Schedule
Holiday Schedule -
In-Stock
Ships Friday, Nov 27th
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
In-Stock $64.99Buy Now
In-Stock $64.99Visit Site
Share
  • Product Description
  • 9
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+
Features
Features
  • 30-Amp Generator Power Cord
  • Connect a generator and transfer switch with a single cord
  • Flexible Design
  • Maintains flexibility even in cold weather
  • 25-Foot Rubber Cord w/ Molded Ends
  • Male & female (L14-30) twistlock plugs
  • 120/240 Volt Cord (7500 Watts Max)
  • 10-gauge cord powers both 120V & 240V systems
  • 1-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
300 Inches
UPC
883943002245
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Features
Features
  • 30-Amp Generator Power Cord
  • Connect a generator and transfer switch with a single cord
  • Flexible Design
  • Maintains flexibility even in cold weather
  • 25-Foot Rubber Cord w/ Molded Ends
  • Male & female (L14-30) twistlock plugs
  • 120/240 Volt Cord (7500 Watts Max)
  • 10-gauge cord powers both 120V & 240V systems
  • 1-Year Limited Warranty
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
300 Inches
UPC
883943002245
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Specs
+
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
300 Inches
UPC
883943002245
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Reviews
(9)
+
Conntek 20601-0 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
My generator is 8kW. The manual calls for a "NEMA L14-30" cord, but the specs on this cord say "7500 watt max". Why? Will this cord work?
Richard
from Connecticut
December 05, 2012
Answer
The outlet on your generator that you will be plugging into will be 30A with a maximum wattage output capacity of 7500 watts. So, the overall generator output size doesn't matter.

All 30A connections, cords, inlet boxes and switches are rated for a maximum of 7500 watts due to Ohms Law (Amps x Volts = Watts).

30A cord ratings are 30A x 250V = 7500W

30A outlet ratings are 30A x 250V = 7500W

30A switch ratings are 30A x 250V = 7500W

Yes, this cord will work with your 8000 watt generator.
