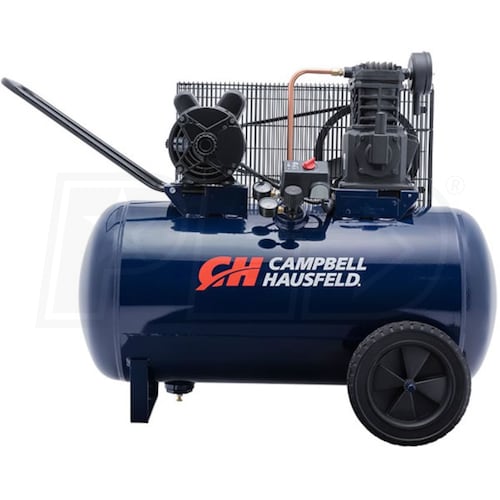

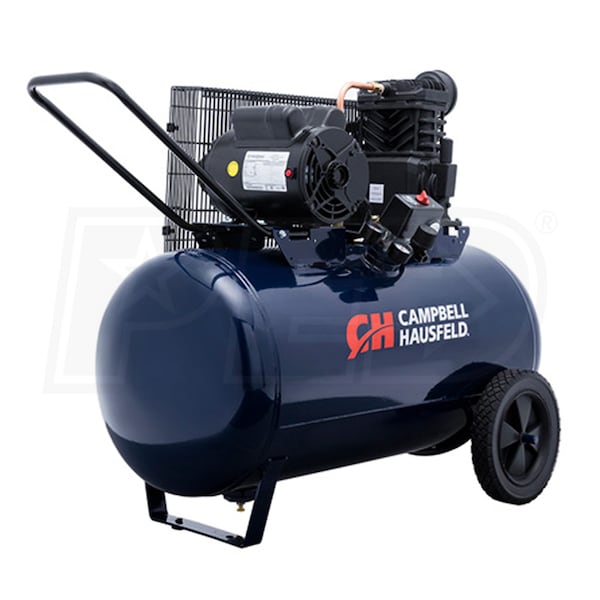

Campbell Hausfeld 3.7-HP 30-Gallon (Belt-Drive) Cast-Iron Air Compressor (230V 1-Phase)
Model:
VT6271
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
6
Model: MP284701AV
$25.00
Factory-Direct
$19.00
Only 3 In-Stock
Model: ST125312AV
$18.99
Factory-Direct
Model: M14025-6
$23.99
Factory-Direct
$84.97
Factory-Direct
$19.99
Factory-Direct
Features
Grade
Consumer
Style
Portable - Horizontal
CFM
10.2
Tank Size
30
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
VT6271
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
87
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15.7
Recommended Breaker
Consult Certified Electrician
Engine
HP
3.7
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.2
CFM Rated @
90 PSI
CFM @ 40 PSI
11.5
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
174 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
52 Inches
Product Width
24 Inches
Product Height
38.5 Inches
Power Type
Electric
UPC
045564103996
Reviews
(100)
Campbell Hausfeld VT6271 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.65
(100 Ratings)
5
(76)
(76)4(16)
(16)3(6)
(6)2(1)
(1)1(1)
(1)
So Far, So Good
By A.J.
Indiana
Purchased 12/30/2024 |
Review Posted 01/22/2025
I have not had any of the issues I read about these compressors, specifically in regards to shipping. The pressure gauge was fine when mine showed up. It was shipped by R+L Carriers, who did a great job. It's noise level is exactly what I expected. I don't consider it loud, but I do keep it in a separate room in my garage, so your opinion may differ. There were no air leaks whatsoever. I am a mechanic by trade, and this runs those types of air tools with ease. I'm sure for body work it would be on the small side. It does come with oil in it, it's just hard to see because it's clean. Seems like the best 30 gallon compressor for the money.
A.J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None
Leaks
By Ken V.
Illinois
Purchased 12/09/2024 |
Review Posted 01/07/2025
*Backflow valve was leaking - no thread seal and threads were stripped and needed to be repaired. *1/4 inch nipple connecting the control switch to the tank had no thread sealer and leaked. *Model not listed in instruction doc - was not clear if shipped with oil - tried to call ADC and they could not find the answer and gave me CH customer service - CH customer service never answered the phone - on hold over 30 minutes both times I tried to call them. *Drained oil and measured it to inspect and found a roll pin in the oil. *No break in procedure in manual. *Manual shows dipstick - no dipstick. *Shipping took 3 days longer than advertised.
Ken V. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We appreciate you taking the time to provide us with your feedback and certainly understand your aggravation. Your review will be forwarded to the manufacturer, informing them of the situation.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
3/5
2/5
3/5
3/5
Pros:
Price
Cons:
Bad Instructions
I Needed The Right CFM
By Motorcyclist
Colorado
Purchased 10/30/2024 |
Review Posted 01/07/2025
I bought this compressor for several reasons.
1. I needed a certain minimum amount of CFM and volume in order to blow out my sprinkle system.
2. I needed volume to to run a few air tools on to blow off saw dust from wood working projects.
3. Although this compressor isn't the cheapest option available it is one of the more affordable compressors that also received good customer reviews.
If the price was the same as when I bought it, I would buy this compressor again.
1. I needed a certain minimum amount of CFM and volume in order to blow out my sprinkle system.
2. I needed volume to to run a few air tools on to blow off saw dust from wood working projects.
3. Although this compressor isn't the cheapest option available it is one of the more affordable compressors that also received good customer reviews.
If the price was the same as when I bought it, I would buy this compressor again.
Motorcyclist Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
Heavy
High Quality Compressor
By William P.
Minnesota
Purchased 10/21/2024 |
Review Posted 12/05/2024
The compressor was delivered well mounted and packed on a pallet. This is an excellent compressor. The negatives are the oil sight glass is lacking. You cannot see the oil. The paperwork including the parts list is for other compressors and does not state if the oil is shipped already installed or not.
I added oil and never could tell from looking at the sight glass. I ended up having to drain it and tilt the compressor on its side and finally saw a movement in the oil level. From now on I am going to use a measuring cup to get the 8.5 oz exact.
I added oil and never could tell from looking at the sight glass. I ended up having to drain it and tilt the compressor on its side and finally saw a movement in the oil level. From now on I am going to use a measuring cup to get the 8.5 oz exact.
William P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price
Cons:
Bad Instructions
Support Silence
By J H.
Tennessee
Purchased 10/20/2024 |
Review Posted 11/12/2024
The compressor was delivered without any problems. However, the sight gauge for the oil is a pain. I have no idea how much oil it required or is in it now. They show a dip stick in the manual, but an email to customer service requesting information was ignored. It’s stressful when the company will not answer an easy question.
J H. Does Not Recommend This
Was this review helpful?
Rating Breakdown
1/5
5/5
4/5
4/5
Cons:
Bad Instructions
My First Campbell Compressor
By Cary P.
Virginia
Purchased 10/05/2024 |
Review Posted 10/29/2024
Took a couple days to get shipping moving but they gave several updates (to be expected). Arrived in pristine condition, courteous driver. I had already downloaded owner manual which also came with compressor. Glad I had previous experience setting up and operating this type equipment.
The concern was that neither manual matched the unit. Pictures were wrong. Capacities for needed oil were wrong, compressor was not even listed. Why does Campbell not keep their literature up to date? Ran through break-in without any problems. Power cord is a good fit. Bought for private use so should last a long time. Not real loud in open area shop and runs smoothly. Good price from Air Compressors Direct
The concern was that neither manual matched the unit. Pictures were wrong. Capacities for needed oil were wrong, compressor was not even listed. Why does Campbell not keep their literature up to date? Ran through break-in without any problems. Power cord is a good fit. Bought for private use so should last a long time. Not real loud in open area shop and runs smoothly. Good price from Air Compressors Direct
Cary P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
Bad Instructions
Good But,,,
By Kevin S.
Kansas
Purchased 06/11/2024 |
Review Posted 08/15/2024
Like the compressor, works very well with lots of com output. However, it has an oil leak that I can’t seem to find/stop?
Kevin S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
4/5
Pros:
Easy To Use
Cons:
Expensive
VT 6172 Compressor
By Robert B.
New York
Purchased 07/01/2024 |
Review Posted 07/27/2024
I received my compressor in perfect condition. It was on a skid but not secured to it. There were provisions to mount it but they were not used. The box and skid were in good condition. Shipping was fast. I did the 30 minute break in and checked the oil. All good here for now.
Robert B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, I39d Buy It Again, High Quality, Exceeded Expectations
Cons:
None, Packaging
Great Little Compressor
By Tom S.
Arkansas
Purchased 06/27/2024 |
Review Posted 07/24/2024
Great compressor, lots of air and built very well. This replaces a 30 year old 5 hp craftsman 33 gal that died due to tank corrosion. I believe this compressor will give me another 30 years of service. Thanks, Campbell Hausfield
Tom S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
Heavy
Great Compressor
By Israel M.
Indiana
Purchased 06/08/2024 |
Review Posted 07/02/2024
Builds air really fast and is super quiet compared to other brands I've owned.
Israel M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None
Product Q&A
(3)
Product Questions
Answered by Melissa, the Air Compressor Expert
Will this compressor work for a sandblaster that requires 7-10 cfm at 80 psi?
Laura
from Arizona
December 18, 2020
Is this made in USA? Most seem to be assembled here of overseas parts, my 15 year old one is made entirely here and that's what I want again
Phil Mathews
from Connecticut
November 27, 2015
Hello,
What size transformer would you recommend to operate the CH VT6271 on a 110v outlet?
I'm concerned about the starting watts when the compressor is refilling.
Chris Roualec
from
April 08, 2011
